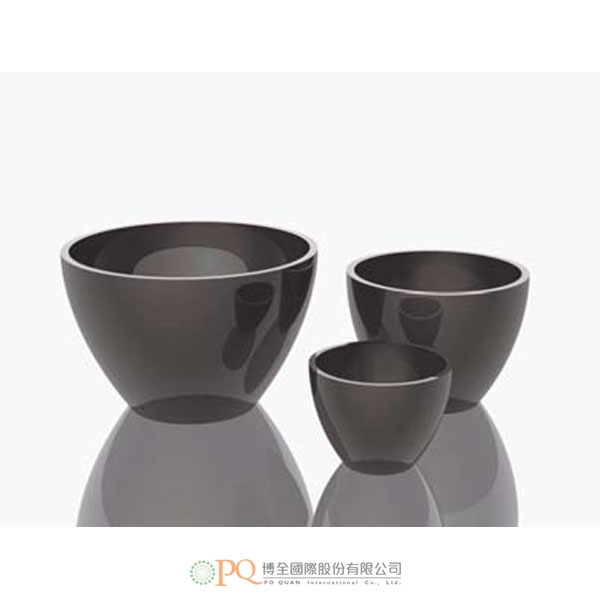

SIGRADUR G碗形坩堝

特殊形狀玻璃碳材料

Type	Volume ml	d mm	b mm	h mm	Wall Thickness mm
GAK 1	8	31	17	30	3
GAK 2	17	35	18	38	3
GAK 3	35	44	23	48	3
GAK 6	67	52	26	56	3
GAK 10	116	70	34	55	3
GAK 15	143	64	33	76	3
GAK 120	1220	130	62	122	3
GAK 300	3000	174	88	175	3

Crucibles and boats made of glassy carbon SIGRADUR® G are available in many standard forms. Applications are crucible liners for electron beam evaporation sources, crystal growth crucibles and melting crucibles. Further we can offer to you numerous cylindrical and conical standard crucibles and custom-made products


Type	Volume ml	d mm	b mm	h mm	Wall Thickness mm
GAK 1	8	31	17	30	3
GAK 2	17	35	18	38	3
GAK 3	35	44	23	48	3
GAK 6	67	52	26	56	3
GAK 10	116	70	34	55	3
GAK 15	143	64	33	76	3
GAK 120	1220	130	62	122	3
GAK 300	3000	174	88	175	3
