可攜式資料蒐集器

特點

• 具有4~24個通道的整合型暫態記錄器和資料蒐集系統
• 模組化的設計，最多安裝6個TPCE資料蒐集模組
• 已預先內置操作系統和數據蒐集程式TranAX
• 17” 高解析彩色螢幕
• 整機一體設計 (包括運輸箱)
• 觸控式面板和內置鍵盤方便操作

產品優勢

• 易於運輸、搬動，隨處可用的資料蒐集系統
• 高精度的TPCE資料蒐集模組顯著效提升設備的性能
• 具有強大TranAX軟體中的暫態訊號分析功能
• 單一操作程式和完善的硬體設計可讓用戶隨時記錄和分析測量數據

軟體

TraNET FE 資料蒐集器可與幾種不同的程序控制軟體一起使用

TranAX	TranAX LE	API	LabVIEW	IVI-Driver

★ 詳細規格請洽詢，我們將有專業人員為您服務！

Replace "ff" with Max. Sample Rate and "bb" with Vertical Resolution.

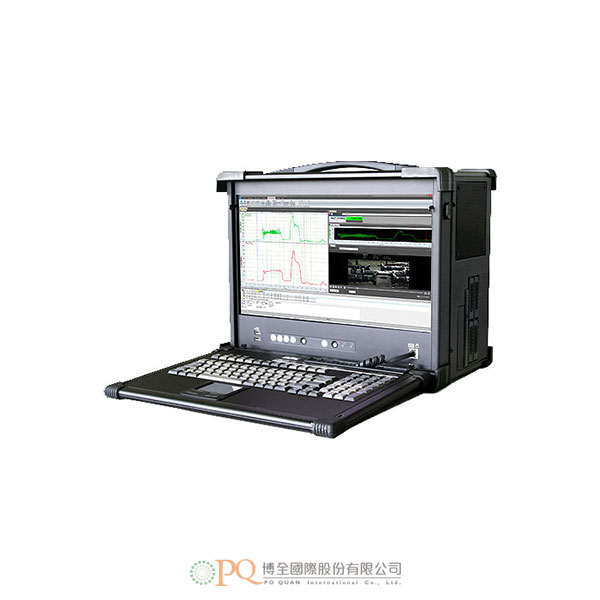

The portable Elsys Data Acquisition Recorder TraNET PPC is a high-precision instrument suitable for harsh environments and mission critical applications.

It is a very compact, all in one data acquisition solution with a high channel density. The TraNET PPC was specifically designed for flexible portable usage to capture multiple channels simultaneously in applications such as ballistics, explosive tests or acoustic emission.

Properties

• Turnkey Transient Recorder and Data Acquisition System with 4 to 24 channels
• Up to 6 TPCE Data Acquisition cards installed
• Pre-Installed Operating System and Data Acquisition Software TranAX
• High-Resolution 17'' Display
• Including transportation Case
• Key and Touch-Pad installed

Data Acquisition

• Up to 240 MS/s sample rate
• 14-bit and 16-bit vertical resolution
• Up to 128 MS memory per channel
• High-precision typ. 0.03% of FSR
• Advanced trigger for debugging
• TranAX with more than 50 scalar functions and built in Formula Editor with more than 60 math. functions for advanced waveform analysis
• Autosequence-macro's for easy to set up, fast automated measurements
• >Multi-Device Synchronization (SyncLink, GPS, IRIG, IEEE1588)

Software

TraNET FE data acquisition devices can be used with several different software solution

TranAX	TranAX LE	API	LabVIEW	IVI-Driver
