高壓釜試驗儀

TSV 系列™ 高壓釜試驗儀（測壓彈）的設計用於測量火砲、火箭或氣囊推進劑、煙火混合物和其它高能量物質或小型爆炸裝置（點火器、手榴彈）的燃燒行為（壓力-時間曲線）和彈道參數 （速度和比能量）。

應用

TSV 系列高壓釜試驗儀不僅用於測量高能量材料（槍砲、火箭或氣囊推進劑、助推器和產生氣體的煙火劑或其它物質等）的燃燒壓力曲線，還可用於測量作為電氣導火的點火器或其它特殊測試用途。在密閉容器中測量所獲得的數據可用於新產品的開發、生產過程中的品質控製或在役監測。

與RB 系列等大型高壓釜試驗儀相比，TSV 系列是一種方便的低成本解決方案，適用於實驗室的非頻繁測試、快速燃燒樣品（小口徑槍支推進劑和點火粉末）測試或產生高腐蝕性殘留物的樣本測試。


具有 EDA 光測量和控制單元的 TSV 40	TSV 15 (15 cm3)

優勢和特點

• 用於測試高能量材料或點火器燃燒參數的低成本解決方案。
• 高壓釜：圓柱形不鏽鋼容器製成。
• 工作壓力最高可達 3,000 bar。
• 以燃燒的火炮推進劑進行 5,000 bar 耐壓測試。
• 可用於正確點火和訊號分析的 EDA 分析儀。

TSV 有兩個版本可供選擇：

The TSV Series™ Testing Closed Vessels (Manometric Bombs) are designed for the measurement of burning behavior (pressure-time profiles) and ballistic parameters (quickness and the specific energy) of gun, rocket or airbag propellants, pyrotechnic mixtures and other energetic substances or small explosive devices (igniters, squibs).


APPLICATIONS

The TSV Series Testing Closed Vessels are used for measuring the burning pressure profile of not only energetic materials (gun, rocket or airbag propellants, booster and gas-generating pyrotechnics or other substances, etc.) but also igniters as electrical squibs or for other special testing purposes. Data obtained from the measurements in closed vessels are used for development of new products or their quality control during manufacture or in-service surveillance. Compared to larger test closed vessels, such as RB series, the TSV Series is a convenient low-cost solution for non-frequent testing in laboratories, for testing fast burning samples (small caliber gun propellants and ignition powders) or for testing samples creating highly corrosive residues.

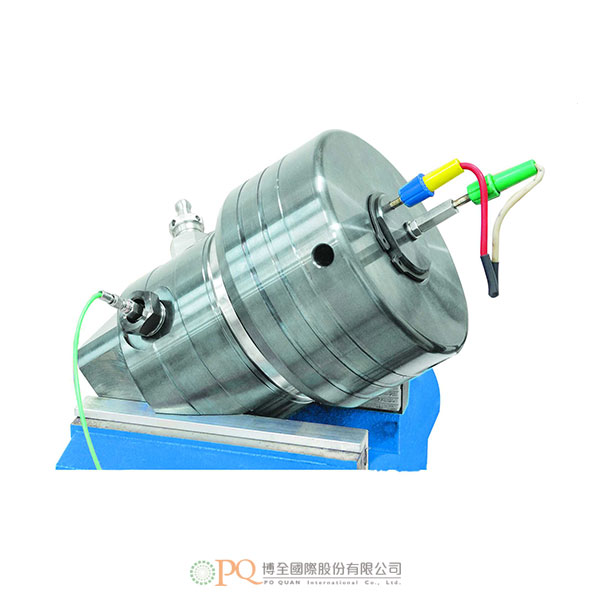

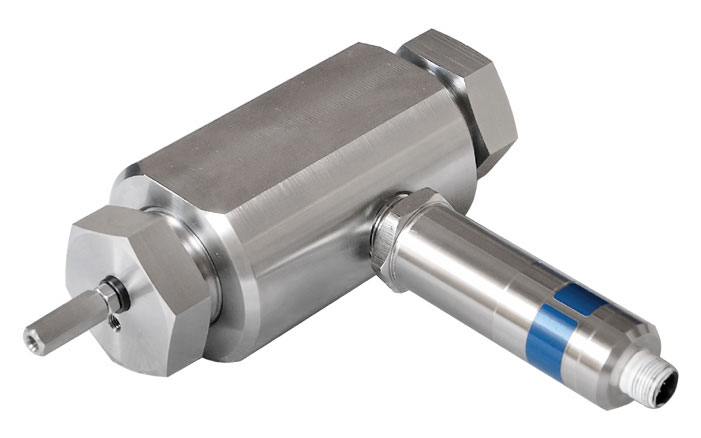

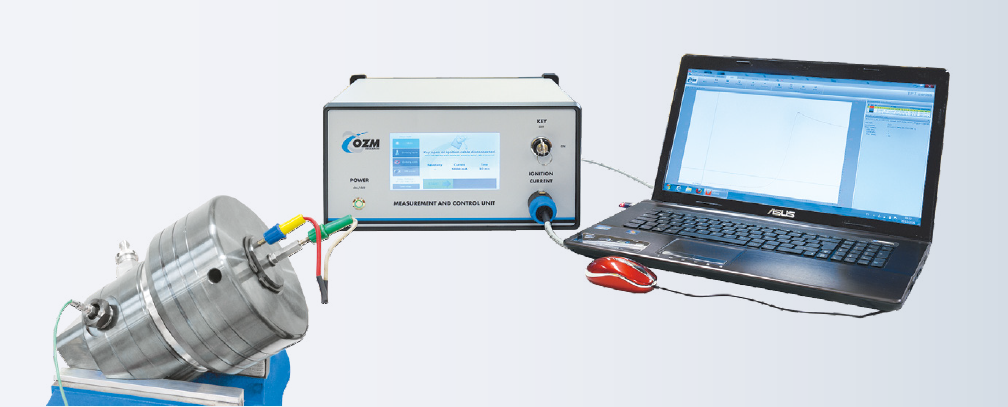

TSV 40 with EDA Light measurement and the control unit	TSV 15 (15 cm3)

ADVANTAGES & FEATURES

• Low-cost solution for testing burning parameters of energetic materials or igniters
• Closed vessels are made of high-strength stainless steel
• Working pressure up to 3,000 bar
• 5,000 bar proof pressure tested by burning gun propellants
• The EDA analyzer available for proper electric ignition and signal analysis

There are two versions of TSV available:
