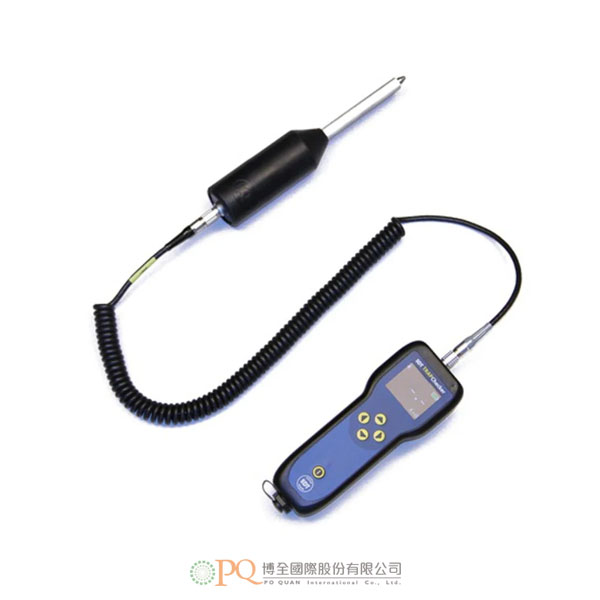

TRAPChecker 超音波測漏設備

型號：TRAPChecker

產品特點產品規格 Features Specifications

- TRAPChecker是一種超音波解決方案，它主要應用於閥門內漏和液壓系統的洩漏檢測。
- 非常易於使用。只需打開包裝盒，連接傳感器，即可了解疏水閥好壞之間的區別，並配以即時精確的檢測數值顯示於色彩豐富的顯示幕上。
- 您多達40％的疏水閥可能處於故障狀態。 TRAPChecker的低入門成本和高能源成效，可能會在您第一次使用它時，您的投資就已經得到了回報。

功能	超音波檢測設備
可支援的	RS2 接觸式感測器
測量通道	1個7針LEMO通道
顯示	160 x128 像素的彩色 OLED
按鍵	5個功能鍵
測量範圍	-6 到 99.9 dBμV（參考0 dB = 1μV，解析度0.1 dBμV）
檢測頻帶	35 to 42 kHz
信號放大	+30 to +102 in steps of 6 dB
回應時間	< 9毫秒
環境
工作溫度範圍	-10 to +50 °C /14 to 122°F
防護等級	IP42
設備
材料和重量	ABS, 164g \| 5.78oz
尺寸大小	158x59x38.5 mm /6.22”x2.32”x1.51”
感測器介面	7針LEMO連接
電池連接器	USB Mini-B 5-pin
電源
電池	2個5號電池
待機	4小時
音訊
放大率	-24 to 0 dB by step of 6 dB
最大輸出	+83dB SPL with 25dB NRR Peltor HQ SDT 耳機

- Inefficient steam systems waste energy and impact product quality. TRAPChecker is an ultrasound solution focused on finding failed steam traps. It works on every style of trap and failure mode.
- TRAPChecker is so easy to use. Simply open the box, connect the sensor, and hear the difference between a good and bad steam trap. Its vibrant colour display offers repeatable, accurate, digital measurements.
- As much as 40% of your steam traps could be operating in a failed state. The low entry cost of TRAPChecker and the high cost of energy, could see your investment recovered the first time you use it.

General
Function	Ultrasound measurement device
Operable with	SDT RS2 Needle Sensor
Measurement interface	1 channel via a 7 pole LEMO connector
Display	160x128 pixels Color OLED
Keyboard	5 function keys
Measuring range	-6 to 99.9 dBµV (reference 0 dB = 1 µV)
Resolution	0.1 digits
Measurement bandwidth	35 to 42 kHz
Signal amplification	+30 dB to +102 dB by step of 6 dB
RMS period time	250 milliseconds (main screen)
Sampling frequency	64 kHz/ksps
ADC Resolution	12 bits
Environmental
Operating temperature range	-10 to +50 °C \|14 to 122°F
IP rating	IP42
EMC approvals	EN 61326-1:2013, EN 55011:2016 + A1:2017, EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + IS1:2009 +A2:2010
Mechanical
Housing material	ABS
Dimensions	158x59x38.5 mm \|6.22”x2.32”x1.51”
Weight	164g \| 5.78oz
Battery/Utility connector	USB Mini-B 5-pin
Power
Battery	2 AA batteries
Autonomy	7 hours
Audio
Operable with	SDT provided head set only
Maximum audio output (protection)	+83 dB SPL with SDT provided headset
Headset	25 dB NRR Peltor quality heaphones
