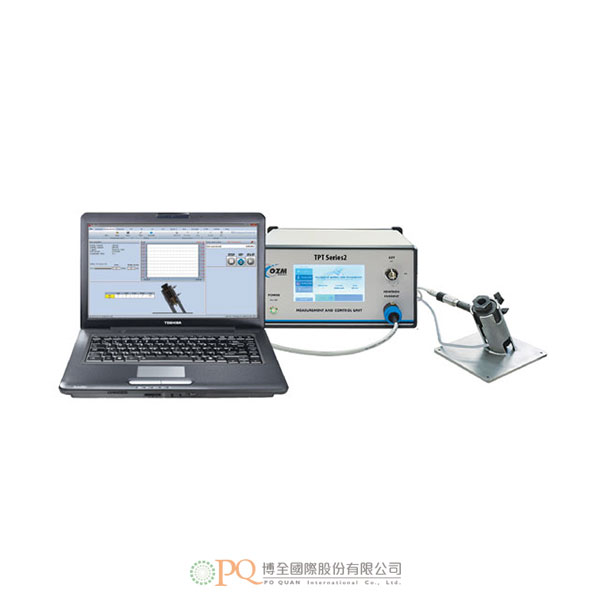

時間-壓力測試器

TPT 系列™（時間-壓力測試器）用於根據《聯合國危險貨物運輸建議書》對危險物質（易燃、氧化和高能量物質）進行危險性分類。測試方法是在半封閉容器中點燃被測物質，並測量由此產生的壓力-時間曲線。

應用

確定封閉條件下的燃燒特性（從點燃到爆燃轉變的趨勢及其劇烈程度）是化學和炸藥行業在生產、處理和運輸過程中對高能量化學品進行危險評估的一個重要參數。透過標準化測試獲得的結果（最大壓力和壓力上升時間等）可提供有關暴力分解的安全資訊。比能量 ( 能耗 ) 決定了被測物質所釋放的機械能的大小。



TPT 標準容器零件	TPT 3000 容器零件： LP 最大壓力 100 Bar - HP 最大壓力 3,000 Bar

TPT 系列容器有兩個版本可供選擇：

優勢和特點

• 提供兩種不鏽鋼測試容器，內含一組轉接器，用於不同的測試程序：
  1. 標準 TPT 半封閉測試容器，工作壓力最高可達 100 bar。
  2. TPT 3000 半封閉或封閉式測試容器，用於高達 3,000 bar的高壓測試。

• 精確的脈衝電源，可透過電子式保險絲或熱線點火。
• 具有客製化資料採蒐系統的應變規形式的壓力感測器。
• 測試結果：壓力與時間曲線、最大壓力和比能量。
• 透過 TPT-SW 軟體實現簡單的操作、控制、測量、校正和數據評估。

​合規

• UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria,
  [Test 1(c)(i)], [Test 2(c)(i)], [Test C.1: Time/pressure Test], or [Test O.2: Test for Oxidizing Liquids]
• European Commission Directive 2004/73/EC –The Classification,
  Packing and Labeling of Dangerous Substances, Method A.21: Oxidizing properties (Liquids)
• UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria,
  [Appendix 7: HSL Flash Composition Test]
• UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria,
  [Test O.1: Test for Oxidizing Solids]


TPT-SW3 軟體中的測量視窗	TPT-SW3 軟體中氧化性液體測試的評估程序( 圖表 )

The TPT Series™ (Time-Pressure Test Apparatus) is used for the hazard classification of dangerous substances (flammable, oxidizing and energetic materials) according to the UN Recommendations on the Transport of Dangerous Goods. The test is based on ignition of a tested substance in a semi-closed vessel and measurement of the resulting pressure-time profile.

APPLICATIONS

Determination of the burning characteristics (tendency to ignition-to-deflagration transition and its violence) under confinement is an important parameter for hazard assessment of energetic chemicals in production, handling and transportation in chemical and explosives industries. Results obtained by standardized tests (max. pressure and pressure rise time etc.) provide safety information about violence of decomposition. Specific energy determines the amount of mechanical energy released by tested substances.

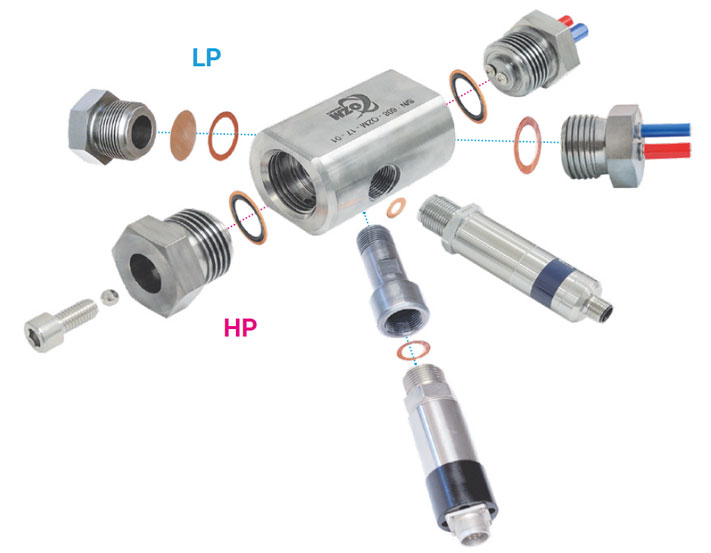

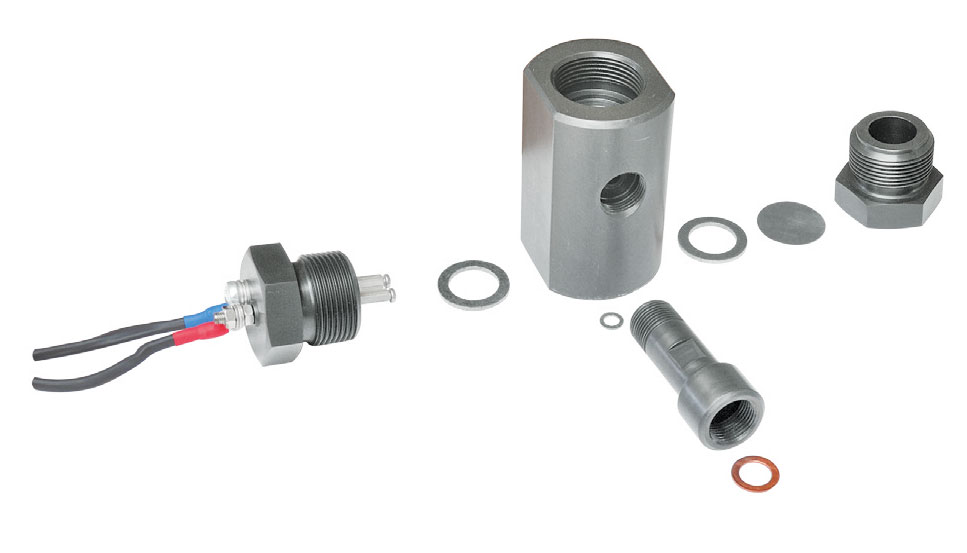

Standard TPT vessel parts	TPT 3000 vessel parts: LP up to 100 Bar • HP up to 3,000 Bar

There are two versions of TPT Series vessels available:

ADVANTAGES & FEATURES

• Two stainless steel testing vessels containing a set of adapters for different testing procedures are available：
  1. standard TPT semi-closed testing vessel with working pressure up to 100 bar
  2. TPT 3000 semi-closed or closed testing vessel for high pressure testing up to 3,000 bar

• Precise pulse power source for ignition by an electric fuse or a hot wire
• Strain-gauge pressure sensors with a tailored data acquisition system
• Test results: pressure vs. time profile, maximum pressure and specific energy
• Simple operation, control, measurement, calibration and data evaluation by TPT-SW software

COMPLIANCE

• UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria,
  [Test 1(c)(i)], [Test 2(c)(i)], [Test C.1: Time/pressure Test], or [Test O.2: Test for Oxidizing Liquids]
• European Commission Directive 2004/73/EC –The Classification,
  Packing and Labeling of Dangerous Substances, Method A.21: Oxidizing properties (Liquids)
• UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria,
  [Appendix 7: HSL Flash Composition Test]
• UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria,
  [Test O.1: Test for Oxidizing Solids]

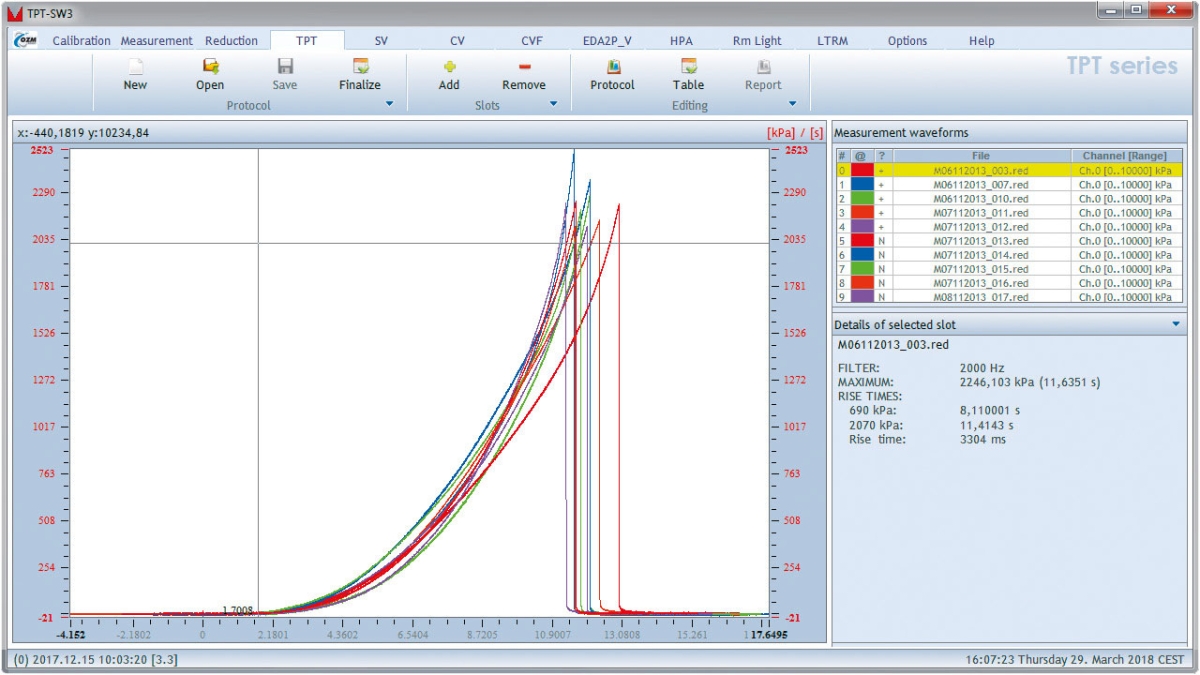

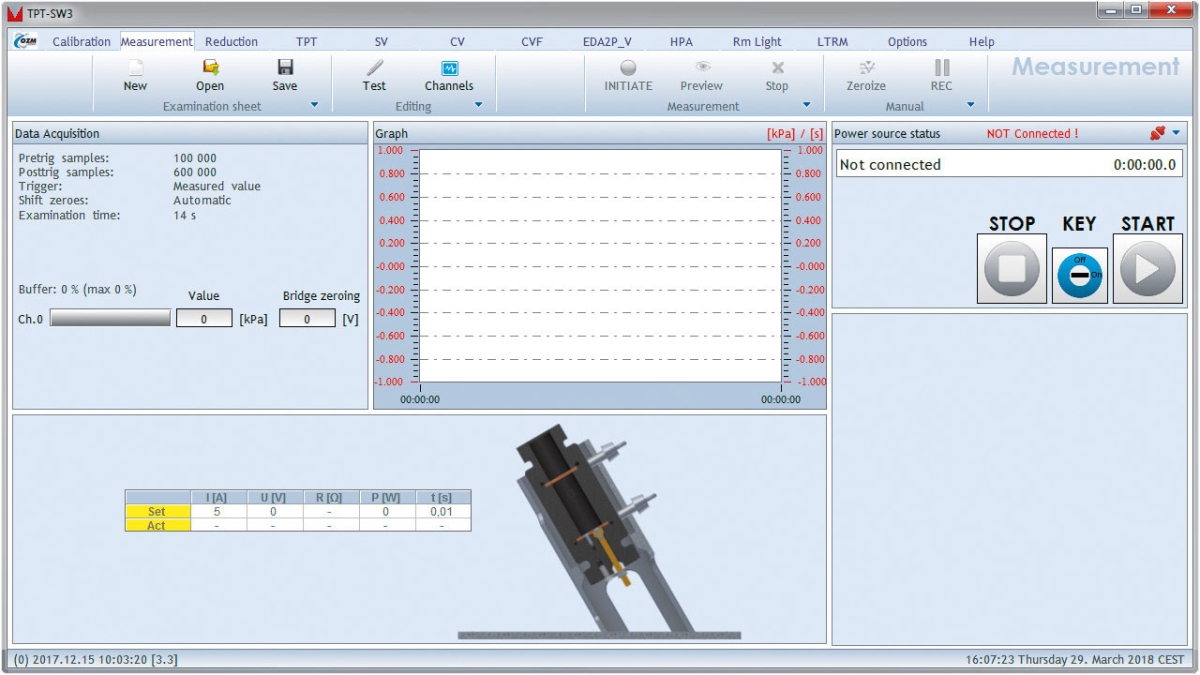

Measurement window in TPT-SW3 software	Evaluation procedure for Oxidizing Liquids Tests in TPT-SW3 software – Graph and Table
