TPCX Data Acquisition card

TPCX Data Acquisition card 型號：TPCX
The Elsys TPCX data acquisition (DAQ) cards are high-precision and high-resolution digitizers with sophisticated features such as advanced trigger mode, continuous data acquisition mode, differential inputs, digital input lines (Markers) and ICP coupling for powering piezo sensors.
加入洽詢
Features Specifications

  • The Elsys TPCX data acquisition (DAQ) cards are high-precision and high-resolution digitizers with sophisticated features such as advanced trigger mode, continuous data acquisition mode, differential inputs, digital input lines (Markers) and ICP coupling for powering piezo sensors.

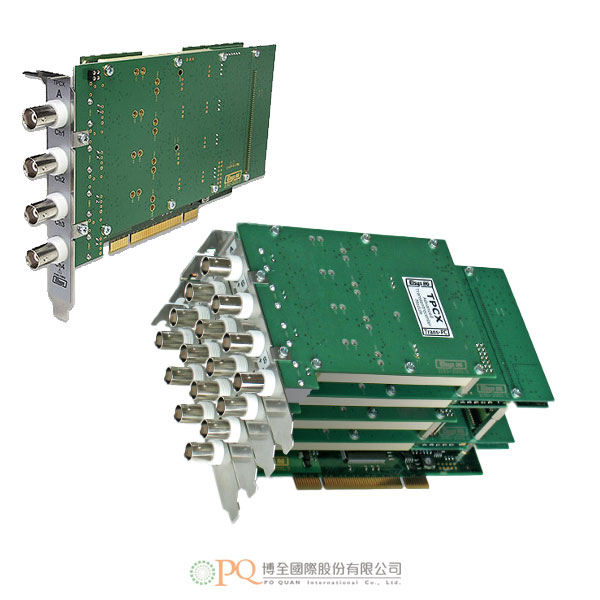

    The various TPCX cards are compact short-form PCI boards. A scalable data acquisition system may be started with one or several card that can be extended in the future to build a solution with up to 64-channels in one housing.

    • Up to 80 MS/s sample rate
    • 14-bit and 16-bit vertical resolution
    • Advanced triggers
    • 4-, or 8-channel single ended and differential cards
    • High-precision typ. 0.03 % of FSR
    • 100 mV to 100 V input range
    • 0 to 100 % offset
    • Very low input noise
    • High differential CMRR
    • Anti Aliasing Filter (optional)
    • ICP Current Source (optional)



  • Parameter TPCE TPCE-LE TPCE-I TPCX
    Interface PCIe x4 PCIe x1 PCIe x1 TPCX
    Available Sample Rates 2 - 240 MHz 2 - 240 MHz 2 MHz 2 - 80 MHz
    Resolution 14/16 Bit 14 Bit (16 Bit optional) 16 Bit 14/16 Bit
    # of Channels 4 or 8 4 or 8 4 or 8 4 or 8
    Input Ranges   100 mV, 200 mV, 500 mV,
    1 V, 2 V, 5 V, 10 V, 20 V, 50 V,
    100V    		   200 mV, 500 mV, 1 V, 2 V, 5
    V, 10 V, 20 V, 50 V    		   200 mV, 400 mV, 1 V, 2 V, 5
    V, 10 V, 25 V, 50 V    		   100 mV, 200 mV, 500 mV,
    1 V, 2 V, 5 V, 10 V, 20 V, 50 V,
    100V
    Input Offset 0 - 100 % 0 - 100 % fix at 50% 0 - 100 %
    Isolation - - 400V RMS (560V Peak) -
    Differential Mode yes yes no yes
    Differential Variant yes yes no yes
    CMRR
    1. 74 dB (DC – 1 kHz);
    > 60 dB (1 kHz – 100 kHz)
    > 40 dB (100 kHz – 5 MHz)
    1. 60 dB (DC – 1 kHz);
    > 54 dB (1 kHz – 100 kHz)
    > 40 dB (100 kHz – 5 MHz)    		   -
    1. 74 dB (DC – 1 kHz);
    > 60 dB (1 kHz – 100 kHz)
    > 40 dB (100 kHz – 5 MHz)
    Memory
    (4 channel modules)    		 32 MS/channel
    (128 MS/channel optional)    		 32 MS/channel
    (128 MS/channel optional)    		 32 MS/channel
    (128 MS/channel optional)    		 16 MS/channel
    (64 MS/channel optional)
