TPCE-LE Cost Effective Data Acquisition Card

TPCE-LE Cost Effective Data Acquisition Card 型號：TPCE-LE

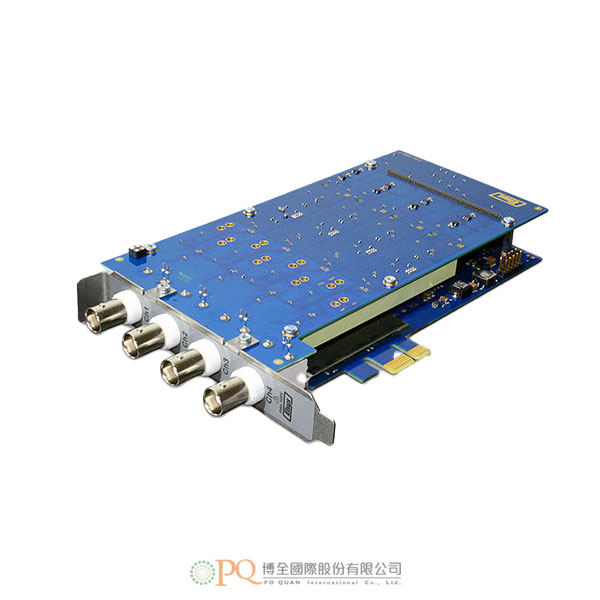

The Elsys TPCE-LE data acquisition (DAQ) cards are high-resolution digitizers with sophisticated features such as advanced trigger mode, continuous data acquisition mode, differential inputs, digital input lines (Markers) and ICP coupling for powering piezo sensors.

加入洽詢

Features Specifications

The Elsys TPCE-LE data acquisition (DAQ) cards are high-resolution digitizers with sophisticated features such as advanced trigger mode, continuous data acquisition mode, differential inputs, digital input lines (Markers) and ICP coupling for powering piezo sensors.

The various TPCE-LE cards are compact short-form PCI Express (PCIe) card. A scalable data acquisition system may be started with one or several cards that can be extended in the future to build a solution with up to 64-channels in one housing. This is the advantage of a modular data acquisition system.
- 200 mV to 50 V input range
- Differential CMRR 60 dB
- PCIe 1.1, x1 lane, 2.5 GBit/s
- More specification see under TPCE Data Acquisition Card

Parameter	TPCE	TPCE-LE	TPCE-I	TPCX
Interface	PCIe x4	PCIe x1	PCIe x1	TPCX
Available Sample Rates	2 - 240 MHz	2 - 240 MHz	2 MHz	2 - 80 MHz
Resolution	14/16 Bit	14 Bit (16 Bit optional)	16 Bit	14/16 Bit
# of Channels	4 or 8	4 or 8	4 or 8	4 or 8
Input Ranges	100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V, 10 V, 20 V, 50 V, 100V	200 mV, 500 mV, 1 V, 2 V, 5 V, 10 V, 20 V, 50 V	200 mV, 400 mV, 1 V, 2 V, 5 V, 10 V, 25 V, 50 V	100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V, 10 V, 20 V, 50 V, 100V
Input Offset	0 - 100 %	0 - 100 %	fix at 50%	0 - 100 %
Isolation	-	-	400V RMS (560V Peak)	-
Differential Mode	yes	yes	no	yes
Differential Variant	yes	yes	no	yes
CMRR	74 dB (DC – 1 kHz); > 60 dB (1 kHz – 100 kHz) > 40 dB (100 kHz – 5 MHz)	60 dB (DC – 1 kHz); > 54 dB (1 kHz – 100 kHz) > 40 dB (100 kHz – 5 MHz)	-	74 dB (DC – 1 kHz); > 60 dB (1 kHz – 100 kHz) > 40 dB (100 kHz – 5 MHz)
Memory (4 channel modules)	32 MS/channel (128 MS/channel optional)	32 MS/channel (128 MS/channel optional)	32 MS/channel (128 MS/channel optional)	16 MS/channel (64 MS/channel optional)
