三相電錶測試台

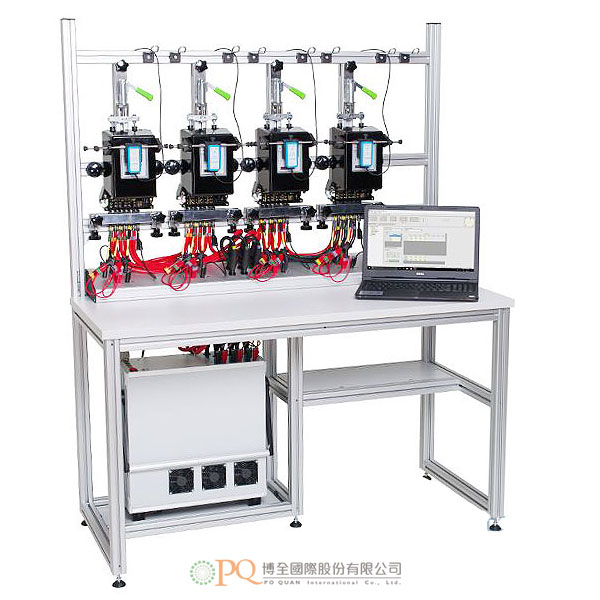

Three phase meter test station 型號:TB40
Three phase electricity meter test bench with extremely compact design size and light weight for simultaneous and automatic testing of 4 eletricity meters.
    • New generation of the fully automated Smart Meter Test Bench
    • Accuracy class 0.02% or 0.05% with internal reference meter
    • Extremely high accuracy class with external reference meter
    • Automatic Test Procedures
    • Simultaneously testing up to 4 electricity meters
    • Programmed form and special shapes of currents and voltages
    • Three-phase current and voltage source in range 0.001A…120A and 0.5…560V
    • Signal generation without auxiliary amplifiers
    • Compact design size and light weight
    • AC single phase power supply operation only
    • Calibration Certificate
  • All completed Calmet TB40 Test Bench’s set consists of:

    • C300B calibrator class 0.02 or 0.05 with Calpro 300 Basic + TS software (for automatic test of electric equipment) + PQ software (for Power Quality measurement devices testing),
    • MPX8 Eight Inputs Meter Error Calculator with MPX8 PC Soft (for controlling the process of simultaneously testing up to 4 energy meters),
    • ER40H.3 four position testing stand including:
      • ER40 4-positions test rack,
      • EH10.3 quick connection device (4units),

    o set of safety voltage cables (16 units),
    o set of safety current cables up to 20A (15 units),
    o set of safety current cables up to 120A (15 units),
    o set of accessories for safety cables (68 units),
    o set of accessories for current cables up to 120A (24 units)

    • Computer Laptop PC with PC software,
    • CF106H photo head with holder for inductive meter and meter with LED (4units),
    • AD300 sockets adapter,
    • power cord (2units),
    • USB / RS232 adapter,
    • fuse T4A, 250V, 5x20 (2units),
    • C091A T3475-001 plug Amphenol for Calibrator inputs,
    • operation manuals (6units) and assembly manual,
    • warranty card and calibration certificate.
