紫外/可見光分析用分光電化學套件

Spectro-electrochemistry (光譜電化學) 是一種連體/混合技術，可同時利用電化學方法 (例如：循環伏安法 (CV))和光譜學 (例如：UV-VIS)，對電化學反應或產品進行表徵。這兩種技術所提供的資訊也是互補的。舉例來說，電化學氧化的不穩定產物可以在其衰變之前用光譜檢測出來。MF-SPEC-ECKIT 是專為 PalmSens 客戶量身打造的套件，客戶希望利用 UV-Vis 光譜分析擴展其電化學研究。此套件可讓使用者在 200-1100 nm的波長範圍內，進行完全同步的電化學原位量測與紫外可見光光譜分析。也可針對 IR、Vis-NIR 或 Raman 光譜進行客製化。

恒電位儀相容性：MF-SPEC-ECKIT 與任何具有輔助連接埠選項的 PalmSens 恒電位儀/恒電流儀相容，例如 PalmSens 4、EmStat4X 和 MultiPalmSens 4 系列。

如何訂購： 只需從上述相容選項中選擇任何一款恒電位/恒電壓儀，並在訂單中添加以下兩項即可。從第一天開始，您就可以進行即插即用的 Spectro-EC 分析了。

Spectro-EC 槽套件選項： 批量流動式 Spectro-EC 槽選項如下。每個 Spectro-EC 槽套件包括一個白金/金的小型金屬網、一個薄層石英玻璃槽、一個帶孔的槽蓋、一個吹掃管和白金對電極。

EF-1350：Spectro-EC 槽套件，含白金材質的小型金屬網 (1 mm 網徑長度)。
EF-1362： Spectro-EC 槽套件，含白金材質的小型金屬網 (0.5 mm 網徑長度)。
EF-1351: Spectro-EC 槽套件，含金材質的小型金屬網 (1 mm 網徑長度)。
EF-1363： Spectro-EC 槽套件，含金材質的小型金屬網 (0.5 mm 路徑長度)。

進階選項： 更多進階的流式 Spectro-EC 槽套件也可從下列選項中選擇。如需在進階配件選項中增加更多客製化選項，請與我們聯絡。

技術資訊：
光譜儀： AvaSpec-ULS2048CL
光源： Avalight-DHc

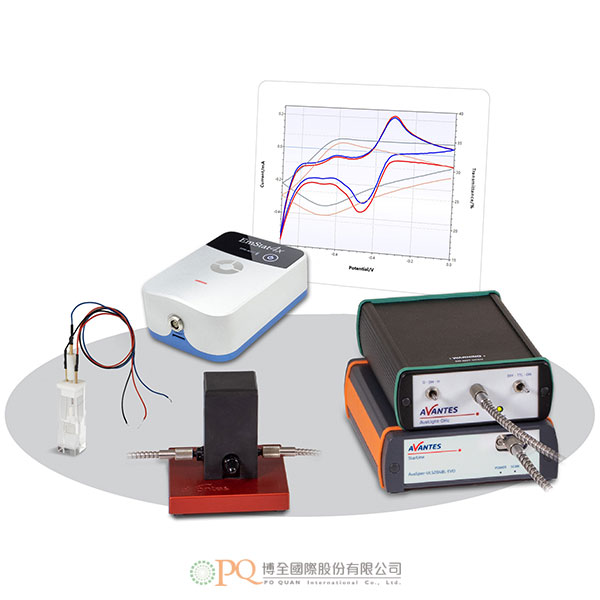

MF-SPEC-ECKIT: Spectro-EC Kit for UV-Vis Analysis

Spectro-electrochemistry is a hyphenated / hybridized technique where electrochemical reactions or products are simultaneously characterized by electrochemical methods, e.g., cyclic voltammetry (CV), and spectroscopy, e.g., UV-VIS. The information both techniques deliver is complementary as well. For example, an unstable product of electrochemical oxidation can be detected by spectroscopy before it decays. The MF-SPEC-ECKIT is a customized kit made for our PalmSens customers wanting to expand their electrochemical research with UV-Vis spectroscopy analysis. This kit will allow users to conduct fully synchronous and in-situ measurements for electrochemistry along with UV-Vis Spectroscopy in the wavelength range of 200-1100 nm. Customized versions are possible for IR, Vis-NIR or Raman Spectroscopy as well.

Application Note: PSAN-410 – Spectro-electrochemistry

Potentiostat Compatibility: MF-SPEC-ECKIT is compatible with any of the PalmSens Potentiostats / Galvanostats with auxiliary port options such as PalmSens 4, EmStat4X, and MultiPalmSens 4 series.

How to Order: Simply select any of the Potentiostat / Galvanostat from the compatible options above and add the following two items to the order. You are ready to conduct plug-n-play Spectro-EC Analysis from day one.

SPECTRO-EC CELL KIT OPTIONS: Batch flow type Spectro-EC Cell options are available below. Each Spectro-EC cell kit includes a Pt / gold mini-grid, a thin layer quartz glass cell, a teflon lid with holes, a purging tube, and platinum counter electrode.

EF-1350: Spectro-EC cell kit with Pt mini-grid (1 mm path length)
EF-1362: Spectro-EC cell kit with Pt mini-grid (0.5 mm path length)
EF-1351: Spectro-EC cell kit with Au mini-grid (1 mm path length)
EF-1363: Spectro-EC cell kit with Au mini-grid (0.5 mm path length)
ADVANCED OPTIONS: More advanced flow-based Spectro-EC Cell kits are also available from the options below. Please contact us to add more customization options in advanced accessory option.

Technical Information:

Spectrometers: AvaSpec-ULS2048CL

Light Source: Avalight-DHc
