Serstech SERS Kit 套件

快速辨識困難物質：•海洛因 • 芬太尼 • 冰毒安非他命 • 氯胺酮 • 可卡因 • 安非他命 • 低濃度街頭樣本。

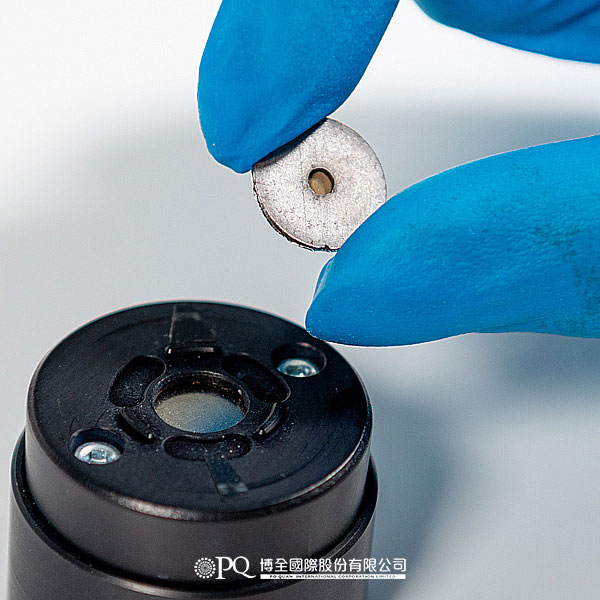

Serstech SERS Kit與Serstech Arx 或Serstech 100 Indicator一起使用，以提高識別濃度極低的深色物質或混合物的能力。該裝置能夠檢測非常低數量的「街頭品質」麻醉品樣品，包括海洛因和許多芬太尼變種。Serstech SERS Kit基於與一次性 SERS 表面一起使用的專利待審技術。
簡言之，當螢光減少時，物質發出的信號被放大。這要歸功於 3D 振盪（一種新的專利解決方案）。一次性表面有20或100片，以及預先裝滿溶劑的樣品製備瓶。
與所有 Serstech 產品一樣，Serstech SERS Kit在瑞典開發和生產。


尺寸	39 x 44 mm / 1.53 x 1.73 inch
檢測濃度	低於200 ppm
重量	67g / 2.36 oz
重量，包括外殼和附件	905g / 32 oz
標準配件	樣品容器，5個裝滿溶劑的樣品製備瓶，5個一次性SERS 片，用於更換電池的內六角扳手，快速入門指南
溶劑	甲醇，3ml / 0.1 fl. oz. (CAS 67-56-1)。請注意 ，甲醇將有可能不能被運往所有國家。
電池類型	一次鋰電池 , LS 14250, 3.6 V鋰亞硫酰氯電池(LiSOCl2), 高能量密度, 1⁄2 AA-size bobbin cell
电池的使用	約300個測量值

Quick identification of difficult substances：

•Heroin • Fentanyl • Meth Amphetamine • Ketamine • Cocaine • Amphetamine • Low concentration street samples

The Serstech SERS kit is used together with Serstech Arx or Serstech 100 Indicator to enhance the capability to identify dark coloured substances or mixtures with very low concentrations. The device is capable of detecting very low amounts of “street quality” narcotics samples, including heroin and many fentanyl variants. The Serstech SERS kit is based on patent pending technology used together with disposable SERS surfaces.

In short, the signals from substances are amplified while fluorescence is being reduced. This is made possible thanks to 3D oscillation, a new and patented solution. The disposable surfaces are available in packs of 20 or 100 pieces together with sample preparation bottles pre-filled with solvent.

As with all Serstech’s products, the Serstech SERS Kit is developed and produced in Sweden.



Size	39 x 44 mm / 1.53 x 1.73 inch
Detection level	Down to 200 ppm
Weight	67g / 2.36 oz
Included in the package	905g / 32 oz
Included in the package	Adaptor, 5 x sample preparation bottles containing solvent fluid, 5 disposable SERS plates, Allen key for battery exchange, quick-start guide
Solvent	Methanol, 3ml / 0.1 fl. oz. (CAS 67-56-1). Note: Due to local regulations methanol can not be shipped to all countries.
Battery type	Primary lithium battery, LS 14250, 3.6 V Primary lithium-thionyl chloride  (LiSOCl2), High energy density, 1⁄2 AA-size bobbin cell
Battery use	Approximately 300 measurements
