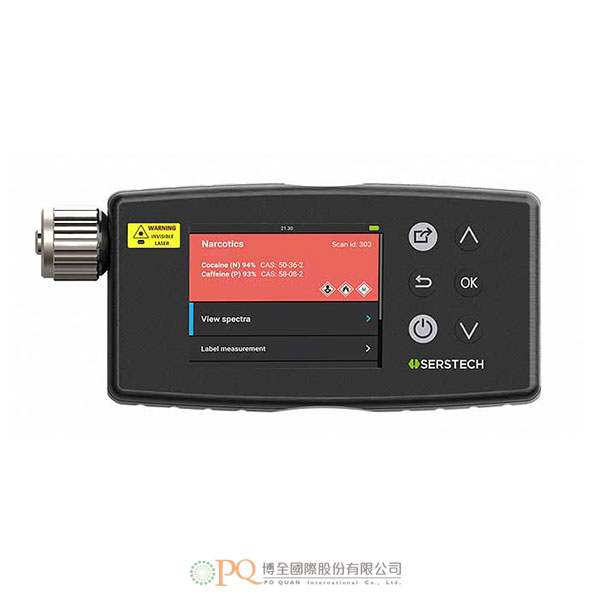

Serstech Arx 拉曼檢測儀

Serstech Arx是一款革命性的檢測儀器，引入了SharpEyeTM - 一種自動對焦專利技術，顯著提升了信號品質。 Serstech Arx能夠快速、準確地識別未知物質。
SharpEyeTM對物質的精確識別，使得Serstech Arx和SharpEyeTM能夠給出準確的測量結果。 這歸功於能夠在毫秒內自動獲取最佳焦點的自動對焦技術。 它可以區分容器和待檢測物質，得出更準確的測量結果。
自動對焦技術能夠檢測出容器帶來的螢光並將其最小化。
全新的用戶介面和高效的工作流程。 Serstech Arx建立在最新的軟體平臺之上，注重實用性和演算法。 全新的圖形用戶介面易於流覽。 通過導引掃描（Guided Scan）和快速檢驗（Quick Access）等新功能，能夠更快速地獲取準確的結果。 通過新的演算法，能夠快速、準確地識別純凈物質樣品和混合物。 測試結果呈現方式簡單，基本上任何人都能夠理解和使用。 只需短短數秒，即可為決策提供支援。
真正的手持式檢測儀。 與以往的Serstech 100 Indicator相比，Serstech Arx更加輕便、小巧，而且功能更強大。 無論您身在何處，Serstech Arx都能讓您專注於關鍵所在，並根據可靠的測量結果做出決策。

雷射激發波長	785 nm
條碼讀取器	可以，二維碼和最常見的條碼格式
雷射輸出功率	3個級別的選擇，最大300mW
光譜範圍	400 cm-1 至 2300 cm-1
自動對焦	Serstech SharpEyeTM 技術（0-4mm）
光譜解析度	8-10 cm-1
偵測器類型	線性 CCD 陣列
螢幕	3.5 "透射式彩色TFT，LED背光。
記憶體	超過100 000次测量。
數據格式	.txt, .csv, .jcamp
連接	USB C、 Wi-Fi 和Ethernet（可選）。
電池	可充電的。典型使用時間超過12小時
重量	590 g (1.3 lb)
體積	149 mm x 83 mm x 28 mm (5.9 x 3.3 x 1.1”)
工作溫度	-20 °C 至 +50 °C
儲存溫度	-30 °C to +50 °C

Serstech Arx is a revolutionizing instrument, introducing SharpEye^TM – a patented autofocus technology which improves the signal quality dramatically. Serstech Arx identifies unknown substances quickly and precisely.

Serstech Arx and SharpEye^TM give a precise result since SharpEye^TM identify substances precisely, thanks to automatically obtaining the optimal focus point in milliseconds. It can detect the difference between the container and the actual substance, giving an improved measurement result. The autofocus makes it possible to detect and minimize fluorescence from containers.

New user interface and efficient workflows. Serstech Arx is built on a modern software platform, putting usability and algorithms in focus. The brand new graphical user interface is easy to navigate and new features such as Guided Scan and the Quick Access feature make it possible to get precise results, faster. The new algorithms result in fast and precise identifications of both pure samples and complex mixes of substances. The results are presented in a simple way, making it possible for almost anyone to interpret and use. Decision support in seconds.

Truly handheld. Serstech Arx is lighter and smaller compared to previous Serstech models and yet – even more powerful. Serstech Arx lets you get focused on what is important and make decisions based on reliable measurement results – wherever you are.

Easy to use. Serstech Arx is easy to understand and gives accurate responses in seconds. Connect it wirelessly or via cable to ChemDash for reporting and management of users, measurements and libraries. Serstech Arx has been designed from the ground up to support a highly efficient workflow!

Laser excitation wavelength	785 nm
Barcode reader	Yes, QR and most common barcode format
Laser output power	3 levels, max 300mW
Max spectral range	400 cm-1 to 2 300 cm-1
Autofocus	Serstech SharpEyeTM technology (0-4mm)
Spectral resolution	8-10 cm-1
Detector type	Linear CCD Array
Display	3.5” Transflective TFT with LED backlight
Memory	More than 100 000 measurements
Data formats	.txt, .csv, .jcamp
Connectivity	USB C,  Wi-Fi
Battery	Rechargeable - more than 12 hours of typical use
Weight	590 g (1.3 lb)
Size	149 mm x 83 mm x 28 mm (5.9 x 3.3 x 1.1”)
Operating temperature	-20°C to +50°C  (-4°F to 122°F)
Storage temperature	-30°C to +50°C (-22°F to 122°F)
