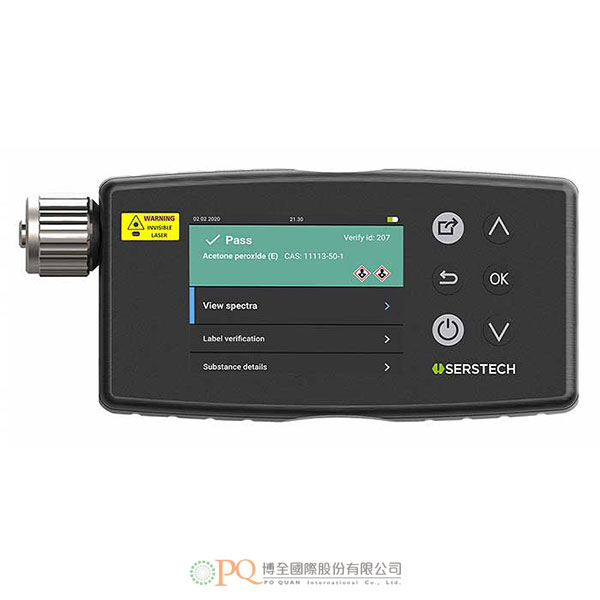

Serstech Arx+ 拉曼檢測儀

Serstech Arx+ 型號:Serstech Arx+
Serstech Arx+是一款革命性的檢測儀器,引入了SharpEye<sup>TM</sup>- 一種針對手持式拉曼檢測儀的自動對焦專利技術。Serstech Arx+讓物質的識別和驗證變得更加容易。Serstech Arx+具有許多新功能,簡化了進貨檢驗過程中查對物質的工作流程。
  • Serstech Arx+是一款革命性的檢測儀器,引入了SharpEyeTM - 一種針對手持式拉曼檢測儀的自動對焦專利技術。 Serstech Arx+讓物質的識別和驗證變得更加容易。

    Serstech Arx+具有許多新功能,簡化了進貨檢驗過程中查對物質的工作流程。 Serstech推出了已獲得專利的自動對焦技術—SharpEyeTM,顯著提升了信號品質。 借助功能強大的全新演算法,無論是純凈物質還是成分複雜的混合物,Serstech Arx+都能給出準確的測試結果。

    Serstech Arx+符合《聯邦法規彙編(CFR)》第21章第11部分的規定,配有標準的條碼讀取器,能夠通過掃描條碼或者二維碼,將測量結果與21 CFR Part 11綁定。 專為製藥行業開發。

    全新的使用者體驗。 Serstech Arx+建立在最新的軟體平臺之上,注重實用性和演算法。 全新的圖形用戶介面易於流覽。 通過導引掃描(Guided Scan)和快速檢驗(Quick Access)等新功能,能夠更快地獲取準確的結果。 通過新的演算法,能夠快速、準確地識別純凈物質樣品和混合物。 測試結果呈現方式簡單,基本上任何人都能夠理解和使用。 只需短短數秒,即可為決策提供支援。

    真正的掌上型檢測儀。 與以往的Serstech 檢測儀相比,Serstech Arx+更加輕便、小巧,而且功能更強大。 無論您身在何處,Serstech Arx+都能讓您專注於關鍵所在,並根據可靠的測量結果做出決策。

    簡單易用。 Serstech Arx+簡單明瞭,能夠在短短幾秒內做出準確的回應。 通過無線或有線將其連接到ChemDash軟體,從而創建報告,管理使用者、測量結果和物質庫。 Serstech Arx+,為支援高效的工作流程而生!

  • 雷射激發波長 785 nm
    條碼讀取器 可以,二維碼和最常見的條碼格式
    雷射輸出功率 3個級別的選擇,最大300mW
    光譜範圍 400 cm-1 至 2300 cm-1
    自動對焦 Serstech SharpEyeTM 技術(0-4mm)
    光譜解析度 8-10 cm-1
    偵測器類型 線性 CCD 陣列
    螢幕 3.5 "透射式彩色TFT,LED背光。
    記憶體 超過100 000次测量。
    數據格式 .txt, .csv, .jcamp
    連接 USB C、 Wi-Fi 和Ethernet(可選)。
    電池 可充電的。典型使用時間超過12小時
    重量 590 g (1.3 lb)
    體積 149 mm x 83 mm x 28 mm (5.9 x 3.3 x 1.1”)
    工作溫度 -20 °C 至 +50 °C
    儲存溫度 -30 °C to +50 °C
  • Serstech Arx+ is a revolutionizing instrument, introducing SharpEyeTM – a patented autofocus technology for handheld Raman instruments. Serstech Arx+ will make it easier to identify and verify substances.

    Serstech Arx+ is packed with new features, simplifying the workflow when verifying substances at incoming goods inspection. Serstech introduces SharpEyeTM, a patented autofocus technology that improves the signal quality dramatically. With the new and powerful algorithms, Serstech Arx+ finds precise results for both single substances and for complex mixtures.

    Serstech Arx+ is compliant with Title 21 CFR part 11 and equipped with an integrated barcode reader which makes it possible to tie a measurement to a container by scanning barcodes or QR codes. Specifically developed for the Pharma industry.

    New UX. Serstech Arx+ is built on a modern software platform, putting usability and algorithms in focus. The brand new graphical user interface is easy to navigate and new features such as Guided Scan and the Quick Access feature make it possible to get precise results, faster. The new algorithms result in fast and precise identifications of both pure samples and complex mixes of substances. The results are presented in a simple way, making it possible for almost anyone to interpret and use. Decision support in seconds.

    Truly handheld. Serstech Arx+ is lighter and smaller compared to previous Serstech models and yet – even more powerful. Serstech Arx+ lets you get focused on what is important and make decisions based on reliable measurement results – wherever you are.

    Easy to use. Serstech Arx+ is easy to understand and gives accurate responses in seconds. Connect it wirelessly or via cable to ChemDash for reporting and management of users, measurements and libraries. Serstech Arx+ has been designed from the ground up to support a highly efficient workflow!



  • Laser excitation wavelength 785 nm
    Barcode reader Yes, QR and most common barcode format
    Laser output power 3 levels, max 300mW
    Max spectral range 400 cm-1 to 2 300 cm-1
    Autofocus Serstech SharpEyeTM technology (0-4mm)
    Spectral resolution 8-10 cm-1
    Detector type Linear CCD Array
    Display 3.5” Transflective TFT with LED backlight
    Memory More than 100 000 measurements
    Data formats .txt, .csv, .jcamp
    Connectivity USB C,  Wi-Fi
    Battery Rechargeable - more than 12 hours of typical use
    Weight 590 g (1.3 lb)
    Size 149 mm x 83 mm x 28 mm (5.9 x 3.3 x 1.1”)
    Operating temperature -20°C to +50°C  (-4°F to 122°F)
    Storage temperature -30°C to +50°C (-22°F to 122°F)
