各式燃料電池樣品

Samples for training 型號：Samples for training

The samples are disks with 0, 1, 2, or 3 Pt electrodes or bars without electrodes or with Pt end-face electrodes. The electrodes are made with commercial Pt-pastes and may have Pt mesh embedded. The samples are uniaxially cold-pressed and subsequently sintered to >90% density. The ceramic powders are mostly commercial state-of-the-art supplies or spray-pyrolyzed.

加入洽詢

產品特點產品規格

The samples are disks with 0, 1, 2, or 3 Pt electrodes or bars without electrodes or with Pt end-face electrodes. The electrodes are made with commercial Pt-pastes and may have Pt mesh embedded. The samples are uniaxially cold-pressed and subsequently sintered to >90% density. The ceramic powders are mostly commercial state-of-the-art supplies or spray-pyrolyzed.

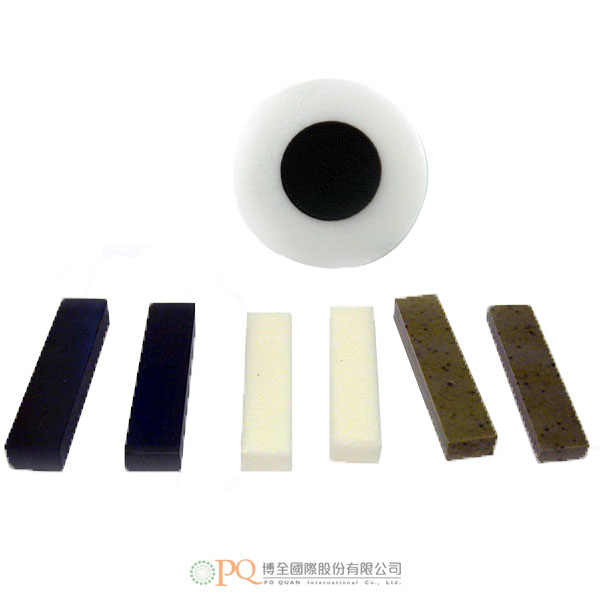

Sample shapes

Sample shape	Electrodes	Measurements
Disk 20 mm diameter 1-2 mm thickness	None	van der Pauw 4-point measurements Application of own electrodes
	1 (counter electrode)	Application of own working electrode
	2 (counter and ring reference electrodes)	Application of own working electrode
	2 (working and counter electrodes)	2-electrode conductivity measurements Impedance spectroscopy Transport number measurements in concentration cells Fuel cell tests Electrochemical reactors
	3 (working, counter, and ring reference electrodes)	Electrode studies Impedance spectroscopy Electrochemical reactors Surface guarded measurements of insulating materials (ring electrode used as surface guard)
Bar 4 (+/-1) cm long 4-10 mm width	None	4-point conductivity measurements Seebeck-coefficient measurements
Bar 4 (+/-1) cm long 4-10 mm width	2 (end faces)	4-point conductivity measurements Seebeck-coefficient measurements

Sample materials

Material	Powder supply	Typical properties
Yttria-stabilized zirconia 8YSZ (92 mol% ZrO2 + 8 mol% Y2O3)	TOSOH	Oxygen ion conductor
Iron-substituted calcium titanate CTF10 (CaTi0.9Fe0.1O2.95)	Praxair	Mixed n- and p-type electronic and oxygen ion conductor
Ytterbium-substituted strontium cerate SCYb5 (SrCe0.95Yb0.05O2.975)	Praxair	High-temperature proton conductor
Yttria-substituted barium zirconate BZY15-Ni (BaZr0.85Y0.15O3 + 1 wt% NiO)	In-house	High-temperature proton conductor
Yttria-substituted barium zirconate BZY (BaZr0.85Y0.15O3)	CerPoTech	High-temperature proton co
