真實相位識別系統

ndb Technologies的願景一直是創建一個相位識別系統，超越當今任何行業對品質、安全和效率的要求。SPI-III 的獨特設計包括一個無線雙模組結合，配置和操作非常簡單。憑藉許多進步和創新，SPI-III 將比以往任何時候都更有幫助，支援現場應用，例如從所有 50 和 60 Hz 網路識別 A-B-C 電氣相位、開關設備相位一致性（匹配）、相位旋轉、系統並聯、地下定相 應用程序等等。

新功能：現在可使用預置模式！有了全新的預置模式，相位調節任務變得前所未有的簡單。只需從列表中選擇一個預設值，就可以根據所有本地標准開始相位調節。

產品介紹影片

Field Module

• Phasing resolution ± 1°
• 4 AA Batteries
• Autonomy: 30 hours of continuous phasing
• CAT-III 1000V / CAT-IV 600V low voltage phasing direct contact

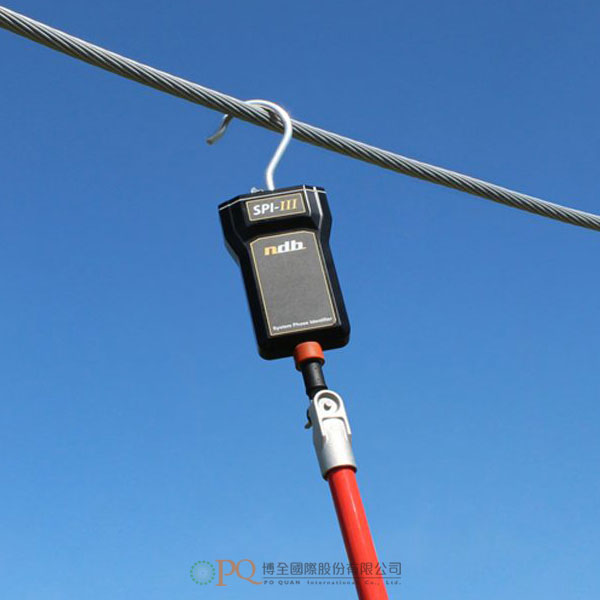

• Up to 72 kV medium voltage direct contact using hotstick
• Non-contact up to 1,200kV
• Capacitive test port input
• Switchgear half rectified voltage indicator port measurements.
• IP-67 rating
• 50/60 Hz
• CE certified
• Wireless range: 30 meters / 100 ft range, typical
• Languages: English, French, Indonesian, Polish, Thai, Turkish, Spanish & Chinese

Reference Module

• Two reference inputs (CAT-III 600V, CAT-IV 300V)
• Ethernet port
• Power input
• External GPS connection interface
• 50/60 Hz
• CE certified

Our vision has always been to create a phase identification system that exceeds any of today’s industry quality, safety and efficiency requirements. SPI-III’s unique design consists of a wireless bi-module combo that is stunningly easy to configure and operate. With many advancements and innovations, SPI-III will be more helpful than ever before, enabling field applications such as identification of A-B-C electrical phases from all 50 and 60 Hz networks, switchgear phase concordance (matching), phase rotation, system paralleling, underground phasing applications and more.

NEW: Now available with PRESETS! Make your phasings tasks easier than ever before with the all new Preset mode. Simply select a Preset from the list and start phasing with all your local criteria in place.

Introduction Video

Field Module

• Phasing resolution ± 1°
• 4 AA Batteries
• Autonomy: 30 hours of continuous phasing
• CAT-III 1000V / CAT-IV 600V low voltage phasing direct contact
• Up to 72 kV medium voltage direct contact using hotstick
• Non-contact up to 1,200kV
• Capacitive test port input
• Switchgear half rectified voltage indicator port measurements.
• IP-67 rating
• 50/60 Hz
• CE certified
• Wireless range: 30 meters / 100 ft range, typical
• Languages: English, French, Indonesian, Polish, Thai, Turkish, Spanish & Chinese

Reference Module

• Two reference inputs (CAT-III 600V, CAT-IV 300V)
• Ethernet port
• Power input
• External GPS connection interface
• 50/60 Hz
• CE certified
