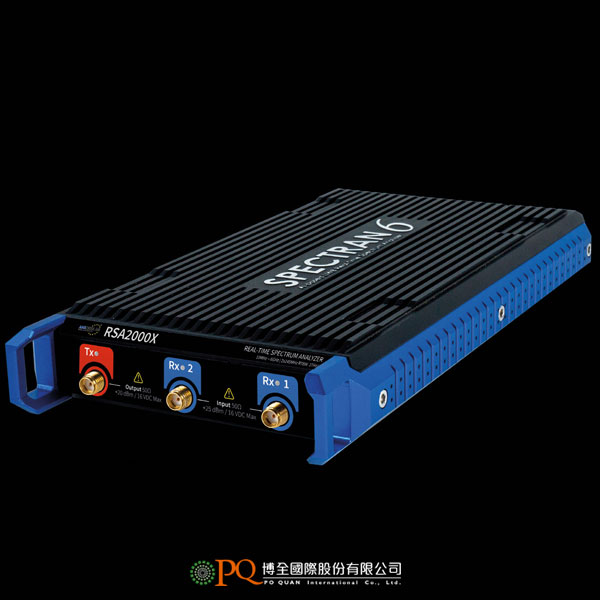

即時頻譜分析儀 (原 V6 X 系列)

SPECTRAN® V6 PLUS 系列是 Aaronia 最新一代的高效能即時頻譜分析儀。入門級款 SPECTRAN® V6 PLUS 250XA-6 已配備 80 MHz（可選 120 MHz）的即時頻寬。

此分析儀系列的頂級型號 V6 PLUS 2000XA-6 已配備 160 MHz 即時頻寬（可選），並可擴展至 245 MHz。

產品描述

SPECTRAN® V6 PLUS 是 Aronia 最新一代高效能即時頻譜分析儀。它的掃描速度超過 1 THz/s，為 USB 供電的可攜式頻譜產品樹立了新標準。任何數量的設備都可以串接，以實現更高的即時頻寬。因此，只需四台 SPECTRAN® V6 PLUS 就能實現 1 GHz 的即時頻寬！隨附的 RTSA-Suite PRO 軟體專為功能強大、堅固耐用的硬體量身定制，支援使用多個 SPECTRAN® V6 PLUS。 可堆疊的鋁製外殼便於多台設備並行使用。SPECTRAN® V6 PLUS 共計有三種型號： V6-250XA-6、V6-500XA-6 和 V6-2000XA-6，RTBW（即時頻寬）高達 245 MHz（透過 2 x USB）。此分析儀相容於所有常見的 Aaronia 天線。

功能特點

• 透過 2 x USB 3.0 無限連續傳輸 245 MHz True I/Q 串流。
• 雙接收器即時頻寬為 245 MHz。
• I/Q 向量訊號產生器，Tx 頻率高達 245MHz。
• 6 GHz，小於 5 ms（1 THz/s）掃頻。
• 9.6 億 FFT 點/秒（1.2 億 FFTs/秒）。
• 多頻段並行測量。
• POI 長達 97 ns（基於 FFT）和 10 ns（基於 I/Q）。
• 重量輕、結構輕巧。
• 可多個裝置堆疊。
• 包括隨時更新的 RTSA-Suite PRO 軟體。

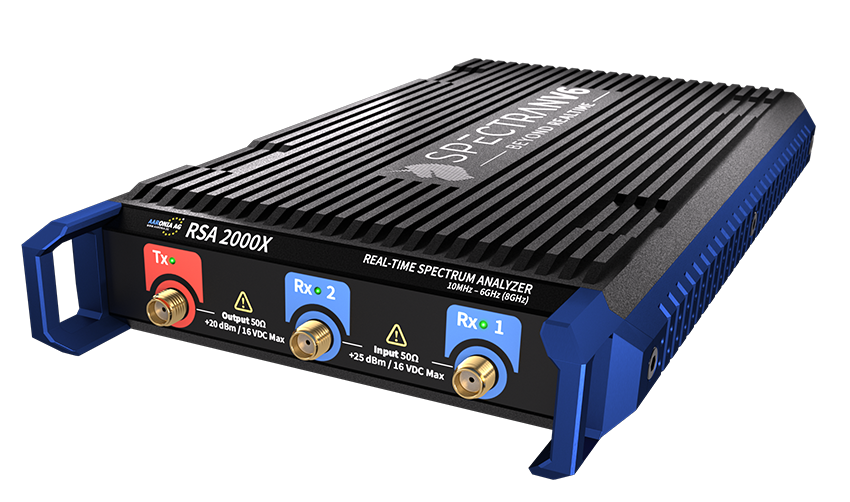

The SPECTRAN® V6 PLUS series is Aaronia`s latest generation of high performance real-time spectrum analyzers. Already the entry-level model SPECTRAN® V6 PLUS 250XA-6 is equipped with a real-time bandwidth of 80 MHz (optionally 120 MHz). The top-of-the-line model V6 PLUS 2000XA-6 of this analyzer family already comes with 160 MHz RTBW ex works, which can optionally be extended to 245 MHz.


Description

The SPECTRAN® V6 PLUS is Aronia's latest generation of high-performance real-time spectrum analyzers. With a sweep speed of over 1 THz/s, it sets new standards in the USB compact class. Any number of devices can be cascaded to achieve an even higher real-time bandwidth. Thus, a real-time bandwidth of 1 GHz is already achieved by using only four SPECTRAN® V6 PLUS!
The included RTSA-Suite PRO software is precisely tailored to the powerful and robust hardware and supports the use of multiple SPECTRAN® V6 PLUS. The stackable aluminum housing facilitates the parallel use of multiple units.

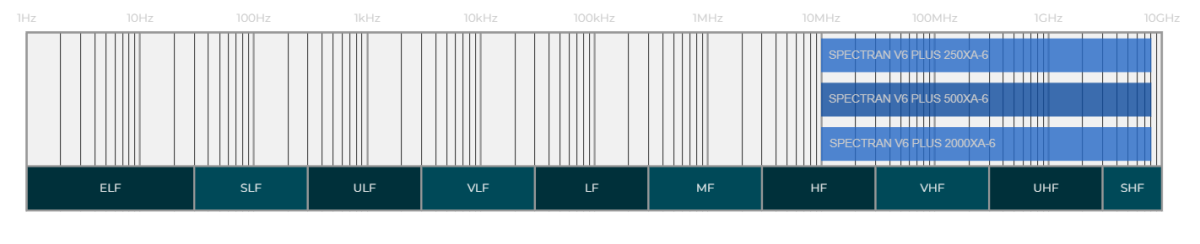

The SPECTRAN® V6 PLUS will initially be delivered in three variants: V6-250XA-6, V6-500XA-6 and V6-2000XA-6 - with a RTBW (Real-Time Bandwidth) of up to 245 MHz (via 2 x USB). The analyzer is compatible to all common Aaronia antennas.


Features

• Unlimited continuous 245 MHz True I/Q streaming via 2 x USB 3.0
• Dual receiver real-time bandwidth of 245 MHz
• I/Q vector signal generator with up to 245MHz Tx
• 6 GHz in less than 5 ms (1 THz/s) Sweep
• 960 million FFT points/s (120 million FFTs/s)
• Parallel measurement of multiple frequency bands
• POI up to 97 ns (FFT based) and 10 ns (I/Q-based)
• Lightweight and compact
• Stackable accessories
• Includes RTSA-Suite PRO software with daily updates

}
