即時頻譜分析儀

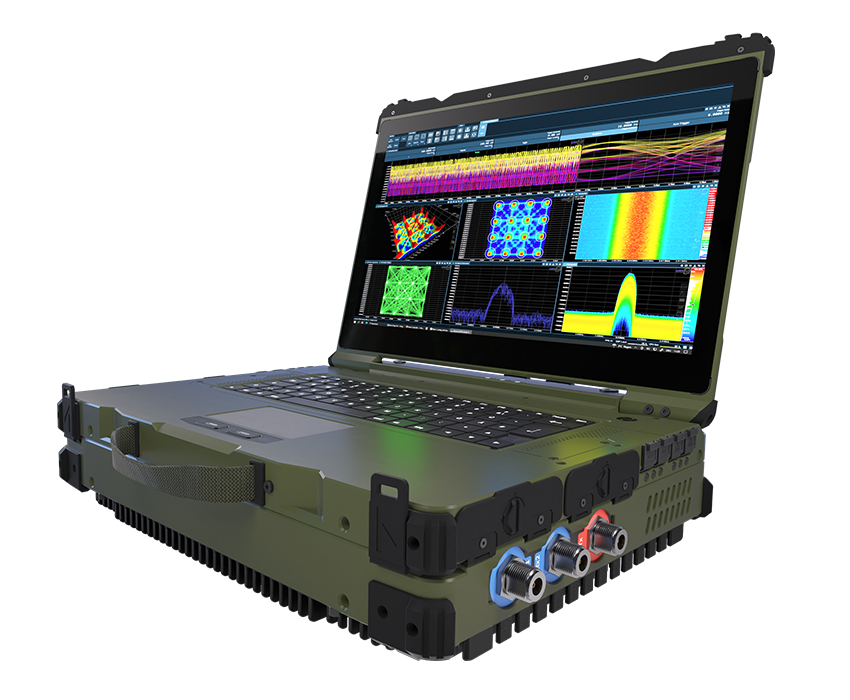

新型 SPECTRAN V6 MIL 是一款入門級即時頻譜分析儀，內建於功能強大、抗震性極強的戶外筆記型電腦中。它能夠以多種方式捕捉和顯示訊號傳輸，從而以前所未有的規模進行分析。

產品描述



整合式 SPECTRAN V6 頻譜分析儀可應付任何挑戰。無論是簡單的室外或室內頻率監測、高頻訊號測量、干擾脈衝定位或移動預合規測試，SPECTRAN® V6 都是快速可靠測量和詳細分析的理想頻譜分析儀。

儲存和重播 FFT 甚至 IQ 原始資料也是其功能之一：

SPECTRAN V6 MIL 的記錄時間僅受儲存硬碟大小（1 TB，最大可擴展至 16 TB）的限制，可記錄數小時的即時測量資料。記錄的資料可任意重新載入並重播，以便進行更深入的分析，如3D頻譜圖。

模組化 RTSA-Suite PRO 軟體已預先安裝並預先配置。它專門用於檢測寬頻率範圍內的未知訊號，直觀顯示訊號，詳細分析訊號，從而在必要時檢測未經授權的訊號傳輸。

功能特點

• 頻率範圍從 10 MHz 到 8 GHz。。
• 即時頻寬高達 245 MHz（I/Q）。
• POI: 97 ns（FFT），10 ns（I/Q）。
• 1 TB 固態硬碟（SSD） 或 最高 8 TB 硬碟。
• 在 5 ms（1 THz/s）內掃描 6 GHz。
• 即時和掃描頻譜分析儀合而為一。
• 非常適合反監視，例如偵測竊聽器。
• 通過 MIL-STD-810G 和 IP65 認證。
• 可調節的自動觸發器。
• 專利的多相位濾波器技術。
• 同時監控多頻段（如 : 3G、4G、5G、無線區域網路等）。
• 裝載 RTSA Suite PRO 使用軟體。

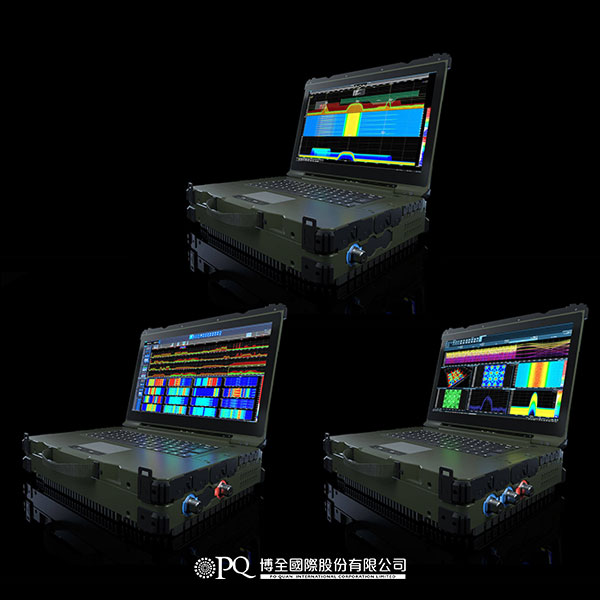

The new SPECTRAN® V6 MIL consists of an entry-level real-time spectrum analyzer built into a powerful and extremely shock-resistant outdoor laptop. It is capable of capturing and displaying signal transmissions in a variety of ways, enabling analysis on an unprecedented scale.

Description​

The integrated SPECTRAN® V6 spectrum analyzer is up to any challenge. Whether simple outdoor or indoor frequency monitoring, high frequency signal measurements, interference pulse location or mobile pre-compliance testing, the SPECTRAN®® V6 is the ideal spectrum analyzer for fast and reliable measurements, as well as detailed analysis.

Storing and replaying FFT or even IQ raw data is also part of the feature set: With a recording time limited only by the storage medium (1 TB, expandable up to 16 TB), the SPECTRAN® V6 MIL enables the recording of real-time measurement data over a period of several hours. The recorded data can be reloaded at will and replayed for more in-depth analysis, such as 3D spectrograms.

The modular RTSA-Suite PRO software is pre-installed and pre-configured. It has been specially developed to detect unknown signals in a wide frequency range, to display them intuitively, to analyze them in detail and thus to detect unauthorized signal transmissions if necessary.

Features

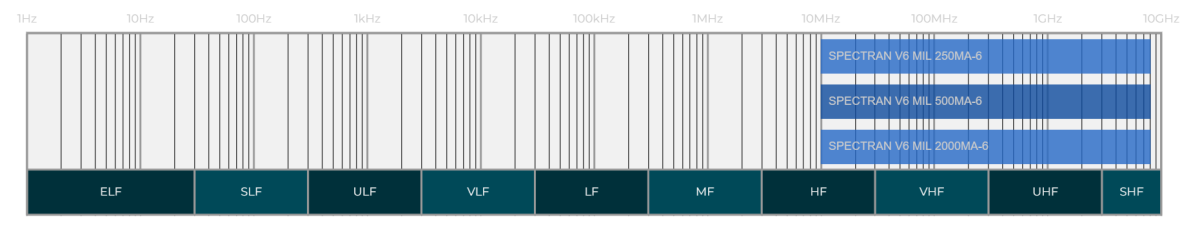

• Frequency range from 10 MHz up to 8 GHz
• Real-time bandwidth of up to 245 MHz (I/Q)
• POI: 97 ns (FFT), 10 ns (I/Q)
• 1 TB SSD / up to 8 TB recording memory
• Sweeps 6 GHz in less than 5 ms (1 THz/s)
• Real-time and sweep spectrum analyzer in one
• Perfect for counter-surveillance e.g. detection of bugs
• MIL-STD-810G and IP65 certified
• Automatic trigger adjustable
• Patented polyphase filter technology
• Simultaneous monitoring of frequency bands (3G, 4G, 5G, WLAN, etc.)
• RTSA Suite PRO software pre-installed
