即時頻譜分析儀

SPECTRAN® V6 Command Center具有高達 980 MHz 的即時頻寬（複合 I/Q），是適用於所有射頻應用的一體化解決方案。所使用的是最新硬體，最多可有四台頻譜分析儀無縫協作。Command Center是寬頻監控的隨身解決方案，也是我們 AARTOS 無人機偵測系統的一部分。


產品描述

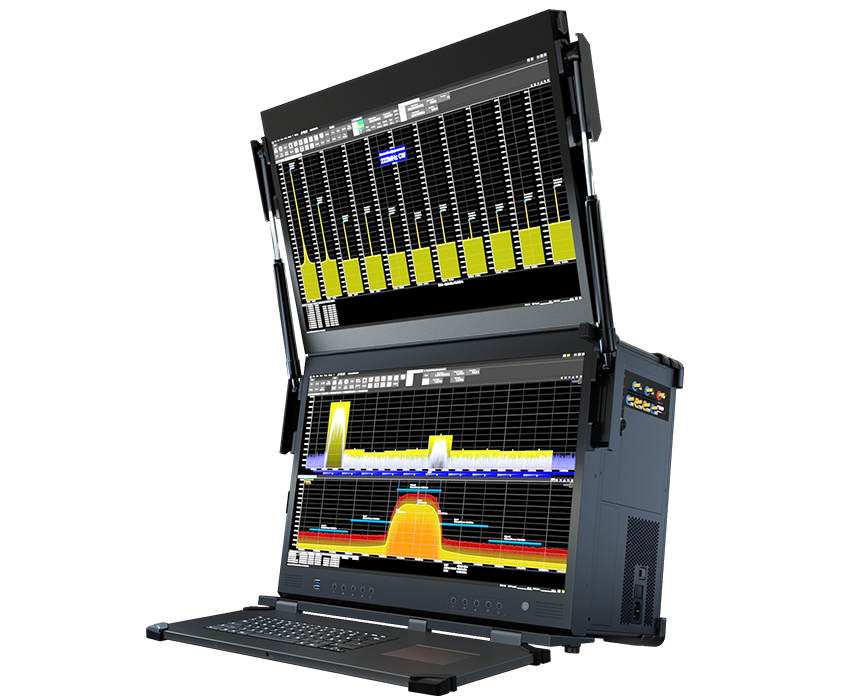

SPECTRAN® V6 Command Cente提供高達 980 MHz 的即時頻寬（複合 I/Q），頻率範圍從 10 MHz 到 8 GHz。這個基於 Windows 的系統設計，可用於行動寬頻監控和無人機探測，但也可用於任何射頻任務。提供的兩個 4K 寬螢幕顯示器和強大的硬體為同時測量、記錄和分析多個波段的訊號提供了所需的空間和動力。

SPECTRAN® V6 Command Cente 非常適合寬頻監控。高達 980 MHz 的即時頻寬與全新的 RTSA Suite PRO 軟體結合，可讓您同時即時監控多個頻段。 例如，您可以同時監控 2G、3G、4G、5G、GSM900、GSM 1800、WLAN 2.4 和 WLAN 5，並將其設定為對任何異常情況發出警報。

此外，還可以將非常特殊的訊號定義為警報觸發器。 另一種方法是使用 6 GHz 掃頻模式來監控從 10 MHz 到 6 GHz 的整個頻率範圍（可選 8 GHz）。 當不知道哪些頻率會出現非法訊號和干擾訊號時，這種方法非常有用。


應用實例

記錄

該系統可進行每週 7 天、每天 24 小時的無間隙監控和記錄。平均每分鐘產生 1 GB 的數據。這意味著，在需要進行任何傳輸或硬碟清理之前，可選的 120 TB 整合儲存容量足以儲存約 13 整天的資料。記錄的數據隨後可用於審計或作為支持的證據。


無人機偵測

SPECTRAN® V6 Command Cente亦可作為無人機偵測系統的一部分而開發設計的。這意味著，它與 IsoLOG 3D 天線陣列和 RTSA-Suite PRO 軟體一起，完全適用於無人機和其它訊號的探測和精確追蹤。該系統可以透過學習來偵測無人機以外的訊號模式，並在偵測到符合模式的訊號時發出警告或觸發其它操作。

功能特點

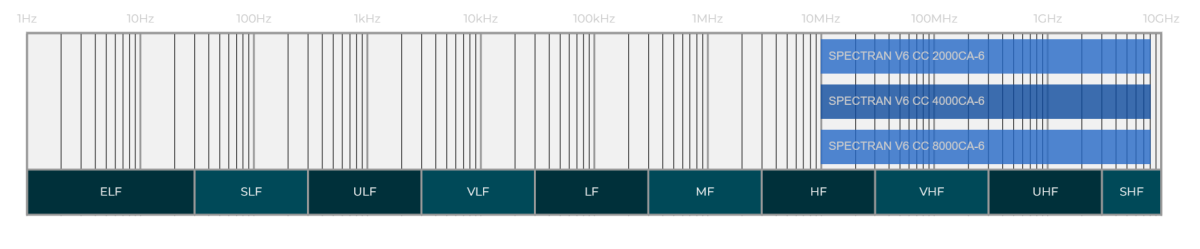

• 頻率範圍高達 10 MHz - 8 GHz。
• 高達 980 MHz 的即時頻寬。
• 掃描速度：高達 4 THz/s。
• 整合 I/Q 向量訊號產生器，即時頻寬高達 480 MHz。
• 取樣率：高達 8 x 2GSPS 16 bit  I/Q 資料。。
• 快速傅立葉變換(FFT) 速率：高達 3840 million FFT-points/s。
• 同時監控頻段（3G、4G、5G、無線區域網路等）。
• POI: 97 ns（FFT），10 ns（I/Q）。
• 兩個 4K 寬螢幕顯示器，總解析度為 3840 x 4320。
• 256 GB NVMe（作業系統），4 TB（可擴充至 120 TB）硬碟儲存空間。
• 可調節的自動觸發器。
• 通過 MIL-STD-810G 和 IP65 認證。
• 專利的多相位濾波器技術。
• 裝載 RTSA Suite PRO 使用軟體。

With up to 980 MHz real-time bandwidth (complex I/Q), the SPECTRAN® V6 Command Center is the all-in-one solution for all RF applications. Equipped with the latest hardware and max. four spectrum analyzer units working seamlessly together. The Command Center is the to-go solution for broadband surveillance and part of our AARTOS Drone Detection System.


Description

The SPECTRAN® V6 Command Center provides up to 980 MHz of real-time bandwidth (complex I/Q) and a frequency range from 10 MHz up to 8 GHz. The Windows-based system is designed for mobile wideband surveillance and drone detection, but can be used for any RF task. The two 4K widescreen displays, together with the powerful hardware, provide the space and power needed to measure, record and analyze signals on multiple bands simultaneously.

The SPECTRAN® V6 Command Center is perfect for wideband monitoring. The up to 980 MHz real-time bandwidth combined with the new RTSA Suite PRO software allow you to monitor numerous bands simultaneously in real time. For example, you could simultaneously monitor 2G, 3G, 4G, 5G, GSM900, GSM 1800, WLAN 2.4 and WLAN 5 and set it to alert on any anomalies. Alternatively, very specific signals can be defined as triggers for the alarm. Another option is to use the 6 GHz sweep mode to monitor the complete frequency range from 10 MHz to 6 GHz (opt. 8 GHz). This is useful when it is unknown on which frequencies illegal and interfering signals will appear.


Application examples

Recording

The system is capable of gaplessly monitoring and recording, 24 hours a day, 7 days a week. It produces 1 GB of data per minute on average. This means, that the optional integrated 120 TB storage capacity would suffice for data of about 13 complete days, before any transfers or hard-drive clean-up is necessary. The recorded data can later be used for audits or as supporting evidence.

Drone Detection

The SPECTRAN® V6 Command Center was developed and designed as part of our Drone Detection System. This means that it, together with the IsoLOG 3D antenna-array and the RTSA-Suite PRO Software, is perfectly suited for the detection and accurate tracking of drones and other signals. The system can be taught to detect signal patterns other than drones, and give a warning or trigger another action once a signal that fits the pattern is detected.

Features

• Frequency range from up to 10 MHz - 8 GHz
• Up to 980 MHz real-time bandwidth
• Sweep speed: up to 4 THz/s
• Integrated I/Q vector signal generator with up to 480 MHz real-time bandwidth
• Sample rate: up to 8 x 2GSPS 16 bit I/Q data
• FFT Rate: up to 3840 million FFT-points/s
• Simultaneous monitoring of frequency bands (3G, 4G, 5G, WLAN, etc.)
• POI: 97 ns (FFT), 10 ns (I/Q)
• Two 4K widescreen displays with a total resolution of 3840 x 4320
• 256 GB NVMe (OS), 4 TB (expandable up to 120 TB) hard disk storage
• Automatic triggers adjustable
• MIL-STD-810G and IP65 certified
• Patented polyphase filter technology
• RTSA Suite PRO software pre-installed
