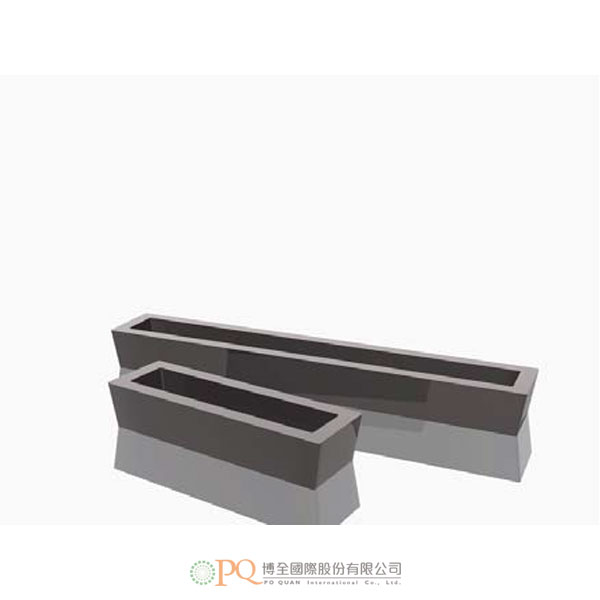

SIGRADUR G 船型

特殊形狀玻璃碳材料

Type	Volume ml	I1mm	I2mm	d mm	h mm
GCH 02	2	29	28	16	10
GCH 03	3	53	50	16	10
GCH 1	10	103	100	16	10
GCH 2	15	119	117	22	12
GCH 14	140	127	122	59	30

Crucibles and boats made of glassy carbon SIGRADUR® G are available in many standard forms. Applications are crucible liners for electron beam evaporation sources, crystal growth crucibles and melting crucibles. Further we can offer to you numerous cylindrical and conical standard crucibles and custom-made products.


Type	Volume ml	I1mm	I2mm	d mm	h mm
GCH 02	2	29	28	16	10
GCH 03	3	53	50	16	10
GCH 1	10	103	100	16	10
GCH 2	15	119	117	22	12
GCH 14	140	127	122	59	30
