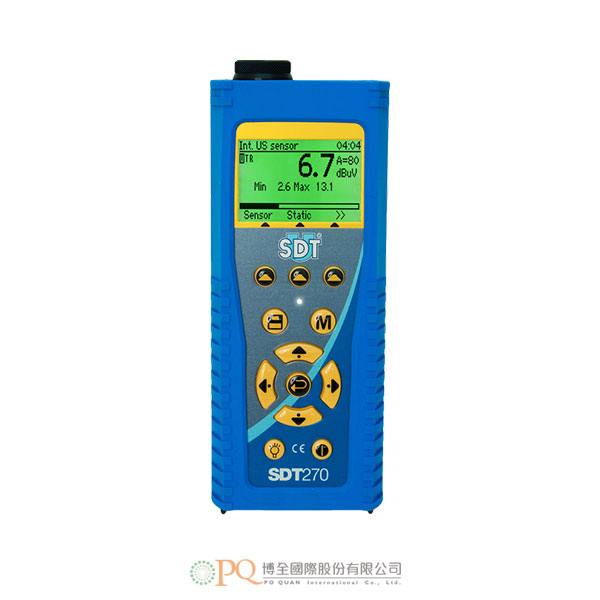

SDT270 多功能超音波測漏儀
型號:SDT270SDT270 超聲波檢測儀,是現今世上最先進、功能最多、應用最廣泛的超聲波檢測系統,系統的功能及特點:
- 探頭靈敏度極高
- 可錄取存儲及分析超音波
- 可儲存超音波值
- 可把超音波轉成人耳能聽的聲波,並能即時判斷有否故障
- 可把歷次測量資料建成資料庫管理,方便分析預測趨勢
-
SDT270 超聲波檢測儀,是現今世上最先進、功能最多、應用最廣泛的超聲波檢測系統,系統的功能及特點:
- 探頭靈敏度極高
- 可錄取存儲及分析超音波
- 可儲存超音波值
- 可把超音波轉成人耳能聽的聲波,並能即時判斷有否故障
- 可把歷次測量資料建成資料庫管理,方便分析預測趨勢
SDT270 是一台為預防性維護(PDM)而設計的可擕式超聲波檢測儀。系統同時具有紅外測溫功能和鐳射轉速測量,以獲取溫度和轉速資料。 SDT270 也是第一個包含一個SQL 資料庫的可擕式超音波檢測儀,這項功能允許同時收集多類型的檢測資料,包括:不同探頭的超音波強度、記錄的超音波音訊、溫度及轉速等資料,創建成資料庫,以便分析。
SDT270 是第一個以True Amplitude(全真振幅) 記錄的超音波檢測儀器,這項技術令超音波首次能夠以精確的音效檔保存在資料庫中,方便日後對超音波檔進行比較和趨勢分析。SDT270 每秒可捕獲多達25 萬個的超音波信號樣本。檢測結果是非常明確、精準且可比較的時間信號,這些信號存儲在系統龐大的內部記憶體中,以方便使用Ultranalysis Suite Software(UAS)軟體進行資料管理,音訊分析及生成報告。 -
功 能
多功能超音波探測儀 顯 示
高解析度、帶背光LCD,128×64圖元 鍵 盤
12個功能鍵 內置感測器
超音波感測器、溫度感測器(選配)、轉速感測器(選配) 外置感測器
通過特定的連接器(LEMO7針式連接器) 資料記錄
SDT270(SD,DD)存儲+靜態下載:20測量節點,每個測量節點可存多個資料,共可存4000個測量資料。
SDT270(SU,DU)與資料庫軟體UAS配合使用:靜態測量(dBμV, ℃,RPM,dBA,SCFM,SCCM)
超過10000靜態資料測量節點。動態測量(記錄波形):13分鐘。通 訊
資料下載至電腦通過USB介面:(適用於SD和DD型)資料下載電腦並用UAS軟體分析:(適用於SU和DU型) 電 源
充電電池:4.8V 4400 mAh鎳氫電池使用時間:8個小時(使用背光會減少時間),標準容量:4.4Ah ,
壽命:500-1000次充電/放電迴圈保護:短路,反接或溫度保護自動關機
預設時間自動關機 工作溫度
-15℃到+60℃ 外 殼
軋製鋁材,橡皮保護套 尺 寸
226 x 40 x 90 mm(L x H x W) 重 量
約830克(含電池和皮套) -
- Measure Ultrasound, Vibration, RPM and Temperature in one box
- 4 Condition Indicators for a more thorough diagnosis: (RMS, Max RMS, Peak, and Crest Factor)
- Two Channel Inputs for sensors and accessories
- Intrinsically safe version available for potentially explosive environments
- Record clear, accurate, scaled, comparable Dynamic data in a wave format
- Upgradeable firmware to flexibly grow with your program
- Remote support and training
- Device and sensors are calibrated to ensure consistent, repeatable performance
-
Built-In Measurements Ultrasonic sensor, infrared temperature sensor (optional)
and Tachometer (optional)Minimum sensitivity Class I instrument exceeding ASTM 1002- 11 requirements
for gas leak detection with the appropriate sensorExternal Sensors 2 ports (Lemo 7pin connector) Headphones high quality industrial headset having a Noise Reduction Rating
(NRR)of 25 dBData Logger SS/SD at least 4000 Static measurements spread over 1000 locations Intrinsically Safe ATEX certification meets directive 94/9/ EC
(II 1 G Ex ia IIC T3/T2 Ga)comparable to Class I, Div 1,
groups A, B, C & DData Logger DD idem SS/DD plus 15,000 seconds of Dynam- ic data @8k
sampling rate or 3,700 seconds for 32kPhysical Characteristics Housing: Extruded Aluminum Weight: 830g /29.3oz
(with battery & holster)
Dimensions: 226 x 90 x 40mm
(8.9 x 3.54 x 1.57 inches)Data Logger SU/DU at least 10,000 Static measurements and 15,000 seconds of
Dynamic measurements @8k sampling rate or
3,700 seconds@32k spread over 10,000 locationsCommunication USB Interface Protective Casing Shock Resistant Silicone Battery Pack Rechargeable 8 cell 4.8v, 4600mAh NIMH Auto Power Down After preset time - adjustable by user Safeguards (Battery) Short-circuit, reverse polarity & tempera- ture protection Response Time <9 milliseconds
