SDT > 超音波測漏設備

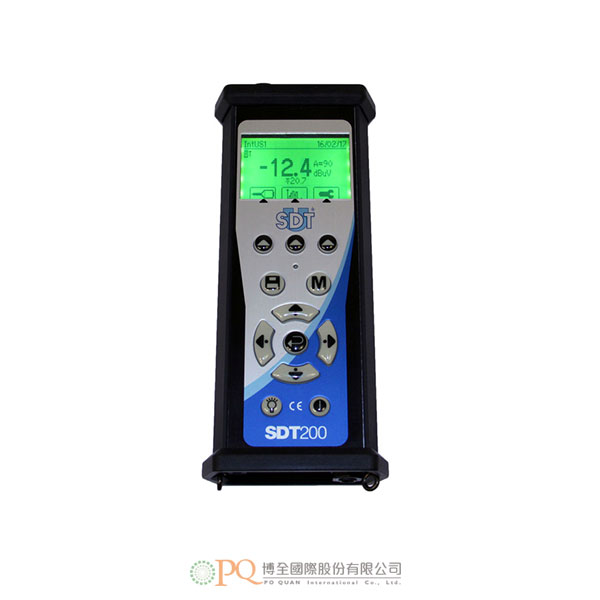

SDT200 多功能超音波測漏儀

型號：SDT200

產品特點產品規格 Features Specifications

Reducing your energy costs is a difficult challenge faced by many industries in today’s economy. But, it doesn’t have to be.

Undetected air or steam leaks, bearing failures and electrical panel faults cost you real money. There’s a way to cut these extra expenses from your energy bill.
Preserve the health of your assets with the SDT200 ultrasound detector. Hear air leaks, trend and monitor the condition of your bearings, safely inspect electrical panels and schedule repairs on your own terms, long before they shut you down – all with ultrasound technology.

ATEX Certified

The SDT200 meets the requirements set by ATEX for use in the most dangerous and potentially explosive atmospheres in the world. For the first time, ultrasound inspectors working in intrinsically safe-rated zones now have access to the unique and advanced features of the SDT200.

Function	Multifunction detector	Software for transferring data to PC	DataDump Application
Display	Graphic LCD with backlighting (128 x 64)	Auto power down	Auto power down after preset time
Keyboard	12 function keys.	Operating temperature	-15 °C to +60 °C / 14 °F to 140 °F non condensing
Built-in sensors	Ultrasonic sensor, Pyrometer (according to the version)	Housing	Extruded Aluminum
External sensors	Through specific connector (Lemo 7 pin connector)	Dimensions	226 x 90 x 40mm (8.9 x 3.54 x 1.57 inches)
Data Logger	– 20 Measurement Nodes (measurement points) – Total 4000 Measurements (measurements data)	Weight	±770 g / 27 oz.
Communication	USB interface	Headphone	Noise isolating, NRR 25 dB (tested in an accredited NVLAP laboratory)
Battery pack*	Rechargeable battery type: 8 cell, 4.8 V, NiMH (Nickel Metal Hydride) Nominal capacity: 4.4 Ah Life span: 500 to 1,000 charge/discharge cycles Autonomy: 6 to 7 hours Protections: short-circuit, reverse polarity and temperature protected	*	for optimum performance, this battery pack is equipped with an electronic management system (includes digital serial number, capacity and temperature management).
