Electrothermal > RS Series Reaction Stations
11-STEM-1_PQ

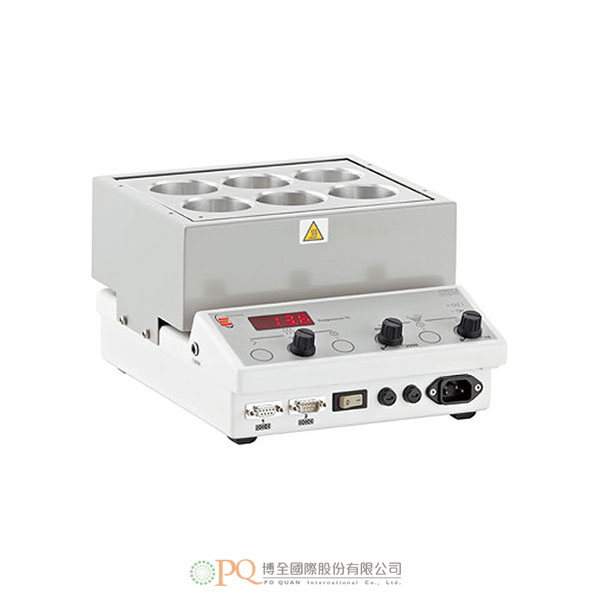

RS600 STEM Reaction Blocks

RS600 STEM Reaction Blocks 型號：RS600
  • Six position reaction block designed for 57.5mm diameter vessels
  • Can also accommodate 40mm and other diameter vessels with appropriate adaptor sleeves
  • Sample sizes up to 250ml
  • Controlled temperature range from ambient +5°C to 250°C
  • Powerful stir speed from 400 to 2000rpm, including a bi-directional stirring option
  • Manual control or external control via the RS232/RS485 interface ports
  • Compact footprint for easy integration onto a robotic platform
加入洽詢
產品特點 產品規格 Features Specifications

  • The STEM RS600 Reaction Station has 6-positions which may be programmed to run at the same temperature and stirring rate simultaneously. It is designed for use both as a standalone unit but also for incorporation onto robotics platforms.

    Key features

    • Six position reaction block designed for 57.5mm diameter vessels
    • Can also accommodate 40mm and other diameter vessels with appropriate adaptor sleeves
    • Sample sizes up to 250ml
    • Controlled temperature range from ambient +5°C to 250°C
    • Powerful stir speed from 400 to 2000rpm, including a bi-directional stirring option
    • Manual control or external control via the RS232/RS485 interface ports
    • Compact footprint for easy integration onto a robotic platform
  • Model RS600
    Stirred Positions 6 x 57.5mm
    Sample Volume Up to 250ml
    Stir Speed Range 400 to 2000rpm
    Soft Start (to full ramp) 0 - 10mins (adjustable)
    Temperature Range (ambient) + 5 to 250°C
    Temperature Stability ± 0.5°C
    Time to maxmin temperature 15 min
    Dimensions (w x d x h) 248 x 157 x 312mm
    Shipping weight 10kg

  • The STEM RS600 Reaction Station has 6-positions which may be programmed to run at the same temperature and stirring rate simultaneously. It is designed for use both as a standalone unit but also for incorporation onto robotics platforms.

    Key features

    • Six position reaction block designed for 57.5mm diameter vessels
    • Can also accommodate 40mm and other diameter vessels with appropriate adaptor sleeves
    • Sample sizes up to 250ml
    • Controlled temperature range from ambient +5°C to 250°C
    • Powerful stir speed from 400 to 2000rpm, including a bi-directional stirring option
    • Manual control or external control via the RS232/RS485 interface ports
    • Compact footprint for easy integration onto a robotic platform
  • Model RS600
    Stirred Positions 6 x 57.5mm
    Sample Volume Up to 250ml
    Stir Speed Range 400 to 2000rpm
    Soft Start (to full ramp) 0 - 10mins (adjustable)
    Temperature Range (ambient) + 5 to 250°C
    Temperature Stability ± 0.5°C
    Time to maxmin temperature 15 min
    Dimensions (w x d x h) 248 x 157 x 312mm
    Shipping weight 10kg
