高壓釜試驗儀

RB Series™ 是一種可移動的裝置，用於測量壓力範圍高達 5,000 bar的火炮推進劑的燃燒參數（壓力-時間曲線、活度、壓力梯度、最大壓力、威力等）。RB 系列是用於點火、測量和評估的全套專業系統，並配有選定的高壓釜 (封閉容器 )。

應用

RB 系列儀器用於測量火炮推進劑的燃燒壓力曲線，特別適用於火砲推進劑製造和在役監測過程中的研究、開發和品質控制。

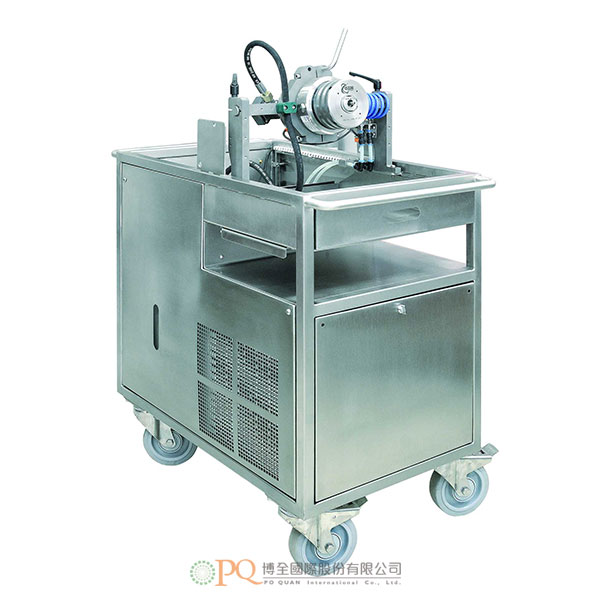

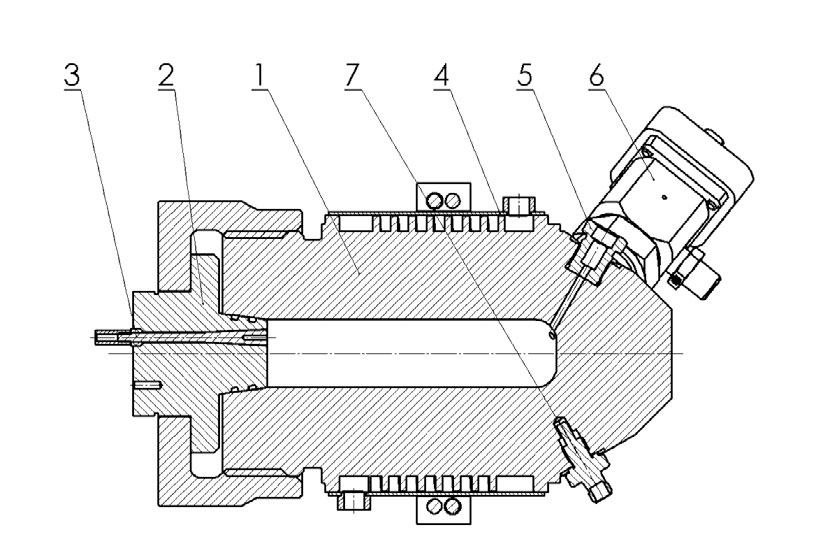

支架上的 RB 200 高壓釜， 配有冷卻裝置和容器組件示意圖： 1.壓力容器 2.帶蓋子的擰緊螺母 3.電氣導火裝置 4.冷却水出口 5.壓力感測器接頭 6.氣體釋放閥 7.溫度感測器

優勢和特點

• 高壓釜：圓柱形不鏽鋼容器製成。
• 工作壓力最高可達 5,000 bar。
• 以燃燒的火炮推進劑進行 6,000 bar 耐壓測試。
• 配置可用於正確點火和訊號分析的 EDA 分析儀。
• ABSW™ 軟體用於操作和評估結果。
• 獨特的試樣容器設計可以輕鬆進行清潔。

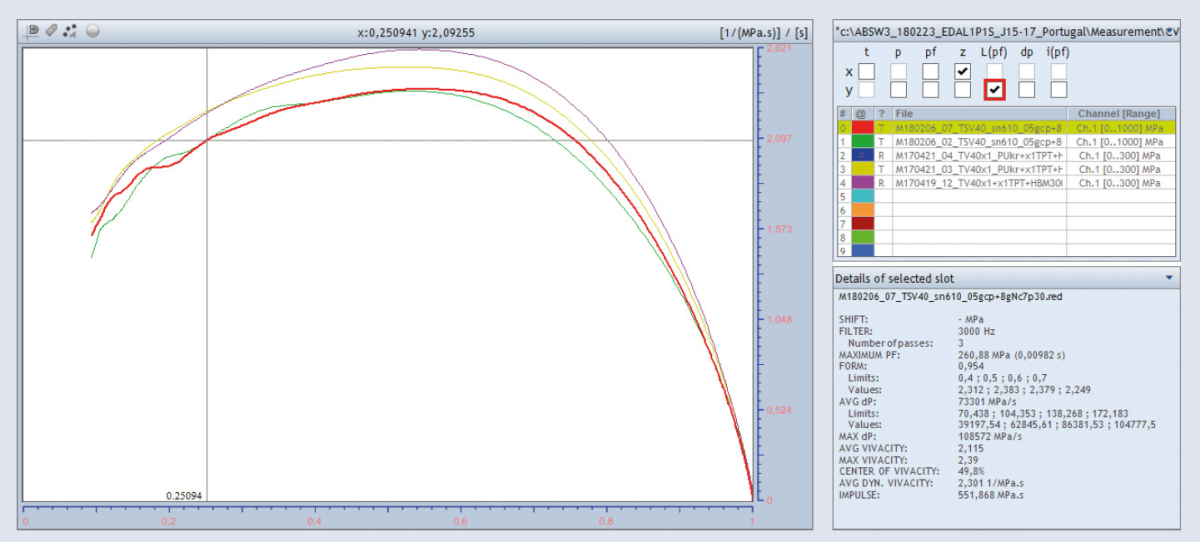

ABSW軟體-活度評估圖

合規

• STANAG 4115
• MIL-STD 286C

The RB Series™ is a portable instrumentation for measurement of the burning parameters (pressure-time profile, vivacity, pressure gradient, maximum pressure, force etc.) of gun propellants in the pressure range up to 5,000 bar. The RB Series is fully professional system for ignition, measurement and evaluation, coupled with selected closed vessel.


APPLICATIONS

The RB Series apparatus is used for measuring the burning pressure profile of gun propellants. The RB Series are especially suitable for research, development and quality control in the manufacture and in-service surveillance of gun propellants.


RB 200 vessel on support stand with Chiller unit and schematic vessel parts: 1.Pressure vessel 2.Breech nut with lid 3.Electrical ignition 4.Water cooling jacket 5.Pressure transducer adapter 6.Gas release valves 7.Temperature sensor

ADVANTAGES & FEATURES

• Heavy-duty closed vessels made of high-strength stainless steel
• Working pressure up to 5,000 bar
• 6,000 bar proof pressure tested by burning gun propellants
• An analyzer for proper electric ignition and signal analysis
• The ABSW™ software for operation and evaluation of results
• Unique design of the test vessels allows for easy access for their cleaning



ABSW software – vivacity evaluation chart

COMPLIANCE

• STANAG 4115
• MIL-STD 286C
