PYREX

• Composition:  81% SiO2 ‐ 13% B2O3 ‐ 3,5% Na2O ‐ 2,5% Al2O3
• Operating temperature:  ‐40 ÷ +100 °C
• Sheath thermal conductivity:  1,4 W/(m*K)
• Surface electrical resistivity:  10^17 Ω/cm²

APPLICATIONS:

They are mostly used in the galvanic baths or in open baths with chemical aggressive products.

 Note: on request we manufacture special models, in appropriate quantities.

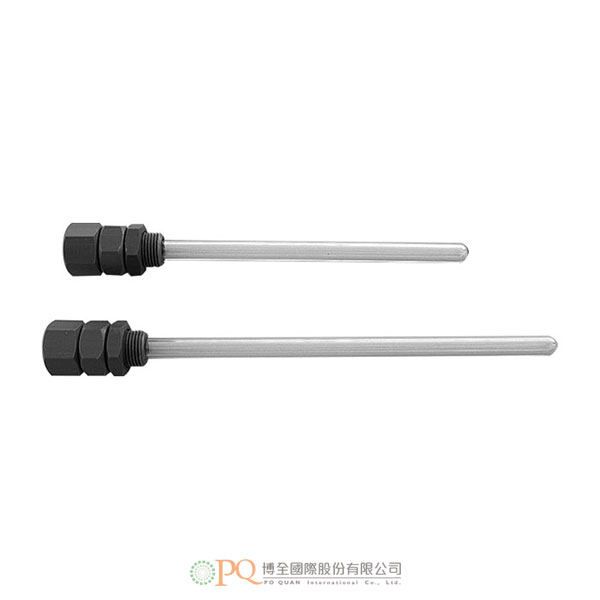

• Pyrex glass tube closed at the bottom, of variable length.
• Internal diameter 7.6 mm ‐ External diameter 12 mm
• Grey PVC fitting in three parts with fixing thread and 1/2" sealing lock nut
• Sealing with bi‐component resin resistant to chemicals and to a maximum temperature of 120 °C
