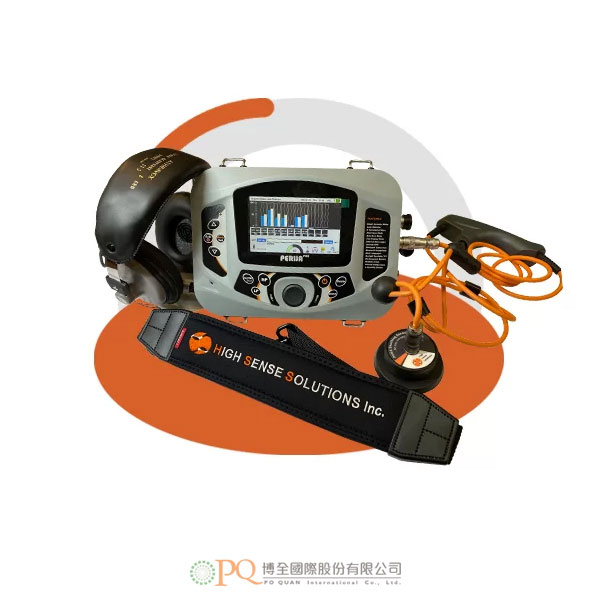

管道洩漏探測儀

Sensor

Piezoelectric type, Pick-up
(equipped with characteristic ball to break wind noise) IP67 equivalent (water depth 1m, 30 minutes)
Power Supply Voltage 3.3V

Sensitivity

Total sensitivity 900V/G or higher (400Hz)

Amplification

59dB±3

Frequency Range

100 – 1200 Hz

Band Pass Filters

9 Selectable band pass filters High Pass: 100, 200, 400 Hz
Low Pass: 600, 800, 1200 Hz

filteROT™ Mode

Filter Rotation Mode

Activation

Manual MUTE key on hand-switch

Display

5” Color sunlight readable TFT (with 1000 nuts backlight)
Backlight: ON, OFF, Auto adjustment (Depend on environment light)
Multi languages: English / French selectable
(Please contact us for Chinese, Spanish, Turkish, Arabic…)
Measuring and displaying values:

• Signal Strength
• Minimum Signal Strength
• Average Signal Strength

Display values in numeric, Bar-graph and Line-graph (Selectable with SWAP Key) The user can mark each signal as a leakage value also, unmark or Delete.

• Date and Time
• Continuous GPS Data
• System Temperature and Humidity
• Battery Level
• Memory Capacity
• Headphone Status
• Sensor Status
• Bluetooth Status
• Sensitivity Level

Battery

3 x 3.7V / 3500mAh 18650 Li-ion Rechargeable Battery Pack, Unreachable 100 - 240V, 50/60Hz Fast Charger
PERIJA PLUS is equipped with Power Management System.

Audio

System alarm / 8-ohm stereo headphone / Bluetooth headphone support Module standard Bluetooth 4.0 Class 2 Bluetooth, FCC, and CE certified Backwards compatible with 1.1, 2.0, 2.1 + EDR and 3.0
Minimum Operating Range 5m

GPS

Internal GPS / CEP 2.5m, Refresh time 1 sec

Leak noise level recording function

The data of 1,200,000 places can be recorder in the memory of main unit.
User can use the data for check, Compare, report’s attached data, display on
Google map and navigation path.

Memory

PERIJA PLUS is equipped with Automatic Data Storage. (Trigger with MUTE Key)
Total memory capacity: 1,200,000 data frames
Data Frame Included Date, Time, GPS, Signal Value, Sensitivity Level, Filters, Temperature, Humidity and Setting Data
Internal memory included 30 folders, 20 projects per folder and 2000 data frames per project that each data is manageable in system setting.

Operation Condition

Operation Temperature: -10 to +50 °C / 14 to 122 °F
Storage Temperature: -20 to +60 °C / -4 to 140 °F Dustproof and water-resistant function were equipped. Even if light rain and water splash on the site is ok.

Data Communication

Bluetooth for data transferring to “HSS Water Leak Detection APP”

Smart-phones APP

HSS Water Leak Detection APP (for Android version of smart-phones and tablets)

Transport

Hard case, NANUK 930 with IP-68 protection

Dimension

Main Unit - (L x W x H): 5.3” x 2.7” x 1.2” (136 mm x 60 mm x 30 mm) Standard package - (L x W x H): 7.4" x 5.1" x 2.6" (188 mm x 130 mm x 65 mm)

Weight

Main Unit: ~ 1.75 Kg / 3.88 Lb
Pick-up sensor with hand-switch set: ~ 0.57 Kg / 1.26 Lb Standard package: ~ 6.55 Kg / 14.45 Lb

Standards

Contains IC: 11012A-BC127 / Contains FCC: SSBC127-X
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warranty

1 Years Limited Warranty 5 Years after sales service

Made in CANADA

With domestic and foreign components.

3 x Contact bar (3 x 300mm) + Ø 40mm Disk Plate

Aviation Headphone (Optional)

Aviation grade stereo headphone
