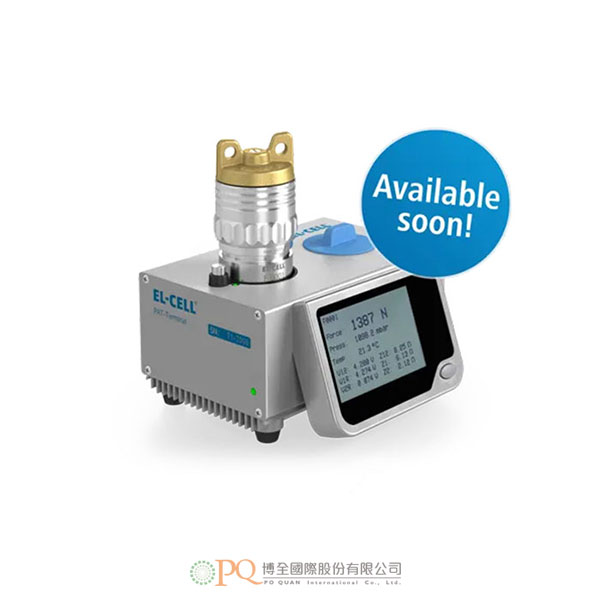

PAT-Terminal-1

Powerful assistance in the glovebox

Product description
The PAT Terminal-1 greatly simplifies your workflow when assembling PAT series test cells in the glove box. It is an advanced PAT-Channel-1 that can perform impedance measurements and other quick functional tests of your test cells as a stand-alone device.

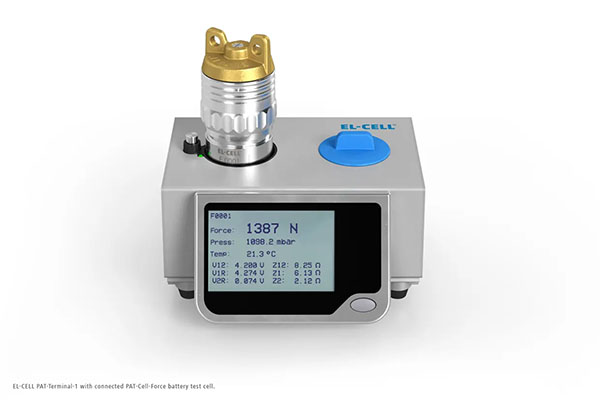

Insert the newly built cell into the PAT-Terminal-1 and directly read the electrical values and sensor signals like force, pressure, or dilation on the large display.
This allows you to make precise sensor adjustments for in-situ cells such as the PAT-Cell-Force directly in the glove box or to check the electrical values immediately after assembly.

Of course, the PAT-Terminal-1 is also a fully equipped test channel with all PStat / GStat / EIS abilities and can be connected as usual to the controller unit of a PAT-Tester-x-8.

Specifications

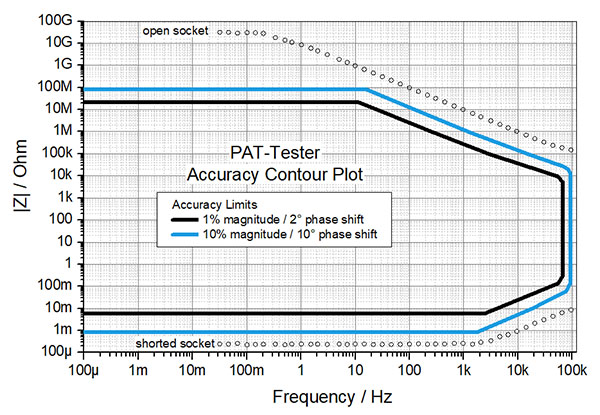

Accuracy Contour Plot

General

Voltage

Current

Impedance (each channel)
