The PAT series docking station for up to four PAT-Cells

Product description

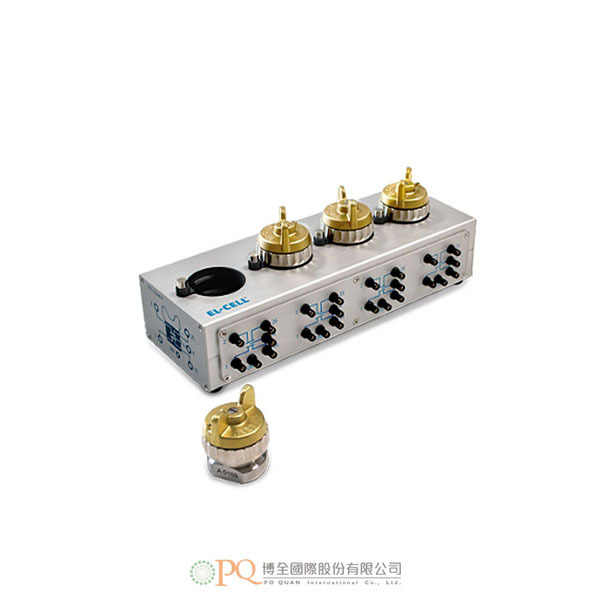

The PAT-Stand-4 is a docking station connecting up to four PAT-Cells to any potentiostat or battery tester. The connection is made via the banana sockets at the side of the PAT-Stand-4.
The PAT-Stand-4 saves wiring effort, because it is not necessary to renew the connection between cell and potentiostat for every battery test.

If you want to perform simultaneous battery tests with multiple PAT-Cells, the PAT-Stand-4 is the ideal docking station for you. You can even reuse the PAT-Cells later in the larger PAT-Stand-16 or PAT-Tester-i-16.

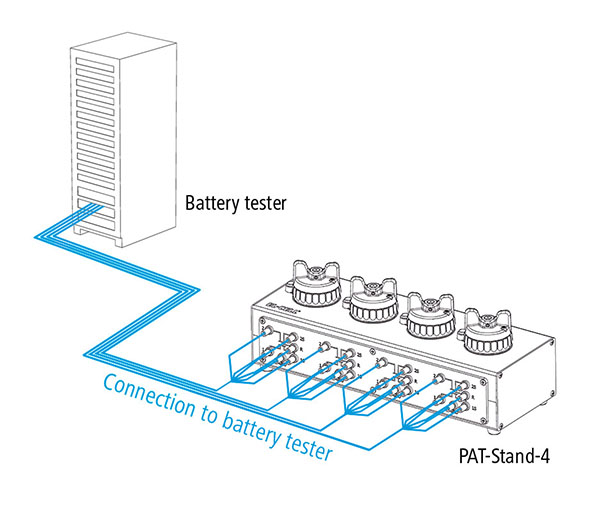

Schematic view of a connected PAT-Stand-4 setup

Gallery

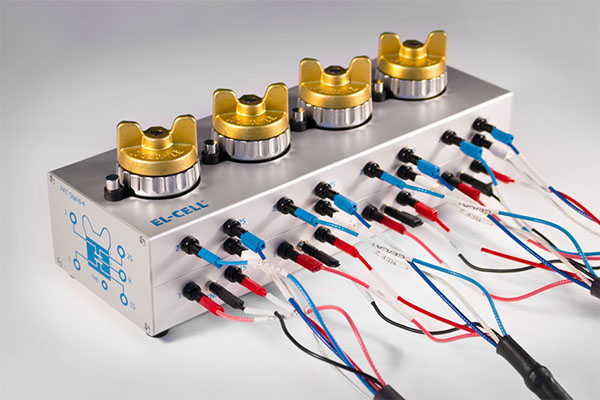

PAT-Stand-4 connected to a Bio-Logic VSP potentiostat.

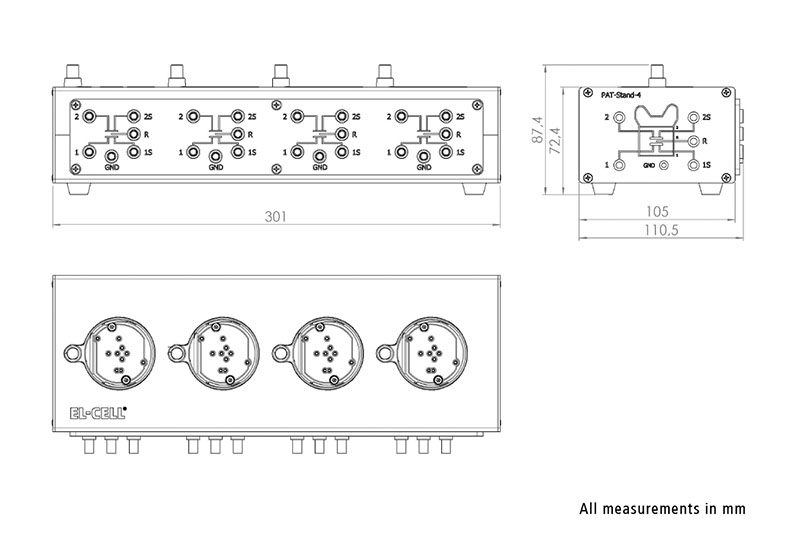

Height	84/114 mm (without/with PAT-Cells)
Width	301 mm
Depth	119 mm
Weight	approx. 0.67 kg (without PAT-Cells)
Temperature resistance	-20 to 70° C

Name	# Cell connections (PAT Socket)	Operational temperature	Temperature controlled cell chamber	Charge / Discharge / EIS*	Data Logger***	Measurements in mm (Height/Width/Length)
PAT-Clamp-1	1	-20 - 70 ° C		Yes		21 / 62 / 80
PAT-Stand-1	1	-20 - 70 ° C		Yes		80 / 113 / 105
PAT-Stand-4	4	-20 - 70 ° C		Yes		84 / 119 / 301
PAT-Heater-4	4		up to 200 ° C**	Yes		230 / 265 / 400
PAT-Stand-16	16	-20 - 70 ° C		Yes	Yes	120 / 315 / 315
PAT-Chamber-16	16		10-80 ° C	Yes	Yes	375 / 640 / 380

* Compatible with any PAT series test cell
** 10 °C above average room temperature to 200 °C
*** Independent data acquisition of cell data (current, full- and half-cell voltages), pressure (only PAT-Chamber-16) and temperature. EC-Link monitoring software is provided.
