PAT-Stand-16

The high throughput docking station for up to 16 PAT-Cells

Product description
The PAT-Stand-16 is the docking station for up to 16 PAT-Cells in 4 x 4 matrix. The PAT-Stand-16 has a built-in data logger recording full and half cell voltages, cell current, tray temperature and time. The PAT-Stand-16 can be connected permanently to a usual multi-channel potentiostat (like the Biologic MPG-2 or VMP300) or battery tester (like the Maccor 4000).

This way, the PAT-Stand-16 saves wiring effort, because it is not necessary to renew the connection of cell and potentiostat for every battery test. The PAT-Stand-16 fits nicely into a usual climate chamber (for example Binder KB53), which saves space in the lab.

All these features make the PAT-Stand-16 with the PAT-Cells the optimal solution for high throughput battery testing.

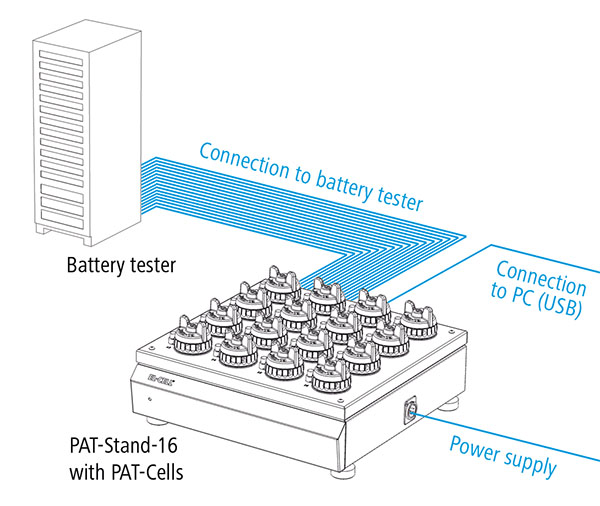

Schematic view of a connected PAT-Stand-16 setup

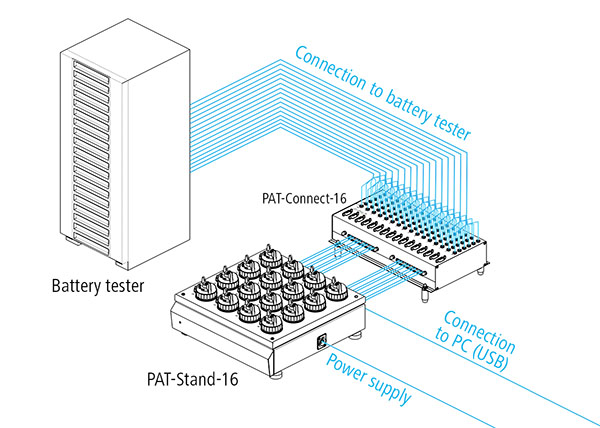

Schematic view of a connected PAT-Stand-16 with PAT-Connect-16 for flexible wiring

Gallery

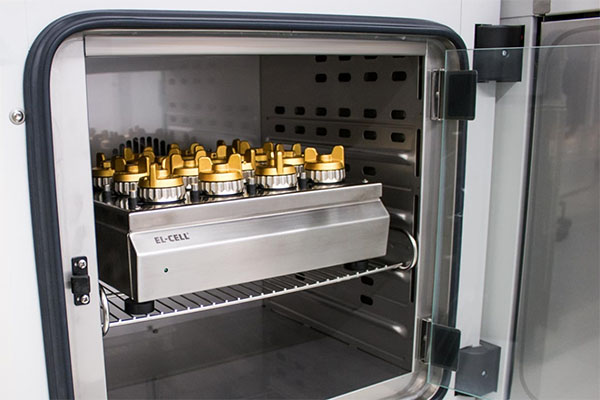

Testing with the PAT-Stand-16. The PAT-Stand-16 fits nicely into usual climate chambers.

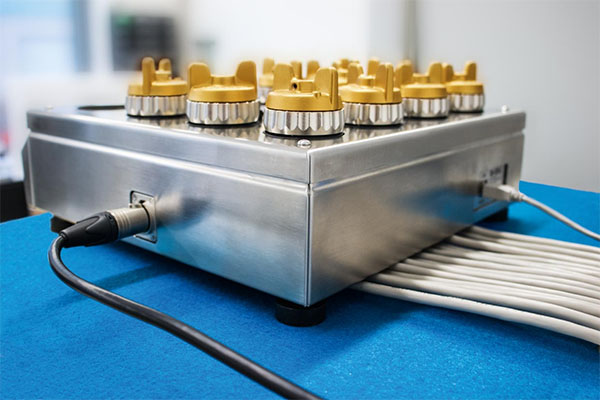

The PAT-Stand-16 can be left permanently connected to a multichannel  potentiostat. There is no need for connecting cables each time a new test is started.

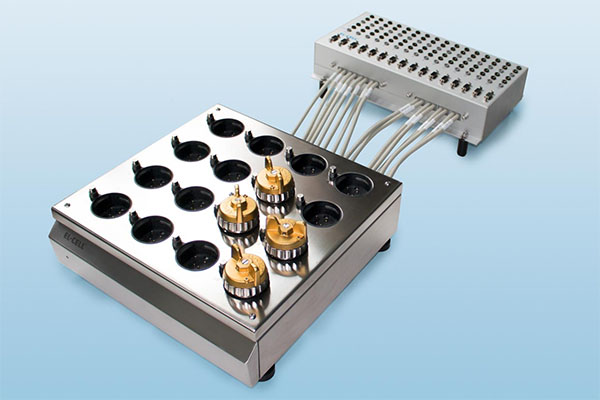

PAT-Stand-16 connected to a PAT-Connect-16.

* Compatible with any PAT series test cell
** 10 °C above average room temperature to 200 °C
*** Independent data acquisition of cell data (current, full- and half-cell voltages), pressure (only PAT-Chamber-16) and temperature. EC-Link monitoring software is provided.
