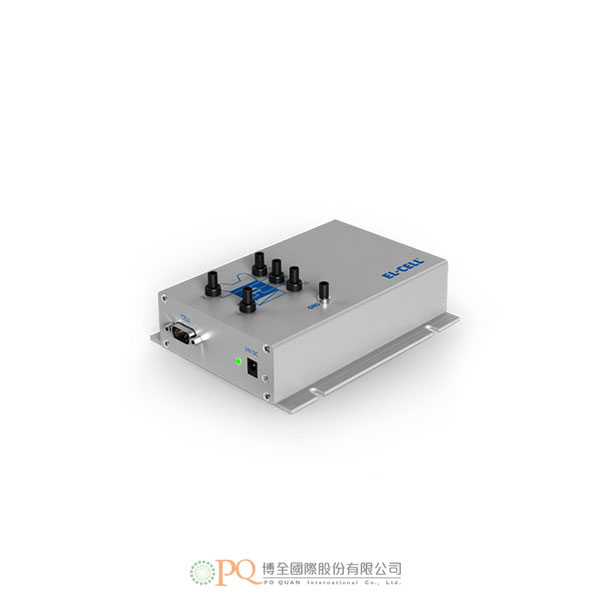

PAT-Press-Box

Box with data logger for gas pressure measurements with PAT series test cells

Product description
The PAT-Press-Box is required to read and record the analog pressure signal of a PAT series test cell when the cell is used in a docking station that does not provide this functionality itself. The box is placed between the docking station and the used potentiostat. The integrated data logger records the pressure signal and transmits it to the connected PC. It can then be displayed with the supplied EC-Link software.

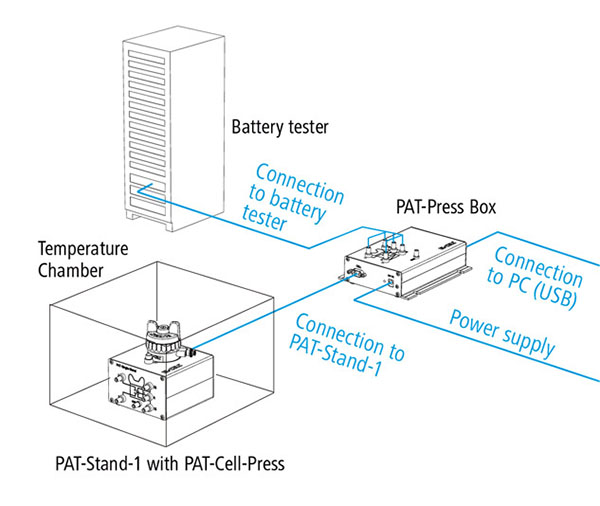

Schematic view of a connected PAT-Press-Box
