PAT-Heater-4
PAT-Heater-4 型號：PAT-Heater-4Heated docking station connecting up to 4 PAT-Cell-HT.
- Heated chamber from 10°C > ambient temperature up to 200°C
- 4 x 1 docking station for up to four PAT-Cell-HT
- Flexible wiring due to easy-to-access banana sockets
-

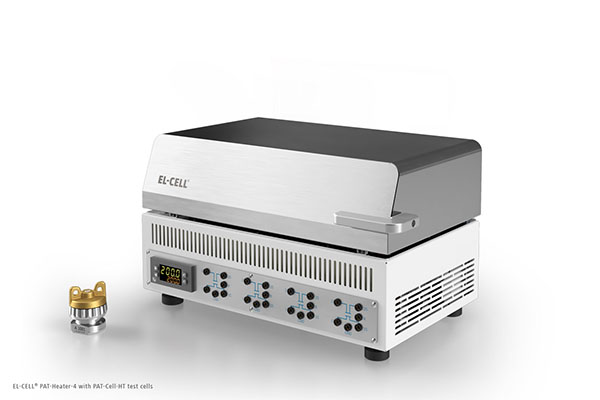

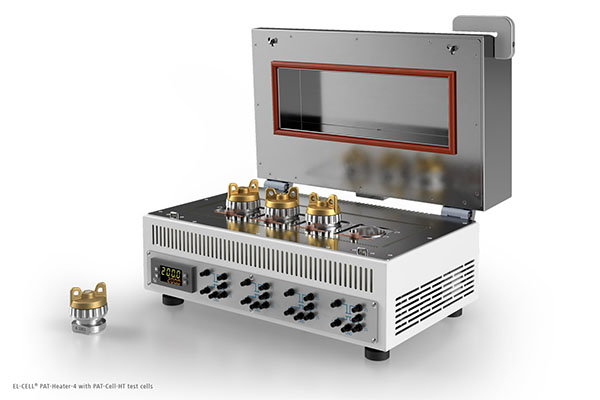

Heated chamber for four PAT-Cell HT
Product description
The PAT-Heater-4 is a heated docking station connecting up to 4 PAT-Cell-HT to any potentiostat or battery tester. The working temperature is adjustable from 10°C above ambient temperature up to 200°C. The PAT-Heater-4 saves wiring effort, because it is not necessary to renew the connection between cell and potentiostat for every battery test. However the easy-to-access banana sockets at the side of the docking station allow for flexible wiring.The PAT-Heater-4 is the temperature controlled docking station for parallel electrochemical tests with high temperatures up to 200°C.
Please note that only PAT-Cell-HT test cells can be used in the PAT-Heater-4. You cannot use other PAT test cells there to prevent damage to cell components that are not designed for high temperatures.
Gallery
-

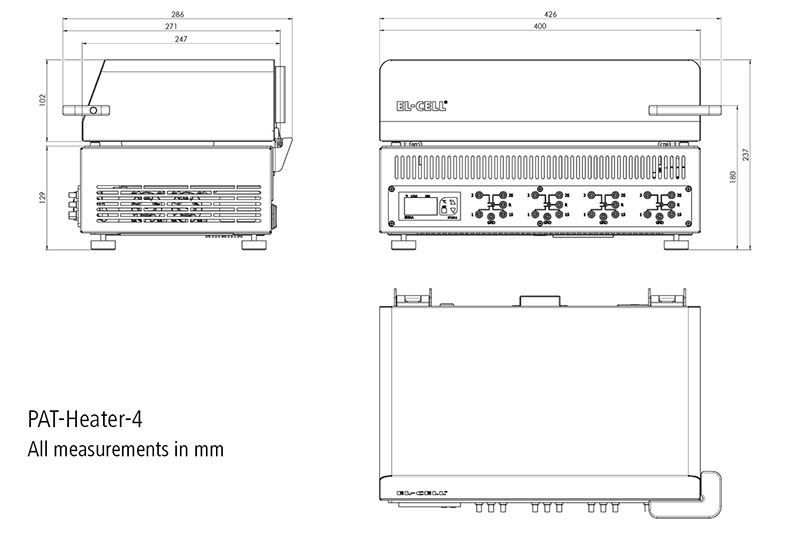

Height 230 mm Width 400 mm Depth 265 mm Weight 14 kg (without test cells) Operating temperature range 20 to 200° C
Name # Cell connections (PAT Socket) Operational temperature Temperature controlled cell chamber Charge / Discharge / EIS* Data Logger*** Measurements in mm (Height/Width/Length) PAT-Clamp-1 1 -20 - 70 ° C Yes 21 / 62 / 80 PAT-Stand-1 1 -20 - 70 ° C Yes 80 / 113 / 105 PAT-Stand-4 4 -20 - 70 ° C Yes 84 / 119 / 301 PAT-Heater-4 4 up to 200 ° C** Yes 230 / 265 / 400 PAT-Stand-16 16 -20 - 70 ° C Yes Yes 120 / 315 / 315 PAT-Chamber-16 16 10-80 ° C Yes Yes 375 / 640 / 380 * Compatible with any PAT series test cell
** 10 °C above average room temperature to 200 °C
*** Independent data acquisition of cell data (current, full- and half-cell voltages), pressure (only PAT-Chamber-16) and temperature. EC-Link monitoring software is provided.
