PAT-Clamp-1

Docking station with minimized dimensions

Product description
The PAT-Clamp-1 is our smallest docking station for a single PAT test cell. It was developed for tight space constraints. The socket can be left connected permanently to a common potentiostat or battery tester using 2 mm banana sockets or Sub-D connector. Therefore there is no need to renew the connection between cell and potentiostat for every battery test. It also fits perfectly into any climate chamber with a cable feed-through and can be placed inside a glovebox. The cell is inserted and removed by bending up the clamp.

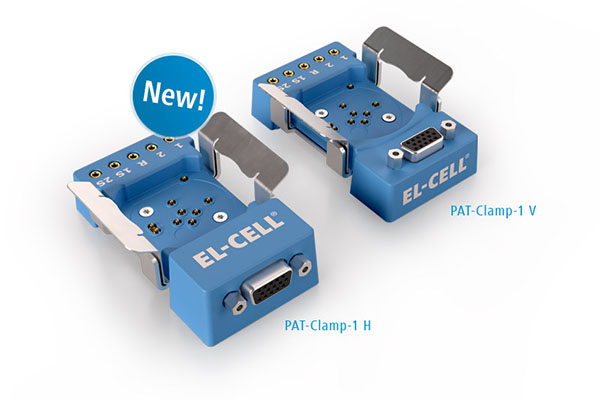

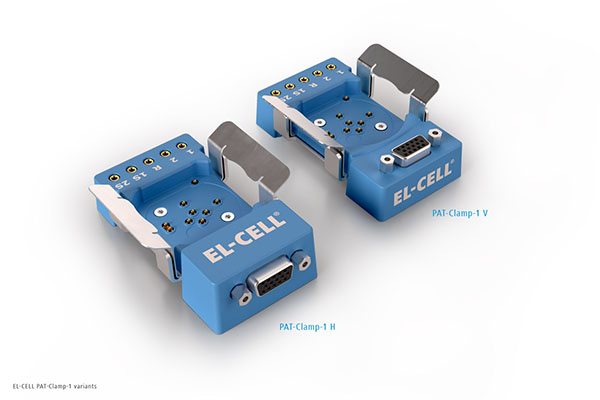

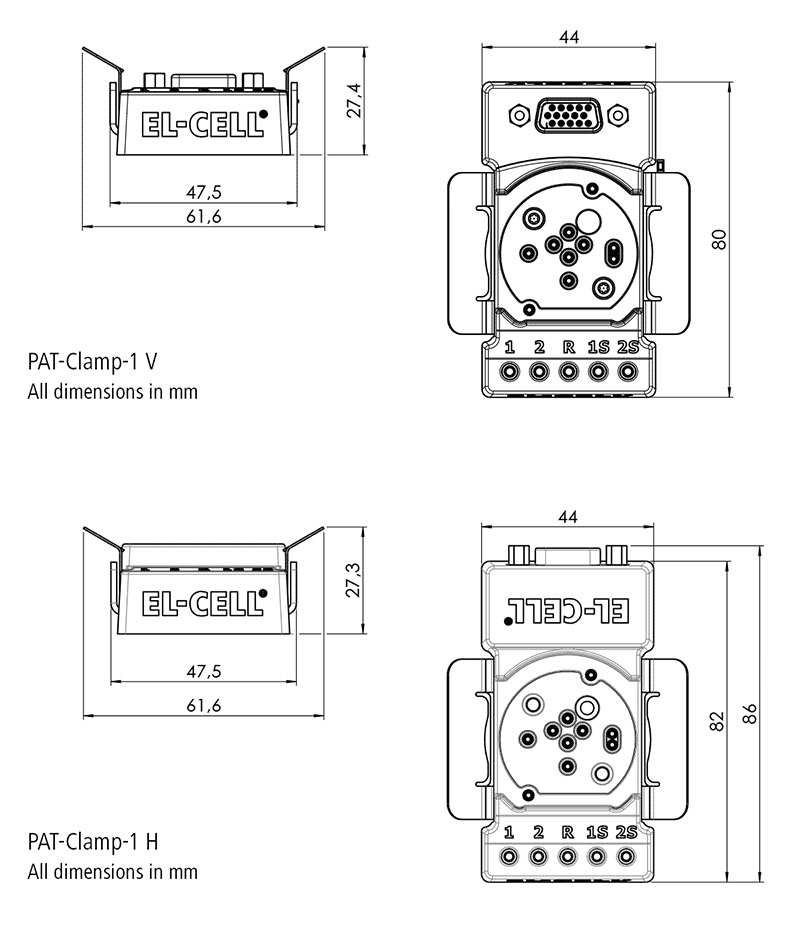

The PAT-Clamp-1 is available in two variants, that differ only in the alignment of the Sub-D connector.

The PAT-Clamp-1 allows immediate functional testing of all PAT series test cells with smallest possible footprint. Typically, it is used in combination with a high-throughput solution. For instance, 16 PAT-Cells can be cycled in parallel in a PAT-Chamber-16 connected by a third-party battery tester without impedance capability. In that case, the impedance of each test cell can be measured before and after the cycle test in the PAT-Clamp-1 connected to the PAT-Tester-x or another impedance analyzer.

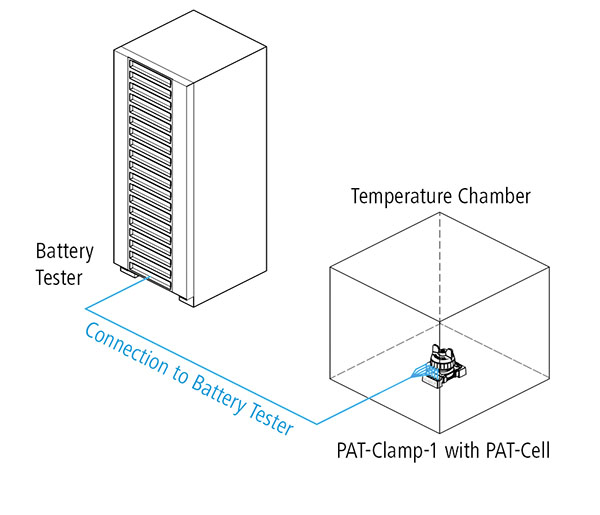

Schematic view of a connected PAT-Clamp-1 testing a PAT-Cell

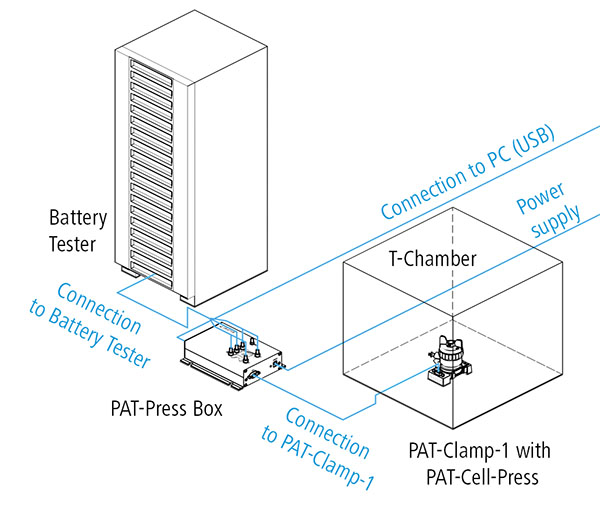

Schematic view of a connected PAT-Clamp-1 testing a PAT-Cell-Press

Gallery

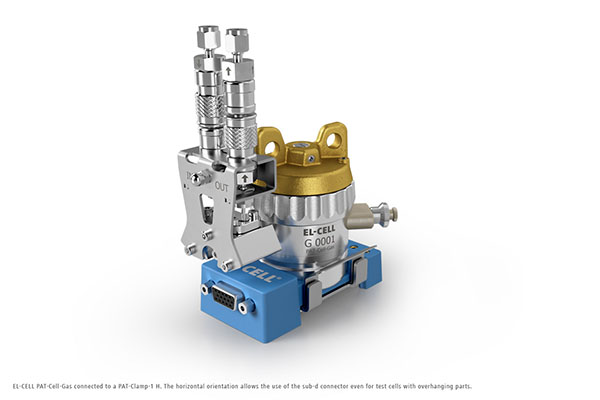

EL-CELL PAT-Cell-Gas connected to a PAT-Clamp-1 H.

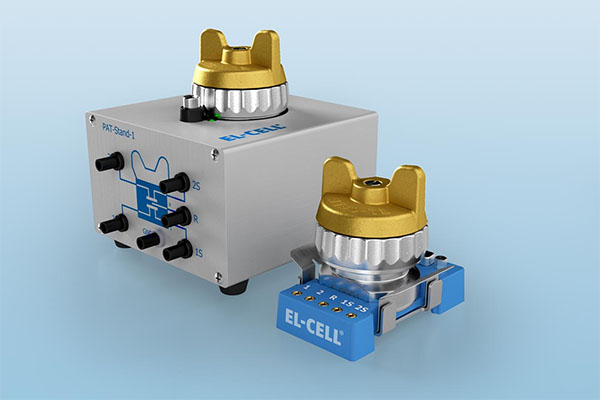

Size comparison PAT-Stand-1 and PAT-Clamp-1

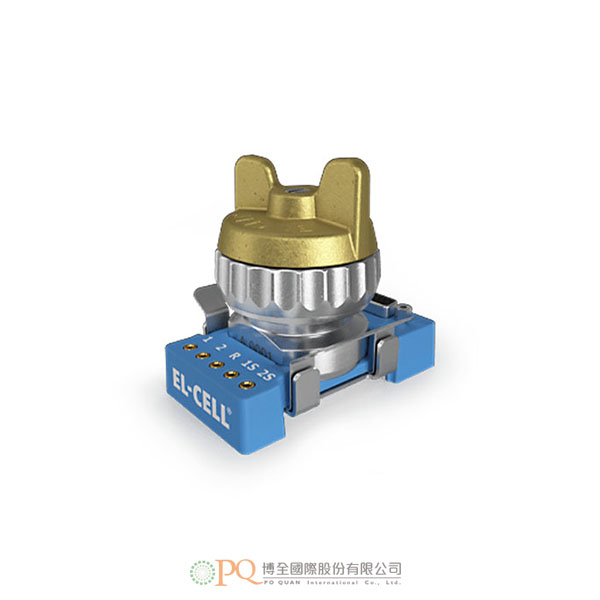

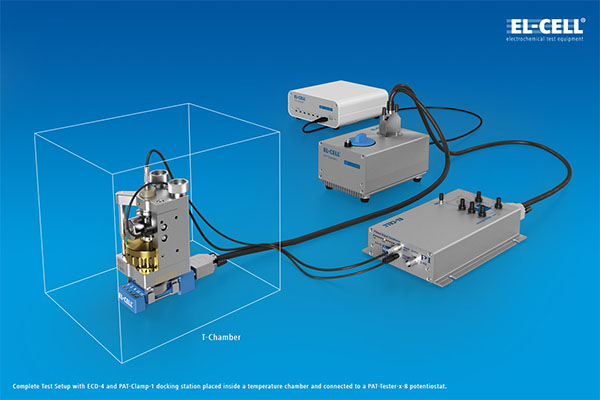

ECD-4-nano setup inside a temperature chamber.

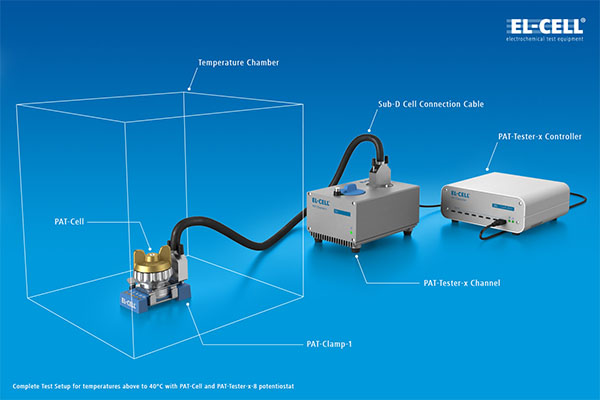

Complete battery test setup for above 40°C.

* Compatible with any PAT series test cell
** 10 °C above average room temperature to 200 °C
*** Independent data acquisition of cell data (current, full- and half-cell voltages), pressure (only PAT-Chamber-16) and temperature. EC-Link monitoring software is provided.
