PAT-Channel-1

PAT-Channel-1 型號：PAT-Channel-1

Single channel station for one test cell, fully equipped with PStat/GStat/EIS

Features Specifications

Single channel station for one test cell

Product description

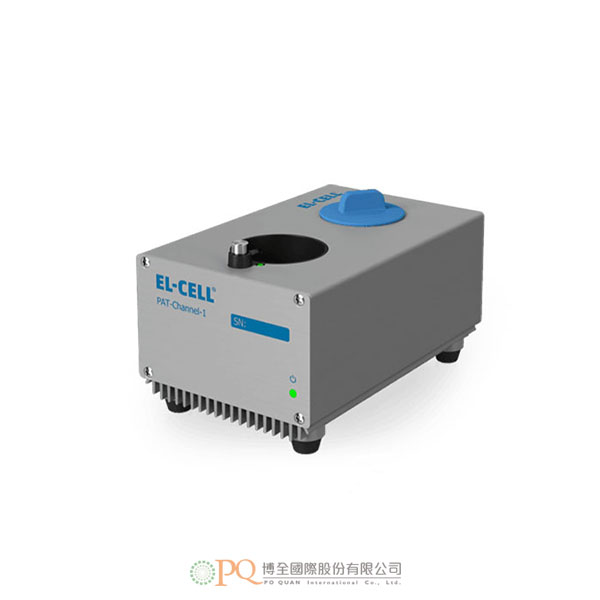

The PAT-Channel-1 is a fully featured, single channel potentiostat / galvanostat/ impedance analyzer which is operated in conjunction with a PAT-Controller. It has a docking socket for one PAT series test cell and external connectors to connect a test cell of a different type or a separate docking station.

This enables, for example, another docking station with a PAT-Cell to be tested in a temperature cabinet at elevated temperatures, that would otherwise be too high for the tester’s electronics.

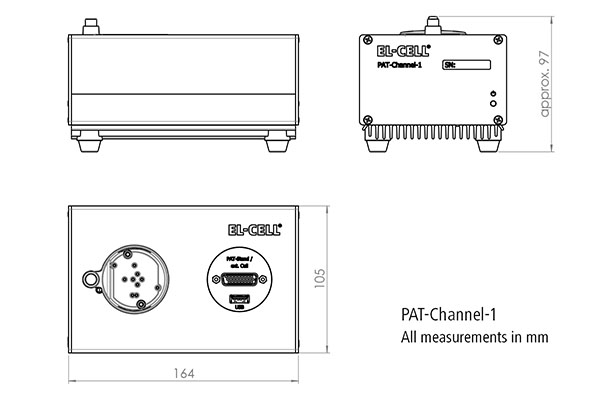

Length	164 mm
Height	97 mm
Width	105 mm
Weight	1.3 kg
Temperature operation range	-20 to + 40 °C
Humidity	Non-condensing

# Channels per device	1
Voltage	-7 V to +7 V
Current	±100 mA
Cell connection / Electrode connection	3 electrodes plus sense wires, Connection matrix
ADC	2 x 24 Bit
DAC	1 x 18 Bit
Bandwidth ranges (Stability Factor)	500 kHz (fast)
	50 kHz (medium)
	5 kHz (slow)
Acquisition Time (Time Base)	1 ms

Frequency range	100 μHz to 100 kHz
Impedance mode	PEIS and GEIS (simultaneous measurement of full- and half-cell impedances

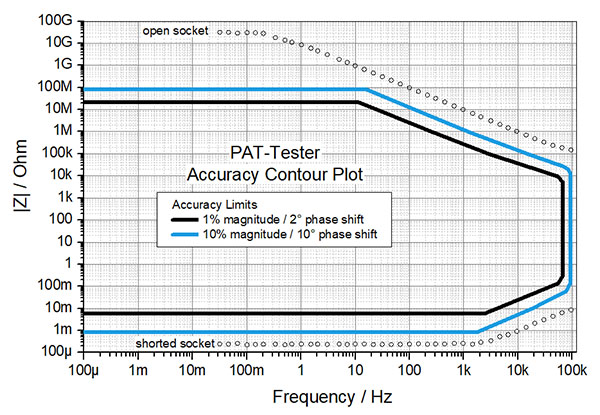

Impedance range	1 mΩ to 100 MΩ
