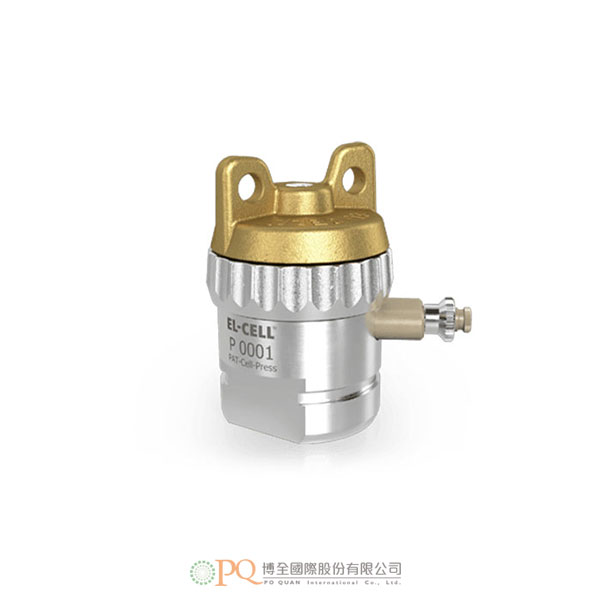

PAT-Cell-Press

The PAT-Cell-Press is the ideal, leakproof cell for pressure testing.

Our pressure test cell for the PAT series

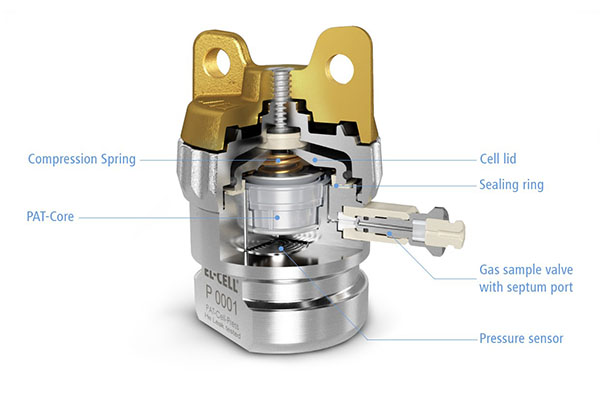

The PAT-Cell-Press is a pressure test cell for measuring gas evolution and drawing gas samples (option). Its advanced design includes a laser welded pressure sensor and glass-to-metal seals. The number of non-permanent seals is reduced to its minimum: a single seal between cell lid and base and a ferrule when the cell is ordered with the optional gas sample port.

In order to ensure best testing results, every PAT-Cell-Press is intensively tested for helium leaks.

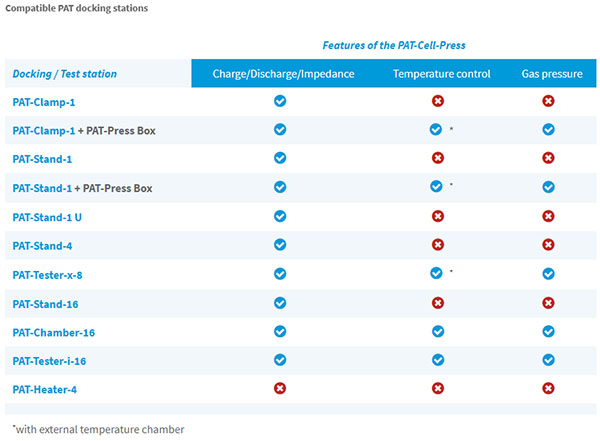

The PAT-Cell-Press can be operated directly with the PAT-Tester-x and PAT-Tester-i-16 potentiostats. If used with a 3rd party potentiostat, the PAT-Press-Box is required.

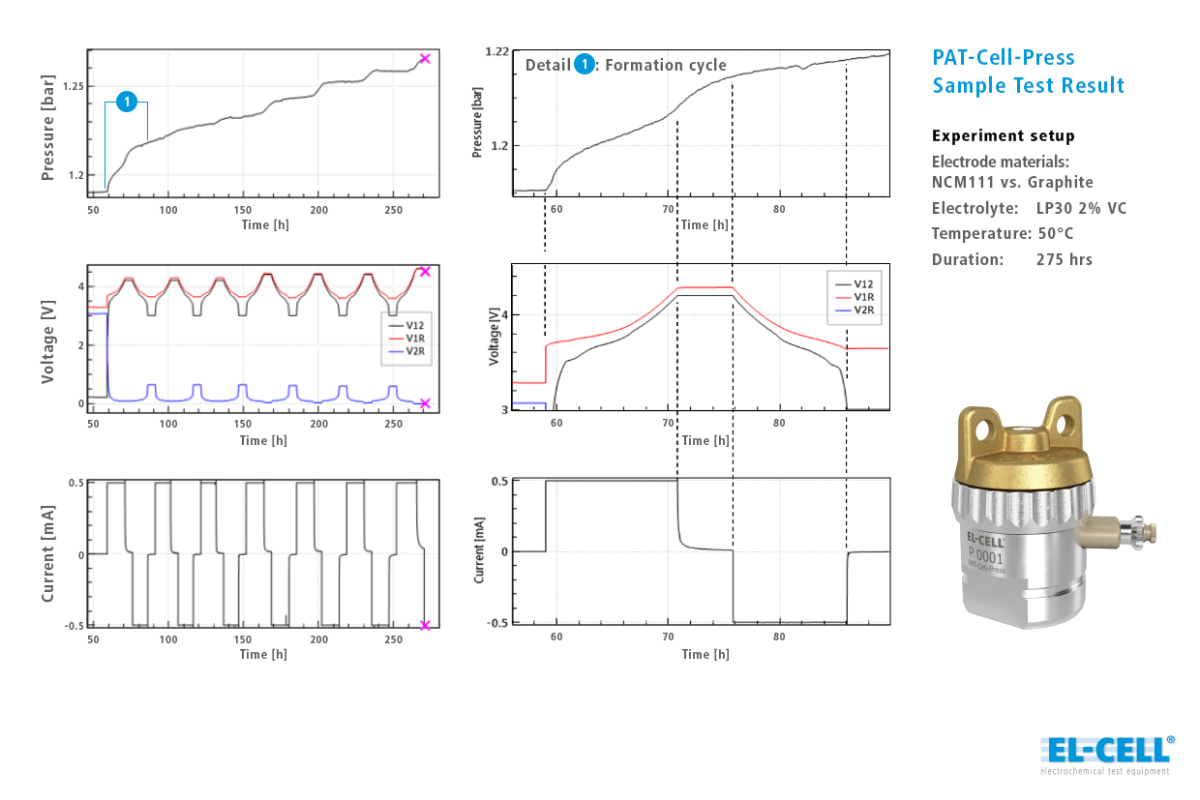

Sample test results

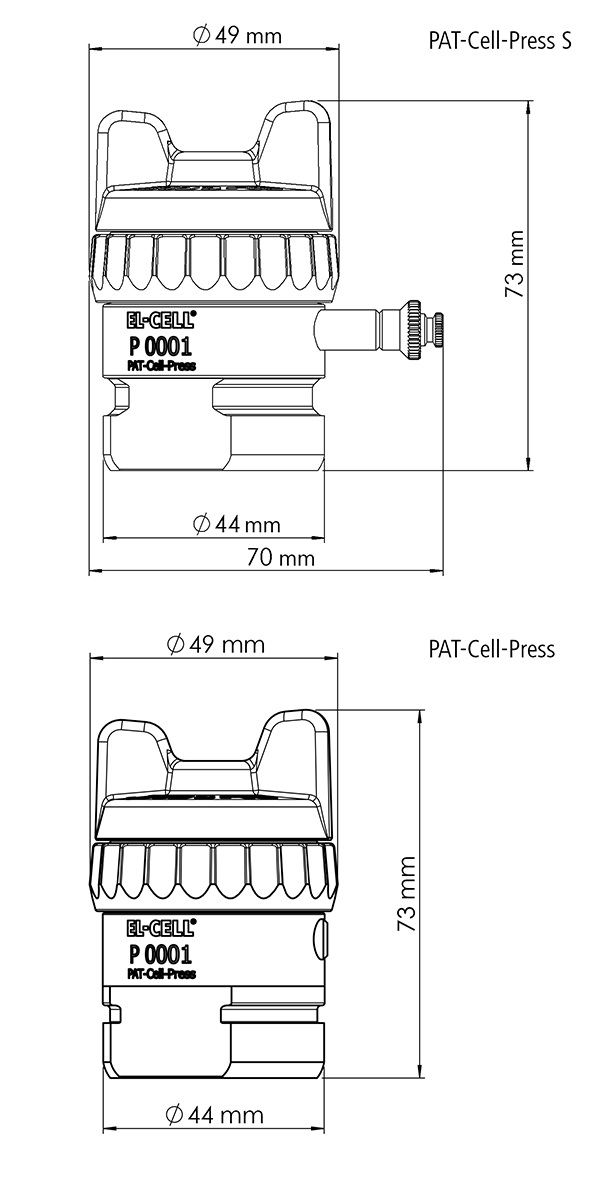

Dead volume (PAT-Cell-Press with standard lid)
