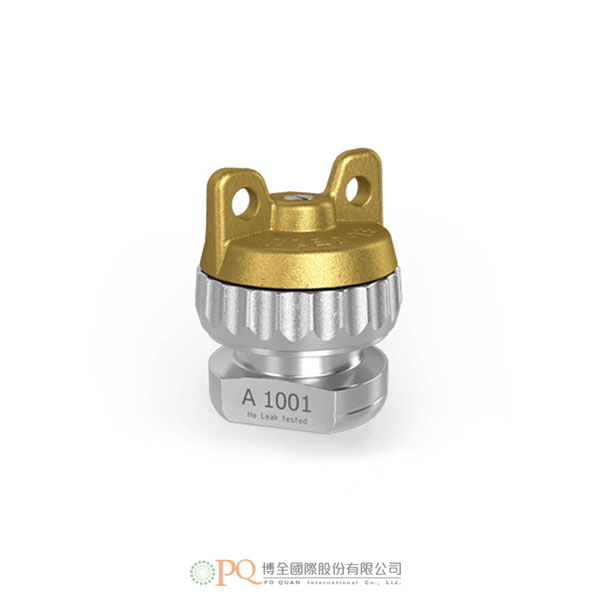

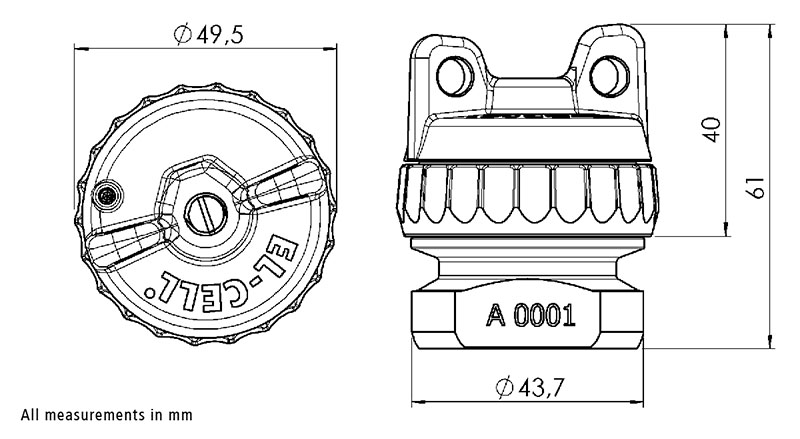

PAT-Cell-HT

Heat resistant PAT series test cell for up to 200°C
Our PAT series test cell for 2- or 3-electrode testing at elevated temperatures
The PAT-Cell-HT is a test cell for 2- and 3-electrode measurements on battery materials at temperatures up to 200°C. It uses the modular PAT-Core concept and can therefore be used for a variety of test purposes. The cell has no wiring but is inserted directly into a PAT battery tester or connected to any commercially available battery tester / potentiostat via a PAT docking station. In order to fully utilize the temperature range up to 200°C, we recommend using the PAT-Heater-4 docking station.

To meet the challenges of battery tests at elevated temperatures, we offer a special version of the PAT-Core insulation sleeve. This reusable sleeve is made of PEEK (rather then PP) and is especially useful for the investigation of solid state (ceramic) electrolyte membranes. Just like the standard PP sleeve, the PEEK sleeve can be equipped with different reference materials such as lithium, sodium or magnesium. The standard current collectors (plungers) complete the PAT-Core. Available plunger materials are aluminum and copper (for single use), or stain­less steel 316L and PEEK (for reuse).

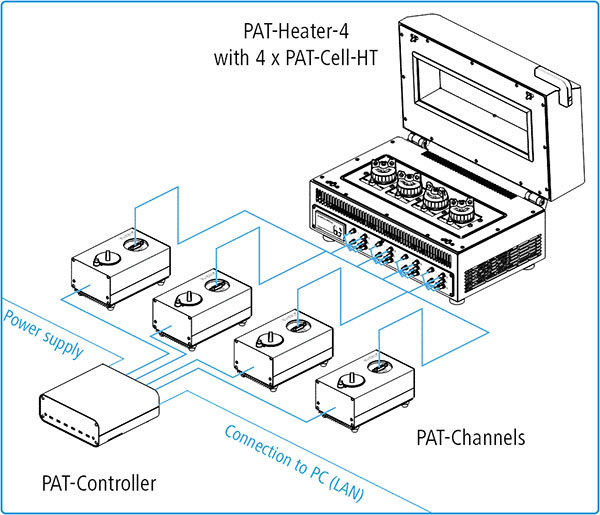

Complete test setup with PAT-Tester-x and PAT-Heater-4
With the development of our own potentiostats / galvanostats / impedance analyzers, the PAT-Tester series, we are now able to offer you complete setups for your experiments. For tests with the PAT-Cell-HT we recommend the use of our heated docking station, the PAT-Heater-4 in combination with a 4-channel PAT-Tester-x-8. This flexible setup is characterized by its low space consumption and easy handling and allows you to efficiently test your battery materials up to 200°C.

Gallery

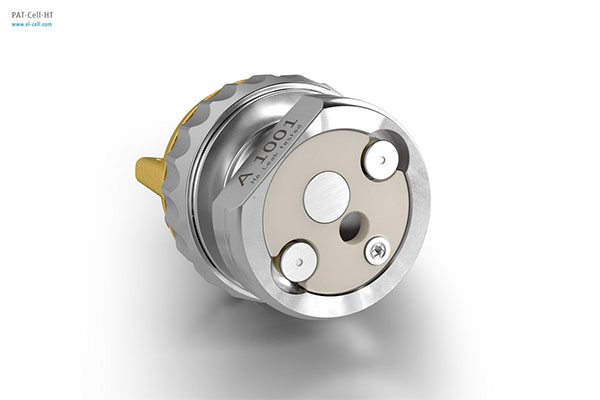

Heat resistant PEEK cell bottom

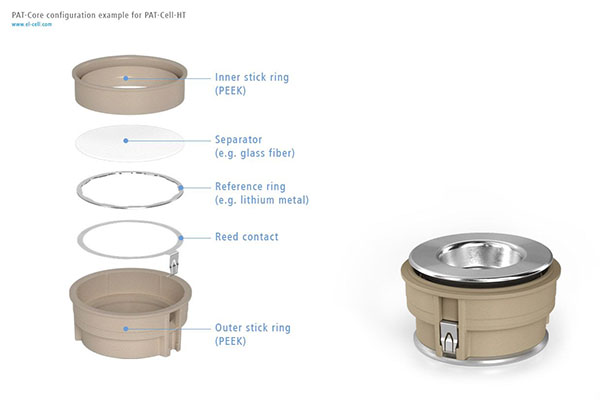

PAT-Core example configuration for PAT-Cell-HT

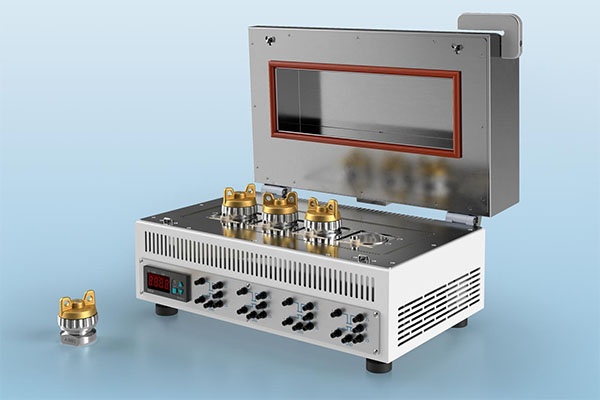

Opened PAT-Heater-4 with test cells

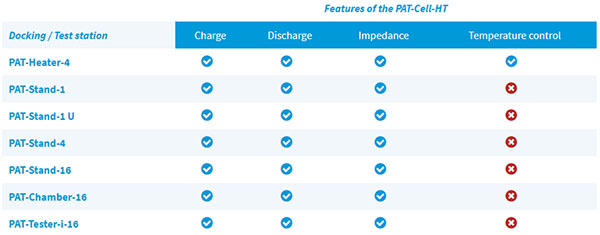

Features

NEW! Lid seal highest long-term stability

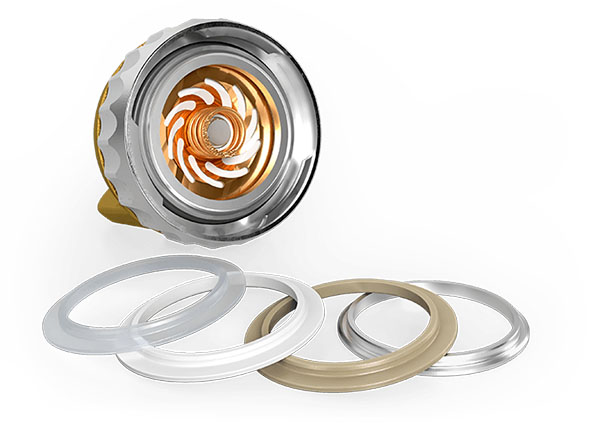

With the reworked cell design, aluminium seals along with the new metal seal lid can now be used in addition to the proven polymer seals. This can make a difference in long-term measurements.

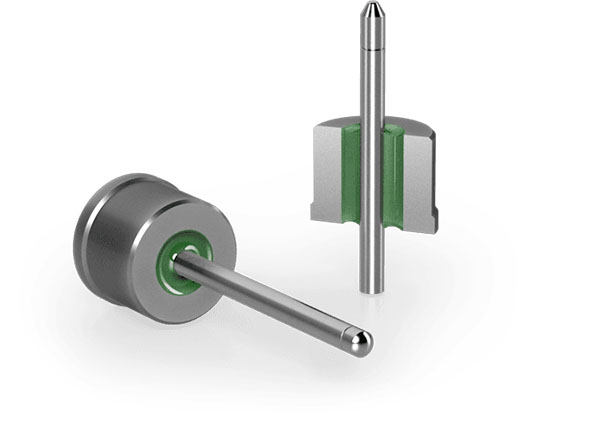

NEW! Glass-to-metal seals for improved temperature resistance

With the new GTM electrode feedthroughs, the PAT-Cell can now be operated and thermally cycled between -40 to +80° C. Up to 200°C with the PAT-Cell-HT.

NEW! Superior corrosion resistance for next-generation
battery chemistries

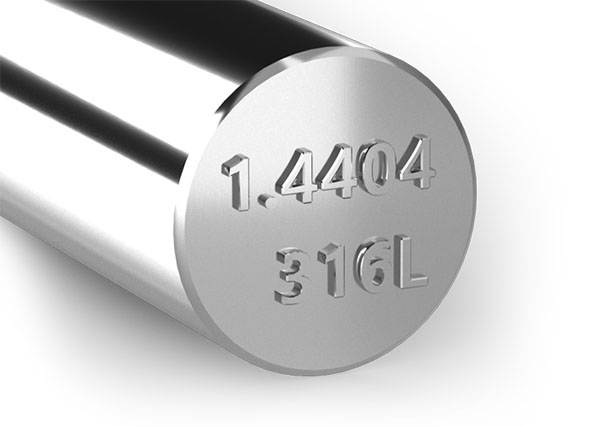

Cell base made of stainless steel 1.4404 (316L) for compatibility with highly corrosive electrolytes.

NEW! Guaranteed tightness

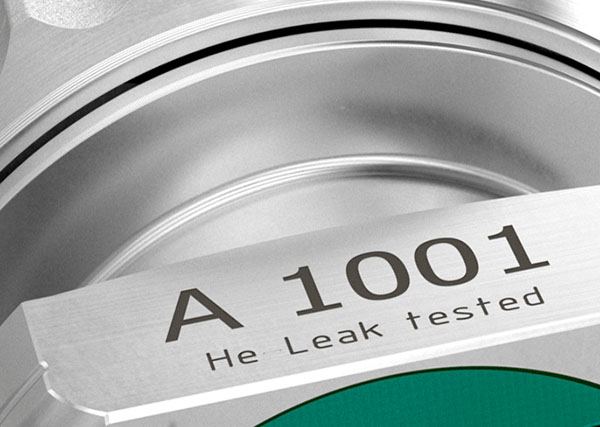

All PAT-Cell-HT test cells are helium leak tested at the EL-Cell factory.

• The PAT-Cell-HT is fully backwards compatible to previous versions.
• PAT-series test cell for 2-or 3-electrode testing at elevated temperatures
• Continuous operating temperature: up to 200°C
• PAT-Core design with or without ring-shaped reference electrode
• Compatible with solid state electrolyte membranes
