SDT > 線上監控系統
ONGUARD_PQ

ON-GUARD

ON-GUARD 型號：ON-GUARD
SDT Ultrasound Solutions 的 ON-GUARD 是一種自動精密潤滑系統，旨在確保關鍵生產設備正確潤滑。

透過密切監測摩擦程度，ON-GUARD 知道何時自動、精確地為軸承注入所需的潤滑脂，使其恢復到最佳工作狀態。因此，維護和可靠性團隊可以節省昂貴的潤滑脂和寶貴的時間，同時提供最關鍵旋轉機械狀況的持續回饋。
加入洽詢
產品特點 Features
  • ON-GUARD 透過 CONMONSENSE
    感測器與您的關鍵資產進行通信，
    CONMONSENSE 感測器是世界上最
    精確、用途最廣泛的接觸式超音波感
    測器。CONMONSENSE 可持續監測摩
    擦水平，並將資訊回饋給 ON-GUARD
    基於瀏覽器的整合軟體。從而提供維
    護和可靠性團隊可以信賴的準確、可操
    作的最新數據。    		 SDT 的 LUBrain™ 潤滑演算法驅動
    SDT Ultrasound Solutions精密潤滑設
    備。它能不斷從歷史數據中學習。當與
    ON-GUARD 結合使用時，LUBrain 能
    夠根據需要自動、精確地注入潤滑脂，
    使資產恢復原始油膜和表面分離。    		 ON-GUARD 每個系統最多可監控和潤
    滑 8 個獨立位置。每個系統配備 8 個
    CONMONSENSE 4-20mA類比感測
    器、8 個注油器和 8 條配對感測器的屏
    蔽電纜 + 一組潤滑分配線，長度從 5
    公尺到 30 公尺不等。這使得SDT
    Ultrasound Solutions的 ON-GUARD
    在安裝更為簡單。
    無論使用者目前身在何處，都可以透過
    網頁瀏覽器方便地查看整個過程。
    ON-GUARD 可透過整合的瀏覽器儀表
    板持續監控摩擦等級和其它的一些參
    數。    		 根據您的資產和組織配置系統。完全自
    訂注油器容量大小、注射量和速度、測
    量擷取模式（手動或 LUBrain）和時
    間。觸發選項還可指定警報和資產在觸
    發注入前必須處於警報狀態的時間。

    透過 ON-GUARD 壓力測試擷取畫面，
    您可以一目了然地全面了解您的系統。
    ON-GUARD融合了自動化、精確測量和
    專利的數據驅動決策，讓您高枕無憂。





  • The ON-GUARD communicates
    with your critical assets through the
    CONMONSENSE Sensor, the world's
    most accurate and versatile contact
    ultrasound sensor. The
    CONMONSENSE continuously
    monitors friction levels and relays
    that information back to the ON-
    GUARD's, browser-based,
    integrated software. Thus providing
    accurate, actionable, and up-to-
    date data that maintenance and
    reliability teams can trust.    		 SDT's LUBrain™  Lubrication
    Algorithm drives SDT Ultrasound
    Solutions Precision Lubrication
    Devices. It continuously learns from
    historic data. When combined with
    the ON-GUARD, the LUBrain is
    capable of automatically and
    precisely injecting lubricant as
    required, restoring a pristine film
    and separation of surfaces to the
    asset. Operators of the ON-GUARD
    also have the ability to manually
    inject lubricant as needed.

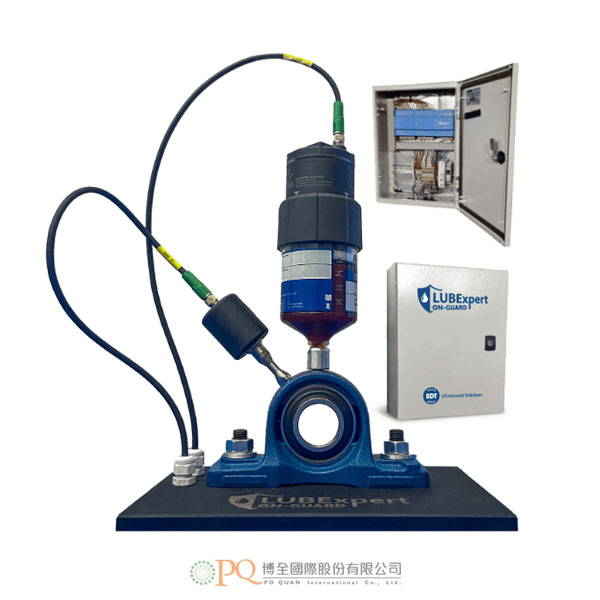

    The ON-GUARD monitors and
    lubricates up to 8 separate points
    per system. Each system comes
    with 8 CONMONSENSE true 4-
    20mA sensors, 8 lubricators, and 8
    sensor paired shielded cables +
    lubrication distribution lines all
    varying from 5 to 30 meters in
    length.

    Installation is easy with the ON-
    GUARD from SDT Ultrasound
    Solutions.

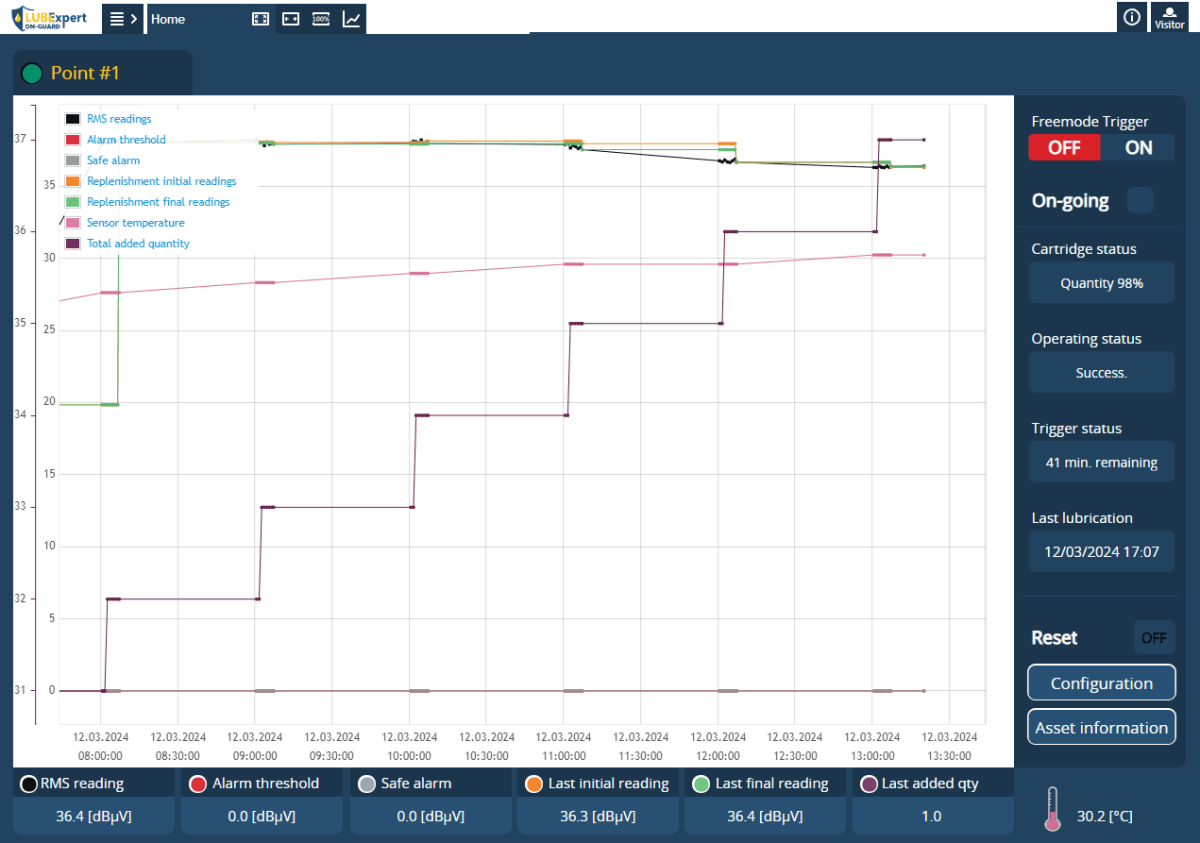

    Operators can view the entire
    process from the convenience of
    their web browser, no matter their
    current whereabouts. The ON-
    GUARD continuously monitors
    friction levels & a number of other
    parameters from the integrated

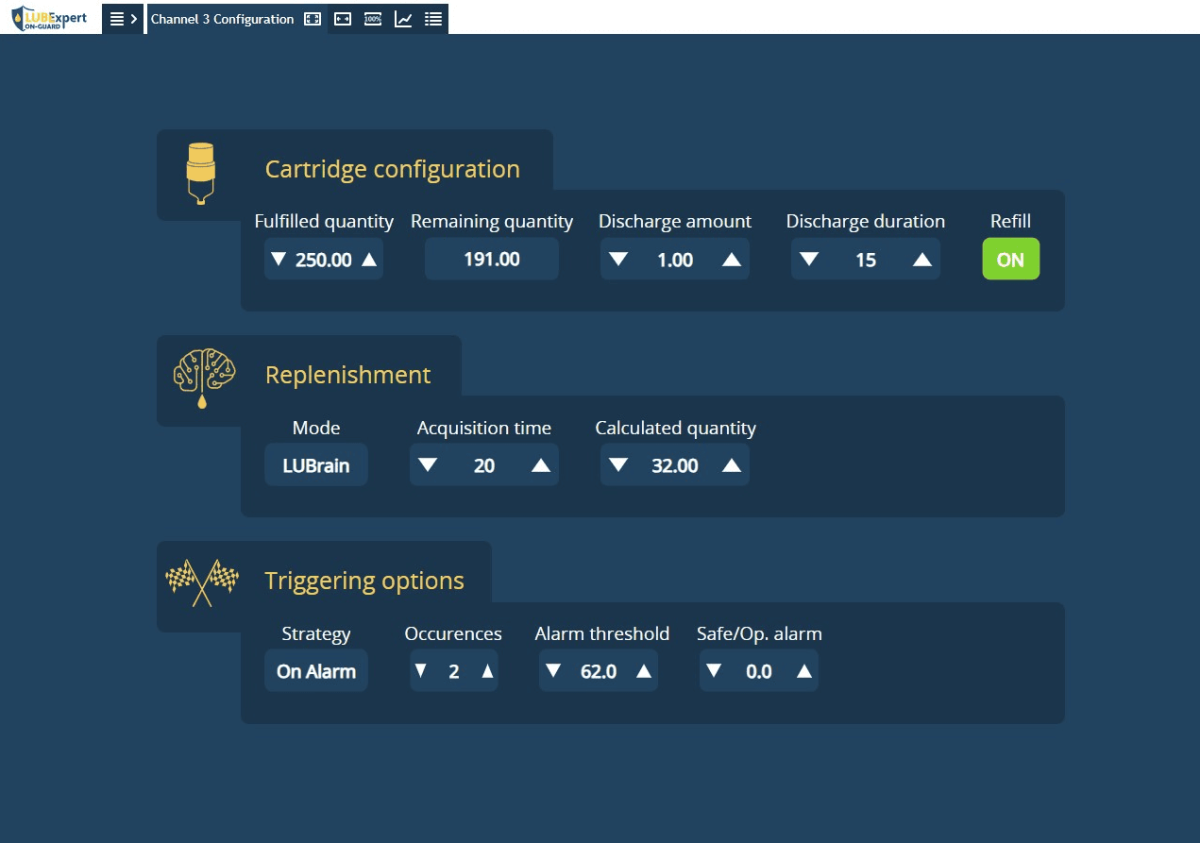

    browser-based dashboard.    		 Configure your system to your
    assets and organization. Fully
    customize cartridge size, injection
    quantity & speed, measurement
    acquisition mode (Manual or
    LUBrain) & time. Triggering options
    can also specify alarms & the
    amount of time an asset must
    spend in alarm before an injection
    is triggered.

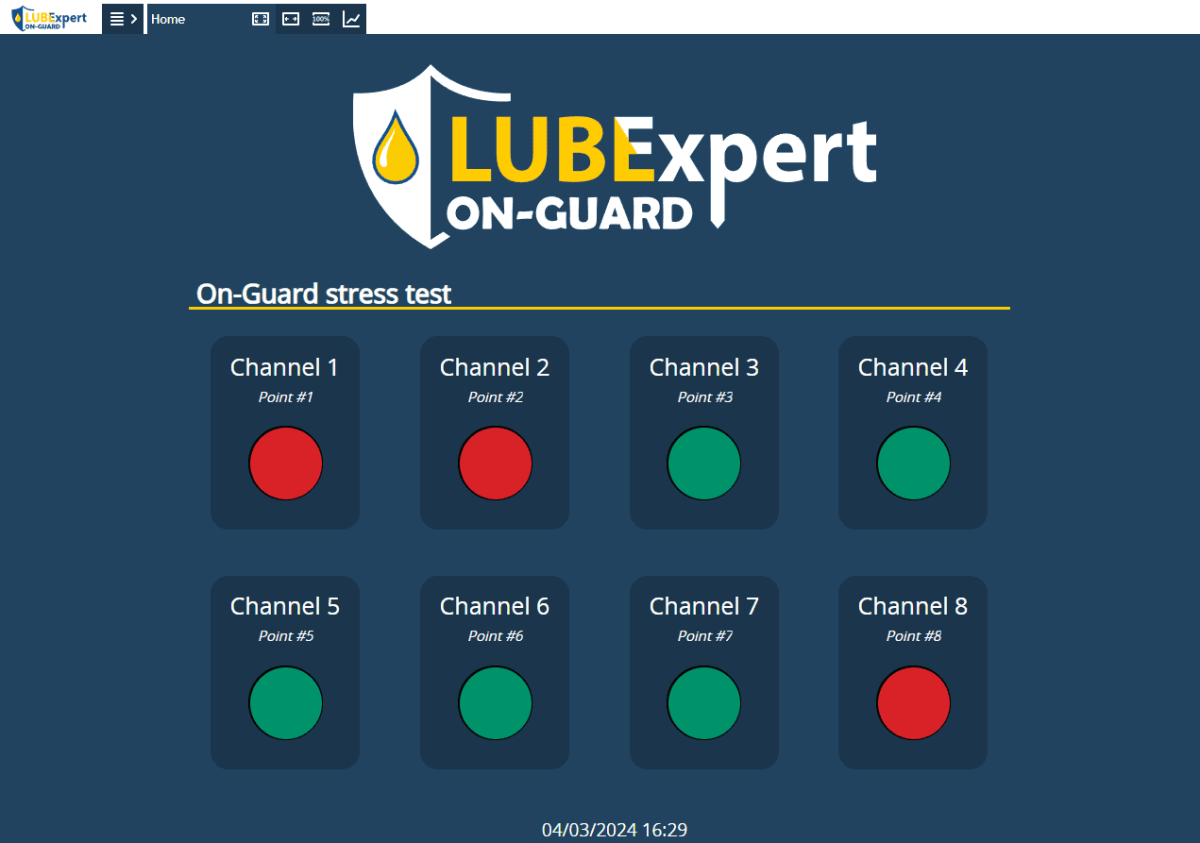

    Gain a comprehensive view of your
    system at a glance with the ON-
    GUARD Stress Test Snapshot. Enjoy
    the peace of mind that comes with
    ON-GUARD's blend of automation,
    precision measurements, and
    patented data-driven decision
    making.
