EM 探測器和前置放大器配置

用於 Amptek 探測器的 PA-210 和 PA-230 OEM 前置放大器

AXR/PA-210 或 AXR/PA-230 專供該領域的專家/OEM 使用。 可以使用任意 Amptek 探測器（Si-PIN、SDD 或 CdTe）。 此配置有許多選項，如下所示。

客戶需要解決散熱問題併為 AXR/PA-210 或 AXR/PA-230 準備一個定製外殼。 如果使用PA210/PA230外殼，則需要為外殼提供額外的散熱。

此外，客戶還需要準備多個外部電源、一個整形放大器和 MCA 或數位處理器以及與主機的通信。

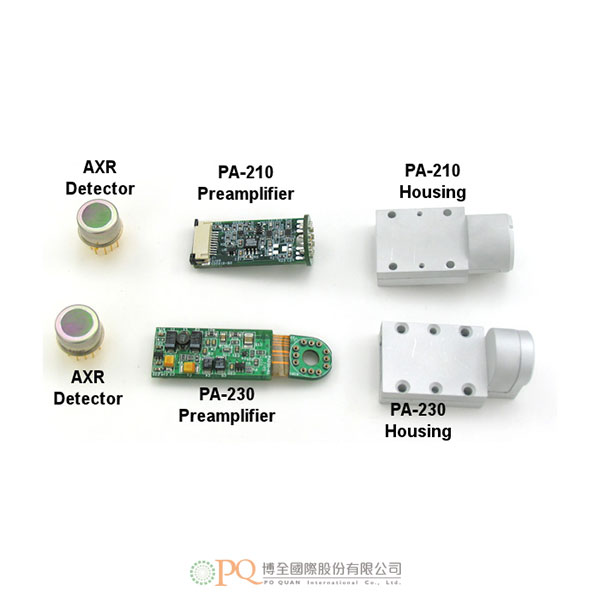

XR 檢測器、PA-210 和PA-230前置放大器和外殼

如需了解更多信息，請立即聯繫我們！

PA-210 & PA-230 OEM Preamplifiers for Amptek Detectors
The AXR/PA-210 or AXR/PA-230, is for experts/OEMs in the field. Any Amptek detector can be used (Si-PIN, SDD, or CdTe). There are many options for this configuration as can be seen in the pictures below.

The customer needs to provide custom heat-sinking and a custom enclosure for the AXR/PA-210 or AXR/PA-230.  If the PA210/PA230 Housings are used, additional heat-sinking to the Housings will be needed.

Additionally, the customer needs to provide several external power supplies, a shaping amplifier and MCA, or digital processor, and communication with the host computer.

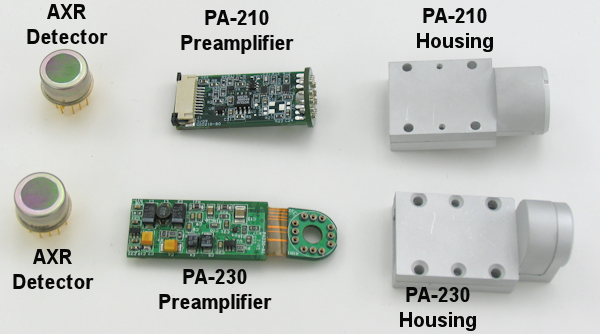

AXR Detectors, PA-210 and PA-230 Preamplifiers, and Housings
Contact us for more information today!
