黏度計

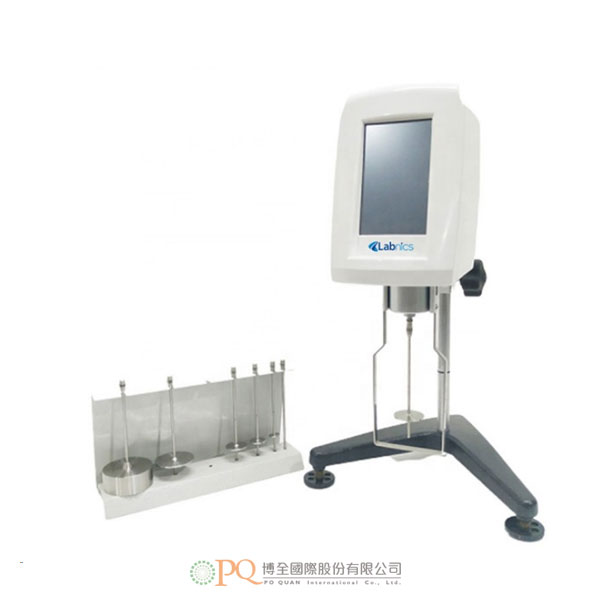

Viscometer NVM-607 型號:NVM-607
黏度計 NVM-607 是一種旋轉黏度計,可幫助用戶完成測試創建和數據收集,以進行快速、簡單和精確的黏度測量。配備5英寸彩色觸控螢幕,可直觀顯示各種參數和工作狀態。黏度計採用ARM技術,內置Linux系統,操作界面簡潔。
    • 實時顯示時間-黏度曲線
    • 用於溫度測量的標準溫度探頭接口
    • 自動掃描並顯示推薦的轉子和轉速組合
    • 存儲多達 30 組數據(黏度、溫度、轉子、速度、剪切速率、剪切應力、時間、密度等)
  • 類型 HBDV2
    測量範圍 800 至 320,000,000 mPas
    旋轉速度 0.1 - 200 rpm,變速
    轉子 R2 – R7
    準確性 ±1%(牛頓液體)
    重複性 ± 0.5 % (牛頓液體)
    樣品用量 500毫升
    界面 RS232端口
    工作溫度 5 ºC ~ 35 ºC
    工作濕度 ≤ 80 %
    電源 交流110V/220V;50/60赫茲
    尺寸(長×寬×高) 300 × 300 × 450 毫米
    • Real-time display of time-viscosity curve
    • Standard temperature probe interface for temperature measurement
    • Automatic scan and display of recommended combination of rotor and rotation speed
    • Stores up to 30 groups of data (viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, etc.)
  • Type HBDV2
    Measurement range 800 to 320,000,000 mPas
    Rotation speed 0.1 - 200 rpm, variable speed
    Rotor R2 – R7
    Accuracy ±1 % (Newtonian liquid)
    Repeatability ± 0.5 % (Newtonian liquid)
    Sample dosage 500 ml
    Interface RS232 port
    Operating temperature 5 ºC ~ 35 ºC
    Operating humidity ≤ 80 %
    Power supply AC 110V/220V; 50/60 Hz
    Dimension (L × W × H) 300 × 300 × 450 mm
    Gross weight 7 kg
