管式爐

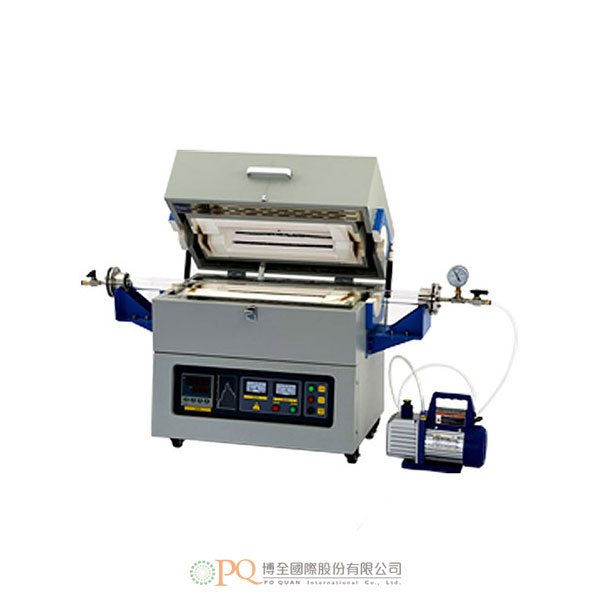

Tube Furnace 型號：NTF-100
管式爐 NTF-100 是一種單區、分體式臥式管式爐，設計有集成控制系統，更容易和更好的性能。這些緊湊型管式爐配備 K 型熱電偶和真空系統，可廣泛用於各種工藝。這些爐子提供無與倫比的熱均勻性並帶來最佳的熱量分佈，因此是各種熱敏過程（例如熱電偶校準）的理想選擇。
-
- Durable body with double layer structure
- Fibrous alumina insulation for maximum energy-saving
- Protection against over-heating and broken thermocouple
- Built-in 30 programmable segments for precise control
- Can be customised in regards to quartz tube diameter and length
-
類型 單區、臥式管式爐 外殼 SS304 內腔 氧化鋁陶瓷纖維 工作溫度 200°C - 1100°C 最高溫度 1200℃ 石英管直徑（mm） 40 / 60 / 80 / 100 / 120 或更大 加熱區長度（mm） 200 / 300 / 400 / 500 / 600mm 或更長 溫度控制 PID自動控制及自整定功能 升溫速度 0°C - 30°C/分鐘 額定電壓 交流 220/380 伏，50/60 赫茲 電源輸入 2 千瓦 - 20 千瓦 加熱元件 電阻絲 溫度精度 ± 1 ℃ 最大真空度 0.1 兆帕 控制氣體 浮球流量計；範圍30-300mL/min 煤氣灶 氮氣、氬氣等惰性氣體 重量 3.5公斤 -
- Durable body with double layer structure
- Fibrous alumina insulation for maximum energy-saving
- Protection against over-heating and broken thermocouple
- Built-in 30 programmable segments for precise control
- Can be customised in regards to quartz tube diameter and length
-
Type Single zone, horizontal tube furnace Outer body SS304 Inner chamber Alumina ceramic fibre Working temperature 200°C - 1100 °C Maximum temperature 1200 °C Quartz tube diameter (mm) 40 / 60 / 80 / 100 / 120 or larger Heating zone length (mm) 200 / 300 / 400 / 500 / 600mm or longer Temperature control PID automatic control and auto-tune function Heating rate 0 °C – 30 °C / min Rated voltage AC 220/380 V, 50/60 Hz Power input 2 kW – 20 kW Heating element Electric resistance wire Temperature accuracy ± 1 °C Maximum vacuum 0.1 Mpa Gas control Float flow meter ; range30-300mL/min Gas range Nitrogen, Argon and other inert gas Weight 3.5 kg
