馬弗爐

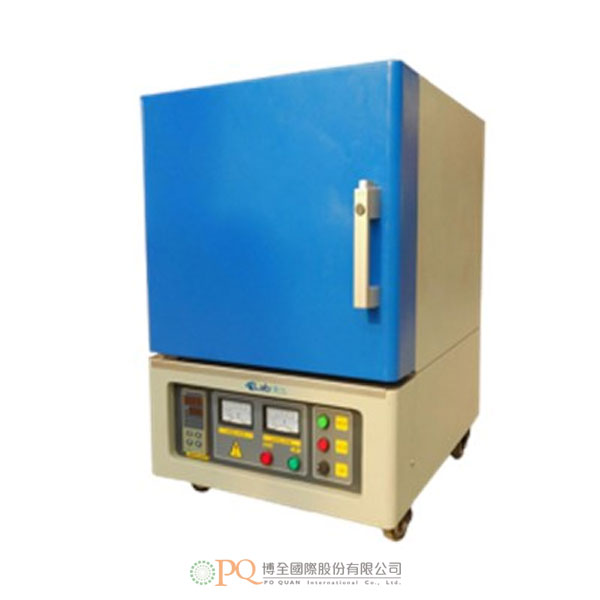

Muffle Furnace 型號：NMF-200

馬弗爐NLMF-200是一種獨立的烘箱式設備，它利用1000℃以上的超高溫將樣品加熱成灰狀物質。它由可承受高達 1700°C 溫度的矽化物碳燒結材料組成。它採用 K 型熱電偶設計，可提供準確和最佳的絕緣性能。這允許完全保持腔室內部的熱量。自動關閉電源功能可確保爐子和用戶的安全。

產品特點產品規格 Features Specifications

- Long working hours at high temperature
- Adjustable Ramp rate
- 30 segments programmable temperature controller
- PID auto control
- Includes RS-232 interface and USB port

Capacity	6 Litres
Chamber size (W x H × D)	180 × 180 × 200 mm
External dimension (W x H × D)	460 × 750 × 490 mm
Working Temperature	1100 °C
Maximum Temperature	1200 °C
Temperature resolution	± 1 °C
Temperature uniformity	± 5 °C at 1000 °C
Heating rate	0 °C - 40 °C
Heating resolution	0.1 °C
Heating elements	Fe / Cr / Al Alloy resistance wire
Rated power	2 KW
Maximum Rated current	18 A
Holding Time Range	0 - 99 hours
Relative Humidity	0.8
Ambient Temperature	10 °C – 40 °C
Display	LCD
Interface	RS-232C, USB port
Net weight	95 kg
