生物顯微鏡

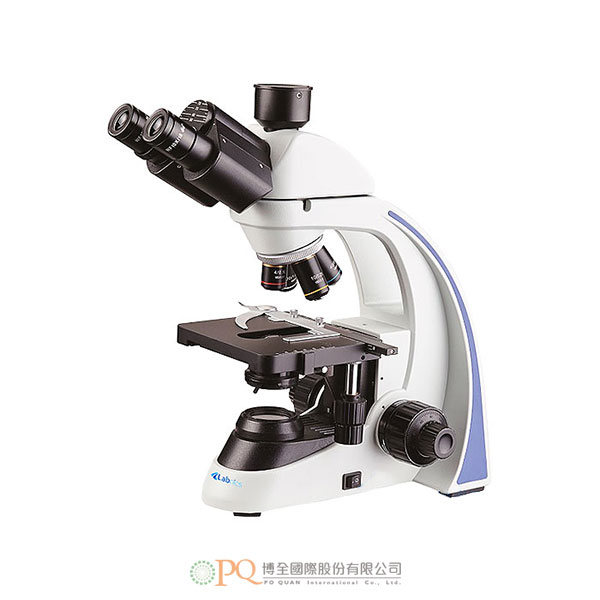

Biological Microscope 型號：NBM-100
生物顯微鏡 NBM-100 是一種光學儀器，可幫助觀察肉眼不可見的微觀生物實體。它是一種明場、LED 照明的人體工程學顯微鏡，旨在通過精確的聚焦系統可視化各種生物標本。它具有同軸定位系統和一個粗/微調旋鈕，能夠以高分辨率觀察微觀領域。
-
- 白色 LED 燈照明器
- 機械雙層載物台由鉑金製成，帶有懸垂
- 左目鏡屈光度調整
- 通過滾柱導軌（滾柱和小齒輪）運動
- 精細和粗調旋鈕周圍的橡膠把手
- 粗調旋鈕張力調節
- 上限位擋塊保護鏡頭和樣本
-
光學系統 平面消色差光學系統 觀察 明場 觀察頭 雙目/三目頭，30°傾斜，360°旋轉，瞳距50-75mm 放大 40X - 1000X 瞳孔調整 55-75mm 屈光度調整 ± 5 屈光度 目標 4X/0.10, 10X/0.25, 40X/0.65(彈簧加載), 100X/1.25(彈簧加載和油浸) 目鏡 寬視場 WF10X Ø 18 mm 鼻托 向內，四重倒角物鏡轉換器 冷凝器 可拆卸，NA1.25，帶孔徑可變光闌 階段 機械雙層載物台，鉑金懸垂 游標精度 可拆卸，0.1 毫米，帶孔徑可變光闌。 照明 3W LED燈 色溫 6300K 舞台尺寸 155 × 145 毫米 移動範圍 76 × 52 毫米 移動精度 0.1 毫米 微調精度 0.002mm 電源 220 伏，50 赫茲 外形尺寸 48.5×30.5×55.5厘米 重量 7公斤 -
- White LED lamp illuminator
- Mechanical double layer stage made of platinum with overhang
- Dioptre adjustment on the left eyepiece
- Movement by roller guider (Roller and pinion)
- Rubber grip around fine and coarse adjust knob
- Tension adjustment of coarse regulation knob
- Upper limit stopper to protect the lens and the sample
-
ptical System Plan achromatic optical system bservation Bright field Viewing Head Binocular /Trinocular head, 30° incling, 360° rotating ,interpupillary distance 50-75mm Magnification 40X - 1000X Interpupillary adjustment 55-75mm Dioptre adjustment ± 5 dioptres bjectives 4X/0.10, 10X/0.25, 40X/0.65(spring loaded), 100X/1.25(spring loaded and oil immersion) Eyepiece Wide field WF10X Ø 18 mm Nosepiece Inward, Quadruple reversed angle nosepiece Condenser Removable, NA1.25 with aperture iris diaphragm Stage Mechanical double layer stage, platinum with overhang Vernier scale accuracy Removable, 0.1 mm with aperture iris diaphragm. Illumination 3W LED lamp Color temperature 6300K Dimensions of Stage 155 × 145 mm Moving range 76 × 52 mm Moving accuracy 0.1 mm Fine adjustment accuracy 0.002mm Power supply 220 V, 50 Hz External Dimensions 48.5×30.5×55.5 cm Weight 7 kg
