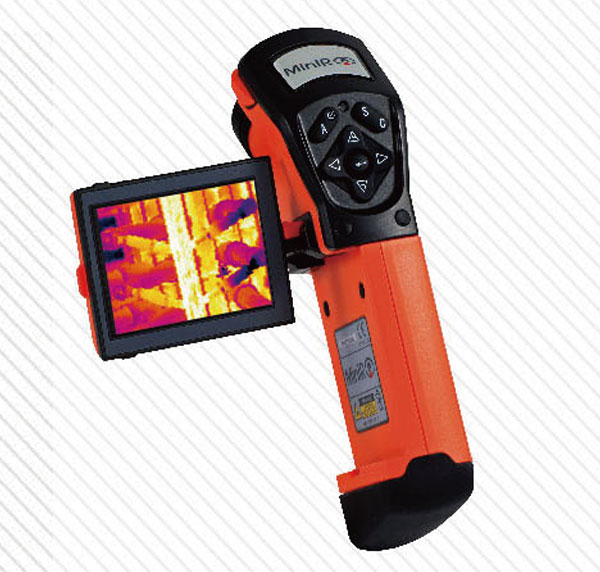

經濟手持式多功能熱像儀

MinIR是SATIR最新熱像儀系列，輕便的設計使得更容易單手操作。 MinIR是整個熱像儀市場的領頭羊，它有著非致冷式晶片使得熱敏感度僅有60mk，此項數據意指具有更高畫素及清晰的熱影像圖片。

六種不同顯示模式

具有六種不同顯示模式以符合不同情況，鐵紅/反鐵紅/彩虹/羽彩/灰色/反灰色

可充電鋰電池及大容量SD卡儲存空間

可充電鋰電池結合創新的能源轉換模式使得MinIR有著輕便的重量同時也具有超過3小時的工作時間。2GB的可拆卸式記憶卡就能夠儲存超過10,000張照片

直覺且快速的溫度量測

MinIR 有著三種溫度量測模式，中心溫度量測、最大溫度量測、最低溫度量測。

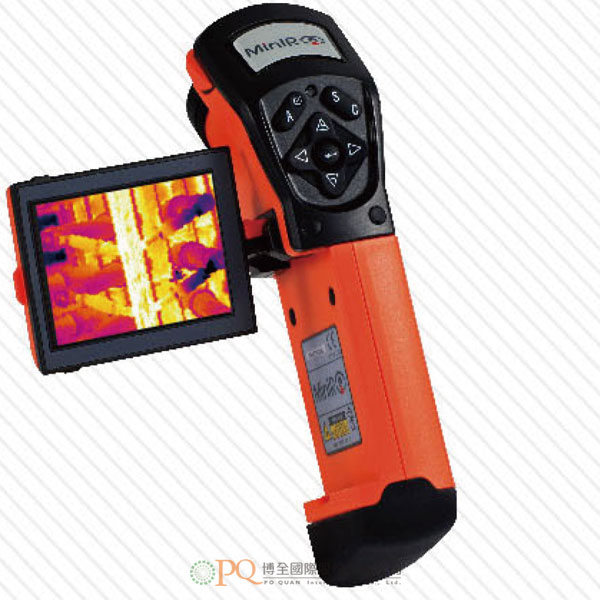

MinIR 符合人體工學設計

小於500公克的重量更易於單手操作。高清3吋全彩顯示幕具翻轉270度功能，更符合各式各樣的工作環境。

最新世代的法國非致冷式晶片
MinIR使用的非致冷晶片具有256x192解析度、50/60Hz的影像更新率。帶來清晰、即時的影像以利更準確的溫度測量結果。

MinlR series thermal cameras are  the third generation of upright style from SATIR. Light weight with an ergonomic compact design for one handed operation, MinlR is the leading entry level thermal camera in the market. The advanced UFPA detector used in MinlR has a low 80mk thermal sensitivity which generates clear and accurate thermal images. MinlR ' s multi functional design meets the requirements for various applications and industries.

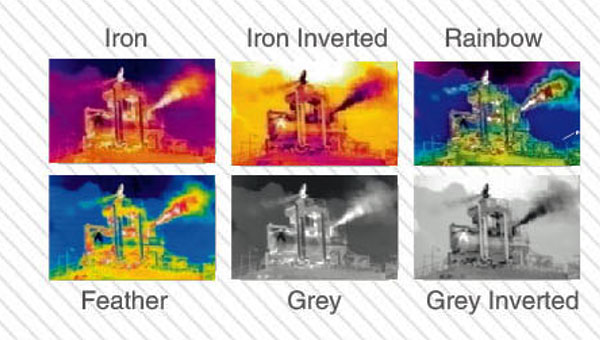

Six paIette coIours

Six different palettes available to meet the display needs of different industries. Iron/iron inverted/rainbow/ feather/grey/ grey inverted

Lion battery for continuous use and Iarge capacity SD stoarge

Large capacity L-ion battery combined with innovatively designed energy conversion modes enables the MinlR to continuously work for over three hours. The 2GB removable SD card can store over 10,000 images.

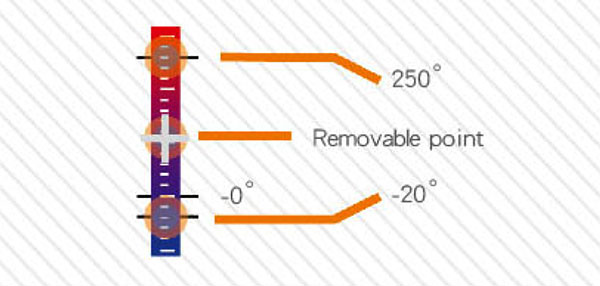

Intuitive and fasttemperature measurement

MinlR series has 3 temperature measurement modes.Centre point temperature measurement, maximum temperature capture and minimum temperature capture.

Industrial Thermal lmager Series

The MinlR is ergonomically designed to fit into the palm of the users hand, weighing less than 500g it allows complete one handed operation. The 3 inch high resolution full colour LCD can rotate 270 degrees, allowing the user to adjust the LCD to suit the working environment.

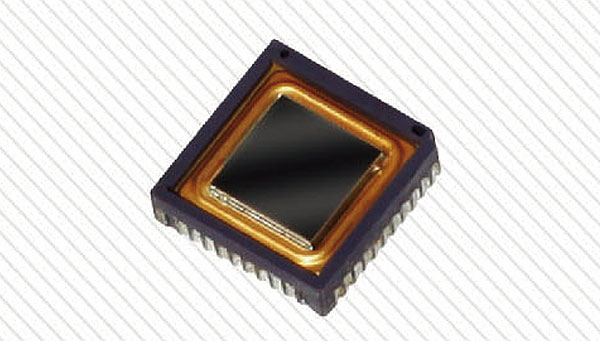

The Iatest generation of detectors imported from France
MinlR series uses UFPA infrared detectors. The 2 5 6 x 1 9 2 50/60Hz refresh rate detector has 49152 temperature measurement points, bringing clearer, real time infrared images, with more accurate and comprehensive temperature measurement results.
