儀表誤差計算器

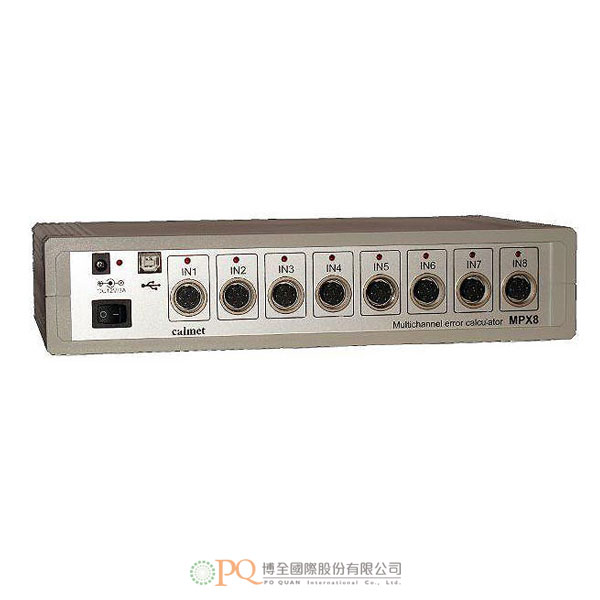

Meter error calculator 型號:MPX8
Eight channel meter error calculator together with C300 calibrator is used for testing simultaneously up to eight electricity meters.
    • For reasonably price systems with accuracy referenced to the C300 Calibrator
    • For extremely high accuracy systems with additional external reference meter
    • For updating of Older Meter Test Stations
    • Automatic test procedures
    • Manual mode execution of single test steps
    • Calculate the standard deviation of the error
    • Eight impulse inputs up to 200kHz
  • Parameter

    Description

    Impulse input

    Eight impulse inputs (up to 200kHz): INL: 0...2V, INH: 4...30V

    Power supply

    230V/50Hz or 12V/1A DC

    Dimensions and weight

    (width 290 x height 70 x depth 200)mm and 1,3kg with cables
