螢光分析用光譜-電化學套件

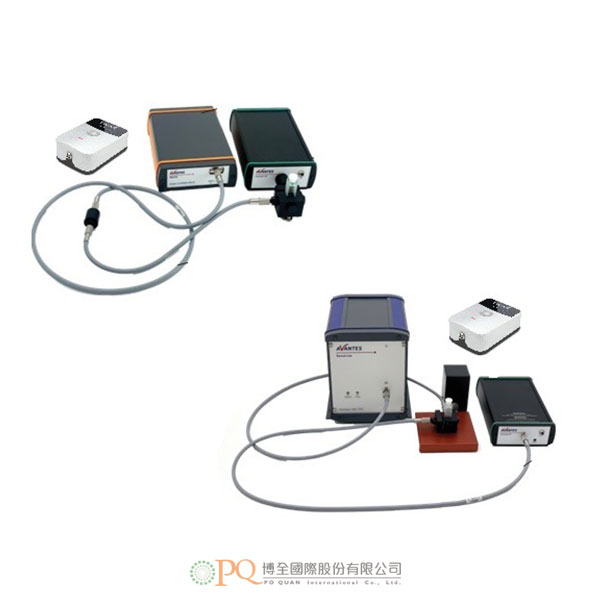

MF-SPEC-ECKIT-3 是高度客製化的螢光應用 Spectro-EC 套件。它配備了我們最新推出的 AvaSpec-ULS2048x64TEC-EVO 光譜儀，該光譜儀是經過改進的電子和冷卻設備的更新版本。所配備的背照型偵測器可在紫外線和紅外線區域提供高靈敏度。套件配備 AvaLight-HPLED 光源，可在不同波長產生連續或脈衝光譜輸出。它還配有 SMA-905 連接器，可連接光纖，並配備 5V/1.6A 電源。套件中使用了專門設計的直接連接螢光比色皿固定器，激發和發射訊號的方向呈 90° 垂直角。使用者需要事先提供一些資訊，說明測量所需的激發波長。

套件包括 該套件配備氘鹵素光源和鎢鹵素光源、光學工作台、同步電纜、用於同步 UV-Vis 和 NIR 區域兩台不同光譜儀輸出的纖維光學電纜、用於暗光減除的帶蓋比色皿支架等。

恒電位儀相容性：MF-SPEC-ECKIT-3 與任何具有輔助連接埠選項的 PalmSens 恒電位儀/恒電流儀相容，如 PalmSens 4、EmStat4X 和 MultiPalmSens 4 系列。

如何訂購： 只需從上述相容選項中選擇任何一款恒電位/恒電流儀，並在訂單中添加以下兩項即可。自開箱起，您就可以進行即插即用的 Vis-NIR 區域 Spectro-EC 分析。

Spectro-EC 槽套件選項： 批量流動式 Spectro-EC 槽選項如下。每個 Spectro-EC 槽套件包括一個白金/金的小型金屬網、一個薄層石英玻璃槽、一個帶孔的槽蓋、一個吹掃管和白金對電極。

EF-1350： Spectro-EC 槽套件，含白金材質的小型金屬網 (1 mm 網徑長度)。
EF-1362： Spectro-EC 槽套件，含白金材質的小型金屬網 (0.5 mm 網徑長度)。
EF-1351:    Spectro-EC 槽套件，含金材質的小型金屬網 (1 mm 網徑長度)。
EF-1363： Spectro-EC 槽套件，含金材質的小型金屬網 (0.5 mm 路徑長度)。

進階選項： 更多進階的流式 Spectro-EC 槽套件也可從下列選項中選擇。如需在進階配件選項中增加更多客製化選項，請與我們聯絡。

技術資訊：

光譜儀： AvaSpec-ULS2048CL-EVO
光源： AvaLight-HPLED
螢光比色皿座： CUV-FL-UV-VIS

MF-SPEC-ECKIT-3: Spectro-EC Kit for Fluorescence Analysis

The MF-SPEC-ECKIT-3 is a highly customized Spectro-EC kit for Fluorescence based applications. It is equipped with our newly launched AvaSpec-ULS2048x64TEC-EVO spectrometer which is an updated version with improved electronics and cooling. The back-thinned detector is equipped to provide a high level of sensitivity in the UV and IR regions. The kit is equipped with AvaLight-HPLED light source to produce continuous or pulsed spectral output at different wavelengths. It also has an SMA-905 connector to connect fiber optics and come with a 5V/1.6A power supply. A specially designed direct attach fluorescence cuvette holder is used in the kit where excitation and emission signals are oriented at perpendicular 90° angle to each other. Some information upfront is needed from the user on the excitation wavelength that is needed for the measurement.

Technical Brochure: Spectroscopy Configurations for Fluorescence Applications

Included: The kit is fully equipped with deuterium-halogen and tungsten halogen light sources, optical bench, a sync cable, set of fiber optics cables to synchronize the output from two different spectrometers in UV-Vis and NIR region, a cuvette holder with lid for dark-light subtraction, and more.

Potentiostat Compatibility: MF-SPEC-ECKIT-3 is compatible with any of the PalmSens Potentiostats / Galvanostats with auxiliary port options as PalmSens 4, EmStat4X and MultiPalmSens 4 series.

How to Order: Simply select any of the Potentiostat / Galvanostat from the compatible options above and add the following two items to the order. You are ready to conduct plug-n-play Vis-NIR region Spectro-EC Analysis from day one.

SPECTRO-EC CELL KIT OPTIONS: Batch flow type Spectro-EC Cell options are available below. Each Spectro-EC cell kit includes a Pt / gold mini-grid, a thin layer quartz glass cell, a teflon lid with holes, a purging tube, and platinum counter electrode.

EF-1350: Spectro-EC cell kit with Pt mini-grid (1 mm path length)
EF-1362: Spectro-EC cell kit with Pt mini-grid (0.5 mm path length)
EF-1351: Spectro-EC cell kit with Au mini-grid (1 mm path length)
EF-1363: Spectro-EC cell kit with Au mini-grid (0.5 mm path length)
ADVANCED OPTIONS: More advanced flow-based Spectro-EC Cell kits are also available from the options below. Please contact us to add more customization options in advanced accessory option.

Technical Information:​

Spectrometers: AvaSpec-ULS2048CL-EVO
Light Source: AvaLight-HPLED
Fluorescence Cuvette Holder: CUV-FL-UV-VIS
