用於 Vis-NIR 分析的 Spectro-EC 套件

MF-SPEC-ECKIT-2 是專為 PalmSens 客戶量身打造的光譜-電化學套件，客戶希望利用可見光-近紅外線光譜擴展其電化學研究。此套件可讓使用者在 200-2500 nm的完整波長範圍內，進行完全同步的電化學與 UV-Vis + NIR 光譜混合原位分析。PalmSens 的  PSTrace 軟體可顯示完整的 Spectro-EC 曲線，包括全範圍的 UV-Vis 和 NIR。客製化選項可用於使用白金、金和碳作為工作電極的流動槽類型的應用。使用白金或金網電極作為工作電極，可以進行批量流動槽類型分析。

多種光柵可供選擇範圍。

包含在內：
該套件配備氘鹵素光源和鎢鹵素光源、光學工作台、同步電纜、一組用於同步兩個不同 UV-Vis 和 NIR 區域光譜儀的輸出的光纖光學電纜、一個用於暗光減除的帶上蓋的比色皿支架等。
如何訂購：只需從上述相容選項中選擇任何一款恒電位/恒電流儀，並在訂單中添加以下兩項即可。從第一次開始，您就可以進行即插即用的 Vis-NIR 區域 Spectro-EC 分析。

Spectro-EC 槽套件選項： 批量流動式 Spectro-EC 槽選項如下。每個 Spectro-EC 槽套件包括一個白金/金的小型金屬網、一個薄層石英玻璃槽、一個帶孔的槽蓋、一個吹掃管和白金對電極。

EF-1350： Spectro-EC 槽套件，含白金材質的小型金屬網 (1 mm 網徑長度)。
EF-1362： Spectro-EC 槽套件，含白金材質的小型金屬網 (0.5 mm 網徑長度)。
EF-1351:    Spectro-EC 槽套件，含金材質的小型金屬網 (1 mm 網徑長度)。
EF-1363： Spectro-EC 槽套件，含金材質的小型金屬網 (0.5 mm 路徑長度)。

技術資訊：
分光儀： AvaSpec-ULS2048CL;AvaSpec-NIR256/512-2.5-HSC-EVO
光源： Avalight-DHc;AvaLight-HAL-S-Mini

MF-SPEC-ECKIT-2: Spectro-EC Kit for Vis-NIR Analysis

The MF-SPEC-ECKIT-2 is a customized Spectro-Electrochemistry Kit made for our PalmSens customers wanting to expand their electrochemical research with Vis-NIR spectroscopy. This kit will allow users to conduct fully synchronous in-situ analysis for electrochemistry hybridized with UV-Vis + NIR Spectroscopy in the full wavelength range of 200-2500 nm. The PSTrace software from PalmSens will show one complete Spectro-EC curve combined for both UV-Vis and NIR in full range. Customizations options are available for flow cell type application using a platinum, gold and carbon as working electrodes. Batch cell type analysis is possible using a platinum or gold mesh electrode as a working electrode.

Wide variety of gratings are also available for selectable ranges.

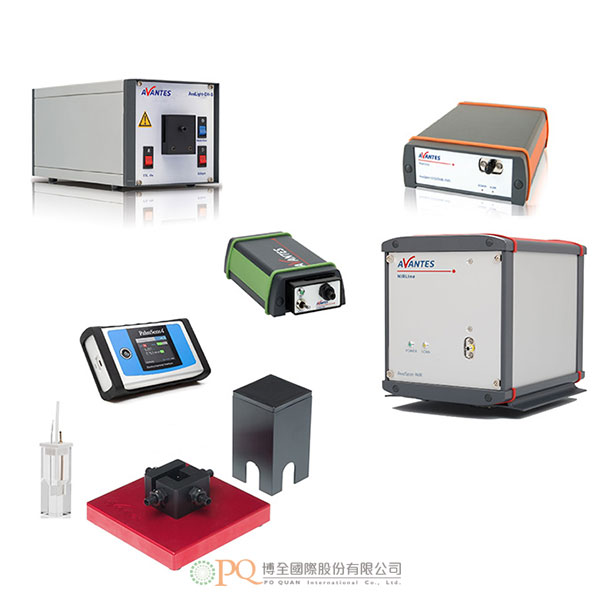

Included: The kit is fully equipped with deuterium-halogen and tungsten halogen light sources, optical bench, a sync cable, set of fiber optics cables to synchronize the output from two different spectrometers in UV-Vis and NIR region, a cuvette holder with lid for dark-light subtraction, and more.

Potentiostat Compatibility: MF-SPEC-ECKIT-2 is compatible only with the selected PalmSens Potentiostats / Galvanostats with auxiliary port options as PalmSens 4, EmStat4X and MultiPalmSens 4 series.

How to Order: Simply select any of the Potentiostat / Galvanostat from the compatible options above and add the following two items to the order. You are ready to conduct plug-n-play Vis-NIR region Spectro-EC Analysis from day one.

SPECTRO-EC CELL KIT OPTIONS: Batch flow type Spectro-EC Cell options are available below. Each Spectro-EC cell kit includes a Pt / gold mini-grid, a thin layer quartz glass cell, a teflon lid with holes, a purging tube, and platinum counter electrode.

EF-1350: Spectro-EC cell kit with Pt mini-grid (1 mm path length)
EF-1362: Spectro-EC cell kit with Pt mini-grid (0.5 mm path length)
EF-1351: Spectro-EC cell kit with Au mini-grid (1 mm path length)
EF-1363: Spectro-EC cell kit with Au mini-grid (0.5 mm path length)
ADVANCED OPTIONS: More advanced flow-based Spectro-EC Cell kits are also available from the options below. Please contact us to add more customization options in advanced accessory option.

Technical Information:

Spectrometers: AvaSpec-ULS2048CL ; AvaSpec-NIR256/512-2.5-HSC-EVO
Light Sources: Avalight-DHc ; AvaLight-HAL-S-Mini
