數位多通道分析儀

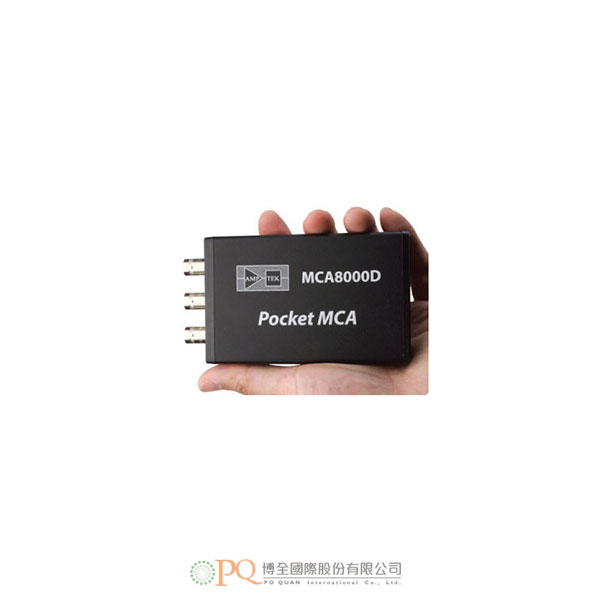

Amptek 的 MCA-8000D 是一款先進、輕巧、高性能的數位多通道分析儀（MCA）。 它取代了 MCA-8000A，可提供相同的功能，但具有更少的死區時間、現代化的通信介面（USB、RS-232 和乙太網路）以及更高的數據傳輸速率。 由於它不進行數位脈衝整形，因此它與類比脈衝整形系統相容。
高速 ADC（100 MHz 16 bit ADC）和精密的數位邏輯提供了卓越的性能。 MCA-8000D 將輸入信號（類比整形放大器的輸出）數位化，以測量脈衝高度並獲得脈衝高度頻譜。 具有 10 ns 轉換時間的高速 ADC 減少了死區時間，從而提高了傳遞量。 數位電路提供了高精度和穩定性。
MCA-8000D 包括三個介面：USB（全速 USB 2.0）、RS-232（高達 115 kB）和乙太網路（10base-T）。 它使用與 Amptek DP5、PX5 和 X-123 等數位信號處理器相同的 DPPMCA 軟體版本。 MCA-8000D 可以通過 USB 或外部交流/直流電源供電。
MCA-8000D 是一款高性能、低功耗的輕巧儀器，用途廣泛且使用方便。

特點

• 與傳統類比脈衝整形相容。
• MCA 和 MCS 模式。
• 具有數位脈衝高度測量的高速 ADC（100 MHz，16 bit）。
• 8k 數據通道。
• 最小脈衝峰值時間 500 ns（200 ns 整形）。
• 轉換時間 10 ns。
• 滑動比例線性化。
• 微分非線性 <±0.6%
• 積分非線性 <±0.02%
• 兩種峰值檢測模式 :
  • 閾值后的第一個峰值（核光譜分析）。
  • 閾值后的絕對峰值（潔凈室中的粒子計數器校準）。
• 用於符合和反符合的兩個TTL相容閘。
• USB、RS-232 和乙太網路通信介面。
• 尺寸：5 x 2.8 x 0.8 英寸/125 x 71 x 20 mm。
• 重量： <165 g。
• 免費顯示和擷取軟體支援ROI、能量校正、峰值資訊、MCA 配置和檔案管理。
• 免費軟體開發工具包（SDK）。 用於自定義軟體應用程式的完整協定和範例代碼。
• 可選 PA 套件，用於空氣傳播和懸浮顆粒檢測應用。

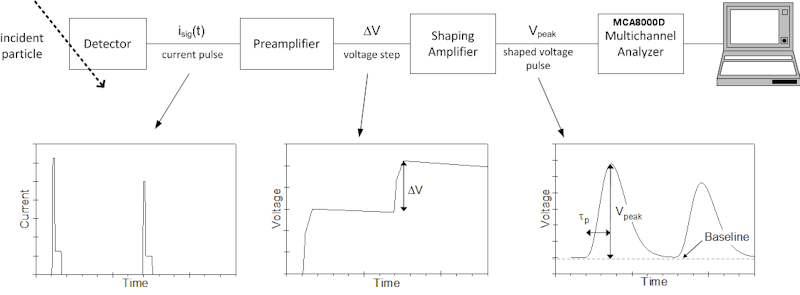

完整的脈衝高度分析系統
如需了解更多信息，請立即聯繫我們！

外部控制和指示燈

電源

連接

機械

Amptek’s MCA-8000D is a state-of-the-art, compact, high performance, digital MultiChannel Analyzer (MCA). It replaces the MCA-8000A, providing the same functionality with reduced dead time, modern communications interfaces (USB, RS-232, and Ethernet), and much higher data transfer rates. Because it does not implement digital pulse shaping, it is compatible with analog pulse shaping systems.

Superior performance is obtained from a high speed ADC (a 100 MHz 16 bit ADC) and sophisticated digital logic. The MCA-8000D digitizes the input signal (the output of an analog shaping amplifier) to measure the pulse height and obtain the pulse height spectrum. The high speed ADC, with a 10 ns conversion time, reduces dead time thus increasing throughput. The digital circuitry yields high accuracy and stability.

The MCA-8000D includes three interfaces, USB (USB 2.0 full speed), RS-232 (up to 115 kB), and Ethernet (10base-T). It uses the same DPPMCA software package as Amptek’s digital signal processors, including the DP5, PX5, and X-123. The MCA-8000D can be powered over USB or with an external AC/DC power supply.

Features

• Compatible with traditional analog pulse shaping
• MCA and MCS modes
• High speed ADC (100 MHz, 16 bit) with digital pulse height measurement
• 8k data channels
• Minimum pulse peaking time 500 ns (200 ns shaping)
• Conversion time 10 ns
• Sliding-scale linearization
• Differential nonlinearity <±0.6%
• Integral nonlinearity <±0.02%
• Two peak detection modes
  • first peak after the threshold (nuclear spectroscopy)
  • absolute peak after the threshold (particle counter calibration in clean rooms)
• Two TTL compatible gates for coincidence and anticoincidence
• USB, RS-232, and Ethernet communication interfaces
• Dimensions: 5 x 2.8 x 0.8 in / 125 x 71 x 20 mm
• Weight: <165 g
• Free Display and Acquisition software. Supports ROI, energy calibration, peak information, MCA configuration, and file management
• Free Software Development Kit (SDK). Complete protocol and example code to be used in custom software applications

Optional PA Package for airborne and suspended particle detection applications

Complete Pulse Height Analysis System
Contact us for more information today!

General Characteristics

Pulse-Height Digitizer	High speed 100 MHz, 14 bit ADC with digital pulse height measurement.
Input Ranges	0 to 1 V or 0 to 10 V (software selectable) (over range events are discarded)
Number of Channels	256, 512, 1k, 2k, 4k, or 8k (software selectable)
Minimum Input Risetime	≥500 ns to meet specifications.
Dead Time Per Pulse	10 ns plus pulse shaping time
Peak Detection Modes (See Figure 6)	Separate Peaks (V1): Standard to nuclear instrumentation MCAs. Absolute Peak Above Threshold (V2): Typically used in airborne particle sizing analyzers, in environmental air monitoring systems and in aerosol research.
Acquisition Modes	MCA and MCS (multichannel scaling) down to 10 ms/channel.
Differential Nonlinearity	<±0.6% from 5 mV to full scale.
Integral Nonlinearity	<±0.02% over full scale.
Gain Stability	±10 ppm/°C (typical).
Zero Drift	±10 ppm/°C (typical)
Low Level Discriminator	Software selectable threshold, in increments of one channel.
Counts per Channel	Maximum = 16.7 x 106 counts (3 bytes).
Real and Live Timers	Data acquisition real or live time preset. Maximum preset time 4,294,967.29 seconds (10 mS precision), or 999,999.999 seconds (1 mS precision). Shorter accumulation times can be achieved by gating the input signal with Gate 1 or Gate 2. : ; 999,999.999 s (0.001 s precision). : 99,999,999.9 s (0.1 s precision) : 4,294,967,295 (232-1) in channel or ROI
Real and Live Time	4,294,967.295 s (0.001 s precision)
Acquisition Time	1,677,721.599 s (0.001 s precision)
Preset Counts	4,294,967,295 (2³²-1) in channel or ROI
Interface	RS232: 115.2 or 57.6 Kbaud USB: Standard 2.0 full speed (12 Mbps) Ethernet: Standard 10base-T (UDP)
Operating Temperature	-20 °C to +60 °C.
	TUV Certification Certificate #: CU 72131640 01 Tested to: UL 61010-1:2012 CAN/CSA-C22.2 NO. 61010-1-12
