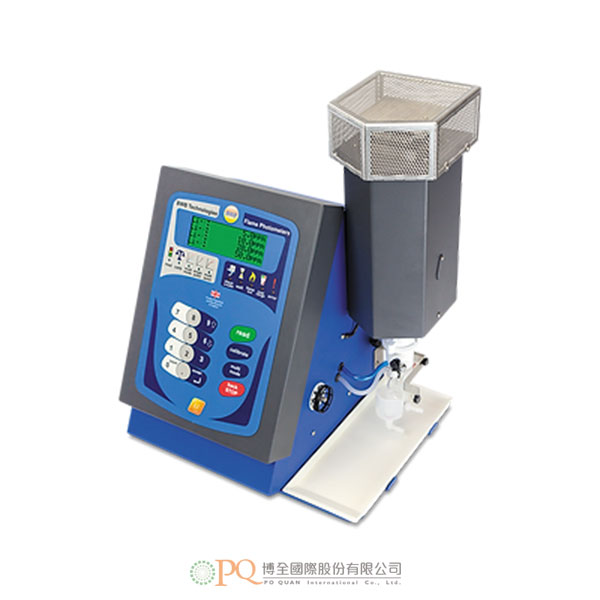

Lithium 火焰光度計
Li Flame Photometer 型號：Lithium-
BWB 火焰光度計一直以高度穩定和準確的鋰測量而聞名。透過專有的 BWB 光學陣列檢測系統進行具體調整和優化，憑藉這項制勝公式，在火焰光度計領域發展有進一步的突破。
非常感謝密西西比大學的 Richard Roman 博士在這個Li專用的火焰光度計設計方面提供的寶貴幫助。
BWB Lithium使用多個鋰檢測通道。這項最新配置是根據與客戶協商制定的規格專門設計的。
BWB Lithium是同類產品中的第一款。專為單一用途而設計，是迄今為止製造的最準確、最先進的鋰火焰光度計。
產品特點:
- 多個鋰檢測通道，專注於高精度鋰測量。
- 內建空氣壓縮機。
- 含括基本儀器所需器具，可協助您入門。
- 使用者可選擇小數位。
- 直覺的使用者介面真正易於使用。
- 顯示提示引導操作。
- 內建空氣壓縮機。
- 透過 PC 連結與 BWB 的 FP-PC 應用程式共享數據。
- 提供 IQ、OQ、PQ 基於網路的認證。
-
Sample rate
2 – 3.5ml/min
Tubing materials
Silicone and Tygon®
Required desk space for Instrument
50cm (H) x 45cm (W) x 45cm (D)*
For Safety reasons the Flame photometer requires 1m
of unobstructed space above to allow dissipation of
heat from the chimney.Instrument size
Li Flame Photometer
51cm (H) x 39cm (W) x 35cm (D)
(20in x 15in x 14in)Shipping
65cm (H) x 49cm (W) x 43cm (D)
(25in x 19in x 17in)Weight
Li Flame Photometer – 14kg (30.8lbs)
Shipping – 25kg (55.1lbs)
Power requirements
100V – 250V AC at 50 or 60Hz
automatically selectingReadout
LCD, four line, alpha numeric, back lit.
Optimal range
Single point calibration
Li 0.05 – 50ppm
Multi Point Calibration
Li 0.05 – 1000ppm
Reproducibility
<1% Coefficient of variability for 20 consecutive samples
over ten minutes at concentrations of 100ppm or less.
(After instrument stabilisation).Chemical Interference
Na/K/Li = <0.5% to each other when equal in concentration at <100ppm
Limit of detection (LOD) and limit
of quantification (LOQ)LOD LOQ
Li – 0.02ppm Li – 0.05ppm
Time to stability
Less than 15 seconds after sample
is introduced into the flameIons Measured
4 independent Li channels,
each providing up to 10 points of calibrationInterfaces
USB
0-2.5 volt output
(based on sample concentration linked to element of users choice)Optional 4-20mA output in place
of the aboveOptional integrated printer
.CSV and .PDF generated reports and files via FP-PC software
Recommended minimum warm up
time based on ambient temperature21ºC – 25 minutes
Fuel requirement
Propane, Butane or Natural Gas*
regulated to 19Bar. Flow rate of 0.4l/min*with modifications.
BWB Technologies recommends either Propane or Butane for
optimum results. -
- Multiple lithium detection channels focused for high accuracy lithium measurements
- Built-in air compressor
- Solutions and labware included
- User selectable decimal places
- Intuitive user interface for true ease of use
- Display prompts step by step operation
- Built-in air compressor
- Data sharing via pc link with BWB’s FP-PC app
- IQ, OQ, PQ web-based certification available
-
Sample rate
2 – 3.5ml/min
Tubing materials
Silicone and Tygon®
Required desk space for Instrument
50cm (H) x 45cm (W) x 45cm (D)*
For Safety reasons the Flame photometer requires 1m
of unobstructed space above to allow dissipation of
heat from the chimney.Instrument size
Li Flame Photometer
51cm (H) x 39cm (W) x 35cm (D)
(20in x 15in x 14in)Shipping
65cm (H) x 49cm (W) x 43cm (D)
(25in x 19in x 17in)Weight
Li Flame Photometer – 14kg (30.8lbs)
Shipping – 25kg (55.1lbs)
Power requirements
100V – 250V AC at 50 or 60Hz
automatically selectingReadout
LCD, four line, alpha numeric, back lit.
Optimal range
Single point calibration
Li 0.05 – 50ppm
Multi Point Calibration
Li 0.05 – 1000ppm
Reproducibility
<1% Coefficient of variability for 20 consecutive samples
over ten minutes at concentrations of 100ppm or less.
(After instrument stabilisation).Chemical Interference
Na/K/Li = <0.5% to each other when equal in concentration at <100ppm
Limit of detection (LOD) and limit
of quantification (LOQ)LOD LOQ
Li – 0.02ppm Li – 0.05ppm
Time to stability
Less than 15 seconds after sample
is introduced into the flameIons Measured
4 independent Li channels,
each providing up to 10 points of calibrationInterfaces
USB
0-2.5 volt output
(based on sample concentration linked to element of users choice)Optional 4-20mA output in place
of the aboveOptional integrated printer
.CSV and .PDF generated reports and files via FP-PC software
Recommended minimum warm up
time based on ambient temperature21ºC – 25 minutes
Fuel requirement
Propane, Butane or Natural Gas*
regulated to 19Bar. Flow rate of 0.4l/min*with modifications.
BWB Technologies recommends either Propane or Butane for
optimum results.
