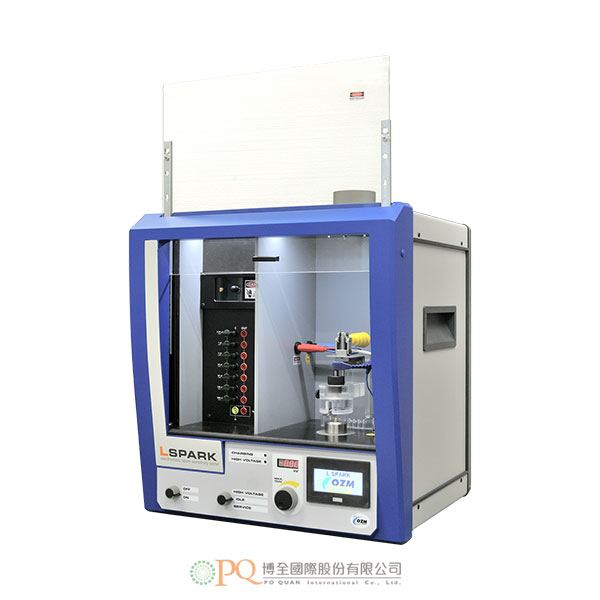

靜電火花靈敏度測試儀

ELECTROSTATIC SPARK SENSITIVITY TESTER L SPARK 型號:L SPARK
L SPARK 是高能量材料靜電敏感度測試儀器系列的最新成員。L SPARK 試驗設備專為測試顆粒床層的裸露高能量材料(煙火成分、一級和二級炸藥以及推進劑)而設計。
L SPARK 還能測試電控引爆裝置 (EED) 對 ESD 能量的抵抗能力。

對於高能量物質的測試,L SPARK 採用了比較法概念-在給定的放電條件下,將被測材料的反應與參考材料以及已知的 ESD 行為進行比較。L SPARK 可以在最短的時間內以最低的成本為使用者提供與被測物質的 ESD 事件相關的風險的基本資訊。這種工作原理不需要對放電進行任何進一步的能量評估或放電診斷。
  • L SPARK 是高能量材料靜電敏感度測試儀器系列的最新成員。L SPARK 試驗設備專為測試顆粒床層的裸露高能量材料(煙火成分、一級和二級炸藥以及推進劑)而設計。
    L SPARK 還能測試電控引爆裝置 (EED) 對 ESD 能量的抵抗能力。

    對於高能量物質的測試,L SPARK 採用了比較法概念-在給定的放電條件下,將被測材料的反應與參考材料以及已知的 ESD 行為進行比較。L SPARK 可以在最短的時間內以最低的成本為使用者提供與被測物質的 ESD 事件相關的風險的基本資訊。這種工作原理不需要對放電進行任何進一步的能量評估或放電診斷。


    優勢和特點

    • 設計緊湊。
    • 測試成本低。
    • 適用於各類顆粒狀爆炸物相關風險的快速基本篩檢。
    • 選購配件擴展了 L SPARK 的功能,可根據 EN 標準測試電控引爆裝置(雷管、點火器、手榴彈等)的防靜電能力。
    • 外部鋼件測試室(容量可達 2 NEQ)。
    • 火花隙幾何形狀的多功能性可輕鬆修改火花隙幾何形狀。


    符合

    • EN 13763-13 《民用爆炸物 - 雷管和繼電器 - 13部分:確定電雷管對靜電放電的抵抗力》。
    • EN 13763-21 《民用爆炸物. 雷管和傳爆管. 21部分:電雷管的閃絡電壓測定》。
    • EN 16265       《煙火製品,其它煙火製品,點火裝置: 試驗 6.3.19. 電動點火器》。
    • EN 13938-2   《民用炸藥-推進劑和火箭推進劑,第 2 部分:抗靜電能的測定》。

    手動操作試驗台 電容器選擇開關板



  • L SPARK 與 X SPARK 10 的技術參數比較
    L SPARK™ 與 X SPARK 10™ 的應用比較







  • The L SPARK™ is the newest member of the family of instruments dedicated to the testing of ESD sensitivity of energetic materials. The L SPARK test instrument is designed for the testing of bare energetic materials (pyrotechnic compositions, primary and secondary explosives and propellants) in the granular bed form. The L SPARK is also capable of performing tests of the resistance of ElectroExplosive Devices (EED’s) to ESD energy.

    For testing energetic substances the L SPARK employs the comparative method  concept – the response of the tested material is compared with the reference material along with the known  ESD behavior under the given discharge conditions. The L SPARK provides the user with basic information about the risk  associated with the ESD event of the tested substance within the least time and at minimum costs. This principle of operation  does not require any further energy evaluation or discharge diagnostics of the discharge.

    APPLICATIONS
    The L SPARK is suitable for applications where only a basic screening of the risk associated with granular energetic materials is required along with impact and friction sensitivity data. The L SPARK’s simple operation and low running costs allow for the testing of a large count of samples in a short period of time with minimal running costs. This feature makes the L SPARK ideally suited for production facilities (e.g. for periodic production tests, or for the quick assessments of new materials/components used in the manufacturing processes). Adoption of the EED´s testing capability makes the L SPARK a good choice for national notified bodies (testing/certification laboratories) or for manufactures of initiating devices such a igniters, squibs or detonators.

    ADVANTAGES & FEATURES

    • Compact design
    • Low running costs
    • Suitable for a quick basic screening of the risks associated with all types of granular explosives
    • Optional available accessories expand the L SPARK’s capability for the testing of the ESD resistance  of the Electro-Explosive Devices (detonators, igniters, squibs, etc.) according to the EN standardization

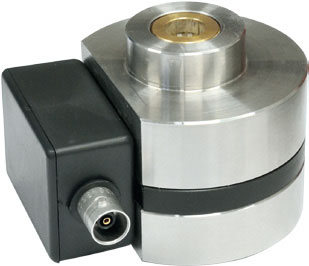

    • External steel testing chamber (capacity up to 2-gram NEQ)
    • The versatility of the spark gap geometry allows for the easy modification of the spark gap geometry


    COMPLIANCE

    • EN 13763-13 Explosives for civil uses – Detonators and relays, Part 13: Determination of resistance of electric detonators against electrostatic discharge
    • EN 13763-21 Explosives for civil uses – Detonators and relays, Part 21: Determination of flash-over voltage of electric detonators
    • EN 16265 Pyrotechnic articles, Other pyrotechnic articles, Ignition devices: Test 6.3.19. for electric igniters
    • EN 13938-2 Explosives for civil uses – Propellants and rocket propellants, Part 2: Determination of resistance to electrostatic energy

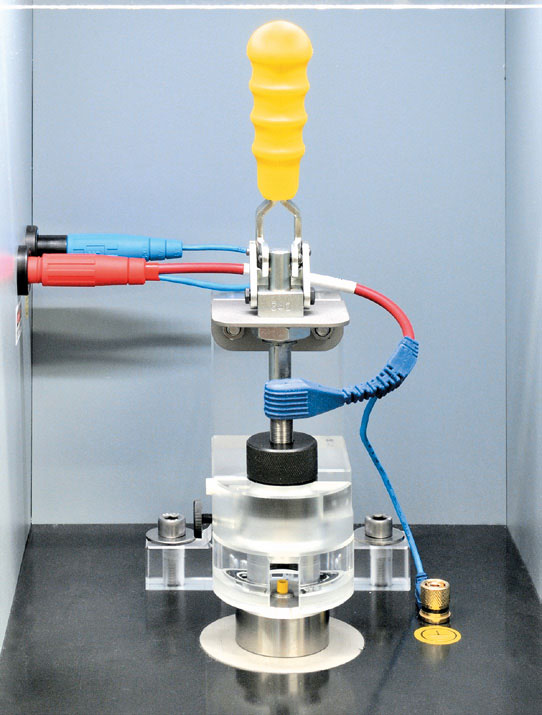

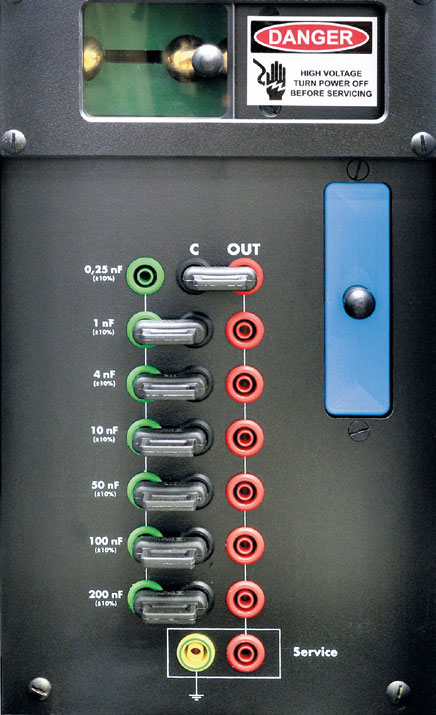

    Manually operated test stand Capacitor selector switchboard
  • L SPARK vs. X SPARK 10 Comparison of Technical Parameters

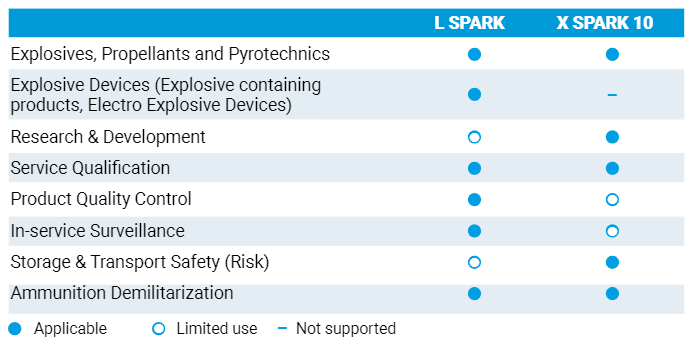

    L SPARK vs. X SPARK 10 Comparison of Applications
