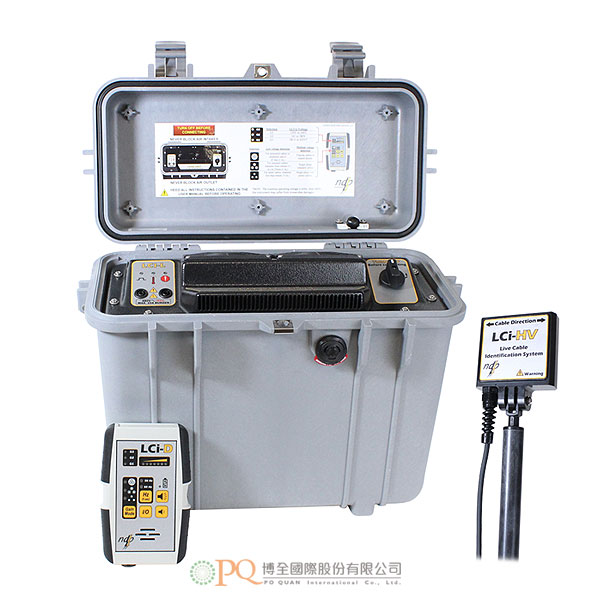

帶電電纜識別系統

energized cable identification system 型號：LCI™

LCi™ 的設計用途為準確地識別帶電的低壓或中壓電纜。其簡易、輕便的設計使其非常適用於配電變壓器二次側低壓電纜的識別；配上高壓探頭，也同樣能識別一次側的中壓饋線電纜。
識別的目的是在電纜上做好標識（標籤、掛牌），方便以後的維護工作。

產品特點產品規格 Features Specifications

LCI™ 的設計用途為準確地識別帶電的低壓或中壓電纜。其簡易、輕便的設計使其非常適用於配電變壓器二次側低壓電纜的識別；配上高壓探頭，也同樣能識別一次側的中壓饋線電纜。
識別的目的是在電纜上做好標識（標籤、掛牌），方便以後的維護工作。

產品介紹影片

LCI™ 發射器

Dimensions	9.2 x 15 x 2.5 cm (3.6 x 5.9 x 1 inches)
Rechargeable battery	Lithium-Ion, 3.7VDC, 900mA
External charger	12VDC, 1.5A
Power consumption	80 mA
Battery autonomy	4 hours
Charging time	5 hours
Operating temperature	-10 °C to 45 °C (14 to 113 °F)
Storage temperature	-20 °C to 45°C (-4 to 113 °F)
Charge temperature	0°C to 45°C (32 to 113°F)
IP rating	IP54
Relative humidity	Max. 85% RH at +40 °C, non-condensing
Altitude	Up to 2000 m
Outdoor use	Can be used outdoor, but not exposed to liquids

LCI™ 接收器

Dimensions	50.2 x 40.0 x 18.8 cm (19.8 x 15.8 x 7.4 inches)
Weight	6.3 kg (14 lbs)
Voltage input	120 VAC to 420 VAC, 50-60 Hz
Current load	8A - 10A peak
Pulse duration	100 ms
Power (continuous)	16 W to 96 W
Pulse repetition	Every 4 to 5 seconds min.
Operating temperature	-10 to 45°C (14 to 113 °F)
Storage temperature	-20 to 45°C (-4 to 113 °F)
Protection (IP rating)	IP54 closed, IP20 opened, IP32 ajar
Relative humidity	Max. 85% RH at 40 °C, non-condensing
Altitude	Up to 2000 m
Outdoor use	Can be used outdoor, but not exposed to liquids

The LCI™ system is intended for energized cable identification on secondary and primary circuits. This innovative solution features a dual frequency technique that eliminates false identifications. The LCI™ is designed to be easy to use, safe for the user and cost-effective.

Introduction Video

LCI™ Detector

Dimensions	9.2 x 15 x 2.5 cm (3.6 x 5.9 x 1 inches)
Rechargeable battery	Lithium-Ion, 3.7VDC, 900mA
External charger	12VDC, 1.5A
Power consumption	80 mA
Battery autonomy	4 hours
Charging time	5 hours
Operating temperature	-10 °C to 45 °C (14 to 113 °F)
Storage temperature	-20 °C to 45°C (-4 to 113 °F)
Charge temperature	0°C to 45°C (32 to 113°F)
IP rating	IP54
Relative humidity	Max. 85% RH at +40 °C, non-condensing
Altitude	Up to 2000 m
Outdoor use	Can be used outdoor, but not exposed to liquids

LCI™ Load

Dimensions	50.2 x 40.0 x 18.8 cm (19.8 x 15.8 x 7.4 inches)
Weight	6.3 kg (14 lbs)
Voltage input	120 VAC to 420 VAC, 50-60 Hz
Current load	8A - 10A peak
Pulse duration	100 ms
Power (continuous)	16 W to 96 W
Pulse repetition	Every 4 to 5 seconds min.
Operating temperature	-10 to 45°C (14 to 113 °F)
Storage temperature	-20 to 45°C (-4 to 113 °F)
Protection (IP rating)	IP54 closed, IP20 opened, IP32 ajar
Relative humidity	Max. 85% RH at 40 °C, non-condensing
Altitude	Up to 2000 m
Outdoor use	Can be used outdoor, but not exposed to liquids
