Koenen測試儀

Koenen測試儀用於測定固體或液體物質在高度封閉條件下受到高熱時的反應（爆炸性）。該裝置的設計為 "即用型 "的解決方案，由安裝在可攜平台上的保護箱、T 型氣體燃燒器、管道和控制單元所組成。

應用

將待測物質（液體、固體或膏狀物質）裝入一端有標準孔板的鋼管內，鋼管直接暴露在火焰中加熱。 測試完成後用鋼管變形或破裂程度來評估物質的熱敏感度，測試結果用於確定該物質是否過於危險而不能按測試時的狀態來運輸。 測試還提供數據用以選擇危險警示標誌，以及選擇與新的和現有產品相關的危險警示用語。

優勢和特點

• 即用型解決方案 - 所有組件均安裝在可攜式平台上。
• 不銹鋼設計，經久耐用。
• 透過控制裝置的觸控螢幕進行遠端操作。
• 遙控的點火燃燒器。
• 用於樣品製備的遙控氣動裝填機構。
• 提供全套配件和備用消耗品。
• 高品質的耗材，價格實惠。

用於樣品製備的裝填機構	KT 300 消耗品

符合

• UN Recommendation on the Transport of Dangerous Goods,Manual of Tests and Criteria, [11.5.1 Test 1(b)], [12.5.1 Test 2(b)], [18.6.1 Test 8(c)] and [25.4.1 Test E.1]
• Council Regulation (EC) No 440/2008; A.14
• STANAG 4491
• AOP 7 Ed.2, 201.08.002

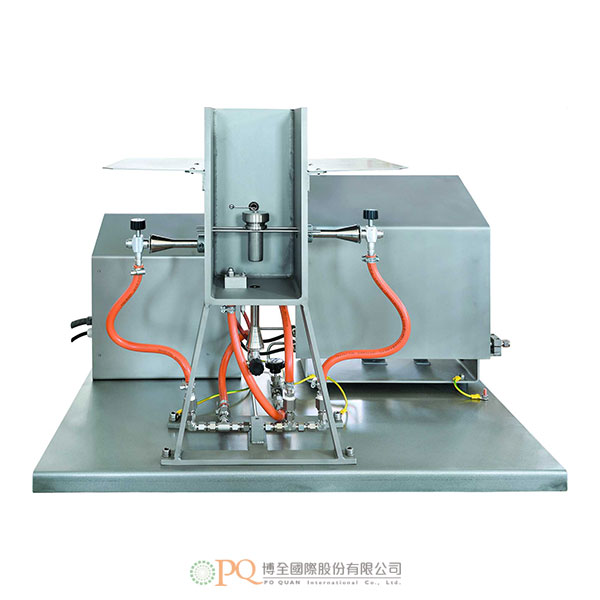

The Koenen Tester KT 300 is used to determine the reaction (explosibility) of solid or liquid substances when subjected to the intensive heat under heavy confinement. The Koenen Tester KT 300 is designed as a “ready-to-use” solution consisting of a protective box, T-gas burners, pipeline and control units installed on a portable plaform.

APPLICATIONS
The Koenen test involves heating the tested substance in a steel tube closed by orifice plate with variable hole diameters, by the gas burners, to determine whether the substance can explode in the environment of intense heat under defined confinement. Data obtained from the Koenen test can be used in determining a substance’s hazard clas sification for transport and storage and for evaluating the degree of venting required to avoid an explosion during processing operations.

ADVANTAGES & FEATURES

• Ready-to-use solution – all parts installed on a portable platform
• Durable design made of stainless steel
• Remotely operated via touch screen of a control unit
• Remotely ignited burners
• Remotely controlled and pneumatically actuated tamping machine for sample preparation
• Full set of accessories and spare parts
• Premium quality consumables at affordable prices

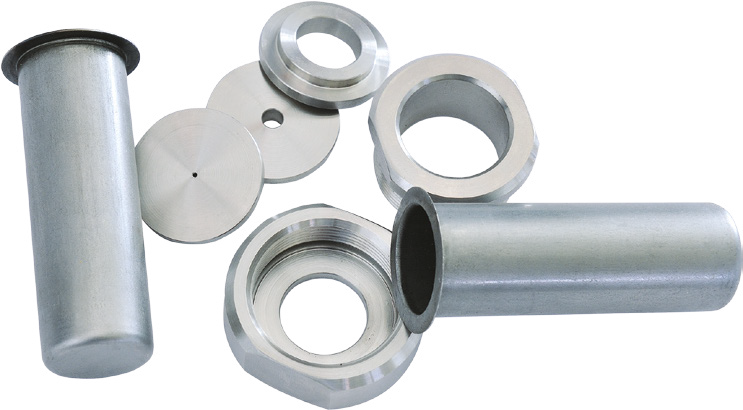

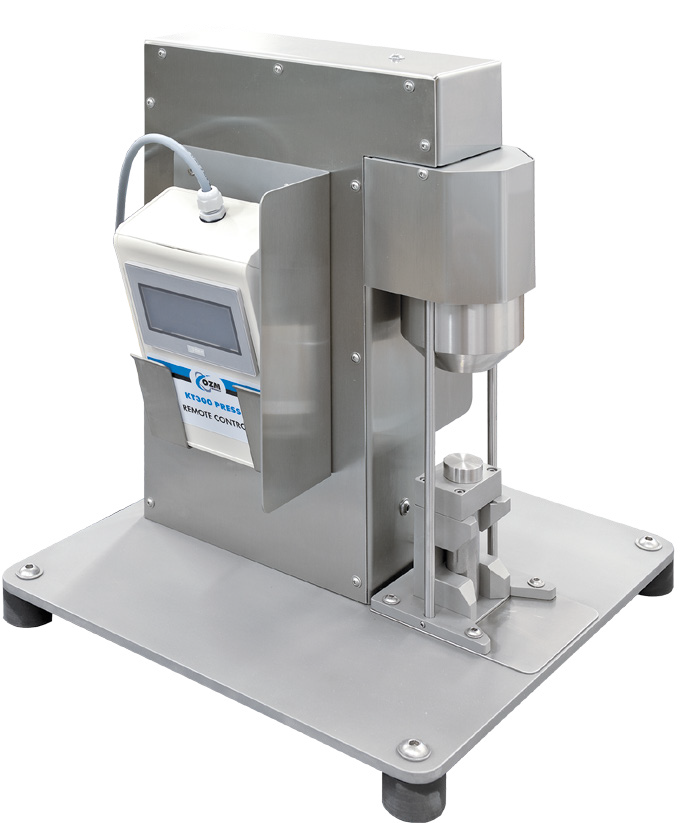

Tamping machine for sample preparation	KT 300 consumables

 COMPLIANCE

• UN Recommendation on the Transport of Dangerous Goods,Manual of Tests and Criteria, [11.5.1 Test 1(b)], [12.5.1 Test 2(b)], [18.6.1 Test 8(c)] and [25.4.1 Test E.1]
• Council Regulation (EC) No 440/2008; A.14
• STANAG 4491
• AOP 7 Ed.2, 201.08.002
