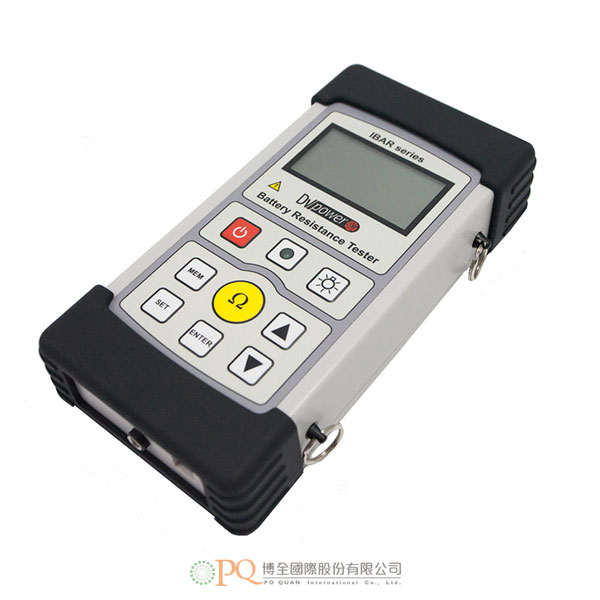

電池阻抗測試儀

•  手持式輕量型裝置
•  電池阻抗測量範圍: 0 - 5Ω
•  電壓測量範圍: ± 60 V
• 快速紀錄及儲存內部電阻，浮動電壓及電池間連接電阻
•  偵測電阻範圍的自動偵測模式
•  容量測試時，電池電壓測量的工具
•  使用DV-B Win 軟體的測試結果分析

DV-B Win 軟體:

• 結果可以多種形式表現，例如表格形式和掃描線形圖， 以輕鬆地進行電池趨勢分析和結果分析。
• 可對測量數據進行詳細的比較和分析。
• 使用者定義電池內部電阻、電壓的限值及電池溫度，會與測量結顯示果在掃描圖中。
• 當檢測到電阻、電壓或溫度位準超出預設限制值時，DV-Win會提供警報。
• 可產生資料蒐集的測試報告，以全面評估電池的健康狀況。
• 數字和圖形結果可以從DV-B Win 匯出並選擇表格，例如Excel、PDF、Word或RTF格式。
• 也可提供其他類型的數據格式（jpeg、png、doc）匯入標準化的DV-B Win 報告。

技術規格:

電池電源

•  類型:         2 顆2900 mAh 鋰電池
• 電壓:         7,4 V
•  充電時間:  6小時

AC轉換器

•  輸入電壓:  90 ~264 V AC, 50/60 Hz
• 輸出電壓: 12 V DC
• 輸出電流:  3 A

記憶體

•  內部記憶體: 64 MB

顯示

•  類型:  2.8吋LCD
•  格式:  128 x64 點陣
• 尺寸:  70.0(W)x50.0(H)x5.8(T)mm
•  顯示區域:  63.95(W) x 31,65(H)mm

體積及重量

• 體積(L x W x D): 223 mm x 98 mm x 46 mm
• 重量: 0,5 kg

保固

• 3年

適用標準

• 安裝/過電壓等級: category II
• 汙染: degree II
• 安全: LVD 2014/35/EU(CE Confirm)EN 61010-1
• EMC: 指令2014/30/EU (CE Confirm)
• 標準 EN 61326-1:2006
• CAN/CSA-C22.2 No.61010-1,2^nd 版,含附錄

• Handheld and lightweight device
• Battery resistance measurement range: 0 - 5 Ω
• Voltage measurement range: ± 60 V
• Quickly records and stores internal resistance, float voltage, and inter-cell connection resistance.
• Auto range mode for automatic detection of resistance range.
• Support tool during capacity test for cell voltage measurement.
• Detailed test results analysis using DV-B Win software.

Application:

• The list of the instrument’s application includes:
• Quick verification of stationary lead acid batteries’ state of health and battery trending analysis.
• Simultaneous measurement of battery internal resistance and voltage (U+R mode).
• Measurement of intercell connection resistance for verification of battery inter-cell connections.
• Serve as a support tool for cell voltage measurement during the capacity testing.

DV-B Win Software:

• All results can be presented in multiple forms, such as table forms and scan and/or line graphs, for an easier cell trending and results analysis.
• In order to perform detailed comparisons and analysis of measured data, user defined limits for battery internal resistance and voltage, as well as cell temperature, are displayed in the scan graph view along with measured results.
• An alarm notification is provided by DV-Win, when detecting cells with resistance, voltage or temperature levels out of pre-defined limits.A test report of collected data can be generated and user customized for a comprehensive assessment of battery’s state of health.
• Numerical and graphical results may be exported from DV-B Win in selectable formats such as Excel spreadsheet, PDF, Word or Rich Text Format. Additionally, importing other types of data formats (.jpeg, .png, .doc) into standardized DV-B Win report is provided as well.

Mains Power Supply

Battery

• Type 2 Cells – 2900 mAh Li-Ion
• Voltage 7,4 V
•  Charge time 6 hours

AC Adapter

• Input voltage: 90 to 264 V AC, 50/60 Hz
• Output voltage 12 V DC
• Output current 3 A

Memory

•  Internal flash memory: 64 Mbit

Real time clock

• Precision: ±5 seconds per month
• Calendar: 100 year with leap year detection
• Time retention: 10+ years (battery removed)

• Temperature: -10 °C to +45 °C / 14 °F to +113 °F.
• Maximum relative humidity 95 % for Temperatures up to 31 °C, decreasing Linearly to 40 % relative humidity at 55 °C.

Dimensions and Weight

• Dimensions (L x W x D): 223 mm x 98 mm x 46 mm; 8.77 in x 3.85 in x 1.81 in.
•  Weight: 0,5 kg / 1.1 lbs

Warranty

• Three years

Applicable Standards

• Installation/overvoltage: category II
• Pollution: degree 2
• Safety: LVD 2014/35/EU (CE Confirm), EN 61010-1
• EMC: Directive 2014/30/EU (CE Confirm), Standard EN 61326-1:2006
• CAN/CSA-C22.2 No. 61010-1, 2nd edition, including Amendment.
