Electrothermal > Melting Point Apparatus
09-Melting-Point-Apparatus-1_PQ

IA9000 Series Melting Point Apparatus

IA9000 Series Melting Point Apparatus 型號：IA9000 Series Melting Point Apparatus

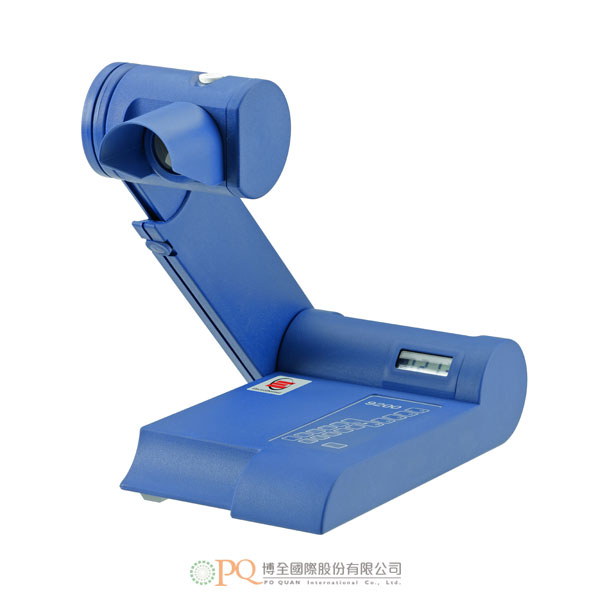

The updated and improved IA9000 series Digital Melting Point Apparatus offers an easy way to measure the melting points of samples without sacrificing accuracy; the temperature resolution is within 0.1°C. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8X magnification. The melting point apparatus has a membrane keypad with easy-to-use menus.
As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space. The IA9200 and IA9300 melting point apparatus models offer the option of storing 500 to 1000 melting point determinations and can be connected to a printer.
Each IA9000 series model comes supplied with a pack of 100 capillary tubes.
加入洽詢
產品特點 產品規格 Features Specifications
  • The updated and improved IA9000 series Digital Melting Point Apparatus offers an easy way to measure the melting points of samples without sacrificing accuracy; the temperature resolution is within 0.1°C. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8X magnification. The melting point apparatus has a membrane keypad with easy-to-use menus.

    As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space. The IA9200 and IA9300 melting point apparatus models offer the option of storing 500 to 1000 melting point determinations and can be connected to a printer.

    Each IA9000 series model comes supplied with a pack of 100 capillary tubes.


    Performance

    • Membrane keypad with simple menus for intuitive use
    • Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample
    • Digital microprocessor with ±0.1°C resolution provides fast warm-up and accurate temperature control
    • Samples in 3 capillary tubes may be viewed simultaneously.

    Safety and convenience

    • 3 Audible beeps indicate that the oven temperature is stable and ready for sample
    • Adjustable arm with viewing magnifier can be folded away into the unit
    • Adjustable object lens for sharp focus
    • Rotating viewing head and safety eye piece to protect against glare and hot zone
    • Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
    • Units can be calibrated by the user on their site or by the manufacturer/service organisation. If calibrated by the user, a calibration kit is required
    • Improved calibration procedure using a calibration key
  • IA9000 Series Model IA9100 IA9200 IA9300
    32-bit Processor + + +
    Accommodates 3 capillary tubes up to 2mm OD (storage for 100 pack) + + +
    Tube Guide removal for cleaning and use of cold finger + + +
    40mm dia. lens (magnification 8X) removable and with adjustable focus + + +
    Oven temperature range ambient to 400 °C + + +
    Temperature resolution ± 0.1 °C + + +
    Accuracy ± 0.5°C @ 20°C linearly to ± 1.0°C @ 350°C + + +
    13-key membrane keypad + + +
    Cooling rate choice + + +
    Choice of ramp rate of 1.0 °Cminute & 10 °Cminute + - +
    Choice of ramp rates of 0.2 - 10 °Cminute - + (default 0.2 °C minute) + (default 1.0 °C minute)
    Fast ramp rate of 10 °Cminute + + +
    White LED illuminated oven + + +
    Lithium cell button battery for memory, clock back-up - + +
    Date & time facility - + +
    PC output facility - + +
    Printer output facility - + +
    USB output to flash drive - + +
    Display (two rows of characters with backlit LCD) + + +
    4 x 1 Melt memory capacity + + -
    3 x 2 Melt memory capacity - - +
    Batch memory capacity of 500 melts - - +
    Batch memory capacity of 1000 melts - + -
    RS232C Serial port for printer - + +
    Dimensions (D x W x H) 35.5 x 20 x 8cm 35.5 x 20 x 8cm 35.5 x 20 x 8cm
    Shipping weight 2.5kg 2.5kg 2.5kg
  • The updated and improved IA9000 series Digital Melting Point Apparatus offers an easy way to measure the melting points of samples without sacrificing accuracy; the temperature resolution is within 0.1°C. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8X magnification. The melting point apparatus has a membrane keypad with easy-to-use menus.

    As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space. The IA9200 and IA9300 melting point apparatus models offer the option of storing 500 to 1000 melting point determinations and can be connected to a printer.

    Each IA9000 series model comes supplied with a pack of 100 capillary tubes.


    Performance

    • Membrane keypad with simple menus for intuitive use
    • Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample
    • Digital microprocessor with ±0.1°C resolution provides fast warm-up and accurate temperature control
    • Samples in 3 capillary tubes may be viewed simultaneously.

    Safety and convenience

    • 3 Audible beeps indicate that the oven temperature is stable and ready for sample
    • Adjustable arm with viewing magnifier can be folded away into the unit
    • Adjustable object lens for sharp focus
    • Rotating viewing head and safety eye piece to protect against glare and hot zone
    • Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
    • Units can be calibrated by the user on their site or by the manufacturer/service organisation. If calibrated by the user, a calibration kit is required
    • Improved calibration procedure using a calibration key
  • IA9000 Series Model IA9100 IA9200 IA9300
    32-bit Processor + + +
    Accommodates 3 capillary tubes up to 2mm OD (storage for 100 pack) + + +
    Tube Guide removal for cleaning and use of cold finger + + +
    40mm dia. lens (magnification 8X) removable and with adjustable focus + + +
    Oven temperature range ambient to 400 °C + + +
    Temperature resolution ± 0.1 °C + + +
    Accuracy ± 0.5°C @ 20°C linearly to ± 1.0°C @ 350°C + + +
    13-key membrane keypad + + +
    Cooling rate choice + + +
    Choice of ramp rate of 1.0 °Cminute & 10 °Cminute + - +
    Choice of ramp rates of 0.2 - 10 °Cminute - + (default 0.2 °C minute) + (default 1.0 °C minute)
    Fast ramp rate of 10 °Cminute + + +
    White LED illuminated oven + + +
    Lithium cell button battery for memory, clock back-up - + +
    Date & time facility - + +
    PC output facility - + +
    Printer output facility - + +
    USB output to flash drive - + +
    Display (two rows of characters with backlit LCD) + + +
    4 x 1 Melt memory capacity + + -
    3 x 2 Melt memory capacity - - +
    Batch memory capacity of 500 melts - - +
    Batch memory capacity of 1000 melts - + -
    RS232C Serial port for printer - + +
    Dimensions (D x W x H) 35.5 x 20 x 8cm 35.5 x 20 x 8cm 35.5 x 20 x 8cm
    Shipping weight 2.5kg 2.5kg 2.5kg
